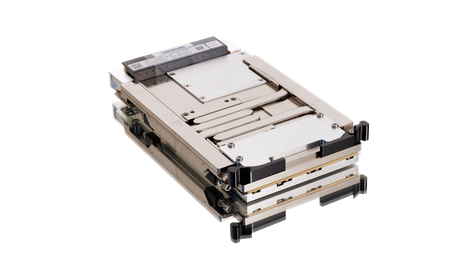

VX307C
Rugged 3U VPX IO-Intensive Server Board
- Intel® Xeon® D-1700/1800 SoCs – up to 10 cores / 20 threads with AI, DSP, and crypto acceleration.
- I/O-Intensive profile with PCIe Gen4 and 100Gb Ethernet.
- Secure by Design – TPM 2.0, Kontron SEC-Line.
- Air- and conduction-cooled variants.
- Aligned with SOSA™ technical standard.
Produktinformationen
High-bandwidth embedded server for mission-critical applications.
The Kontron VX307C is a rugged 3U VPX I/O-Intensive computing board built on the Intel® Xeon® D-1700/1800 (Ice Lake-D) platform. Combining server-class performance, unmatched I/O bandwidth, and military-grade ruggedization, the VX307C is ideally suited as a rugged embedded server for defense, aerospace, and high-performance industrial systems.
It delivers 100Gb Ethernet, PCIe Gen4, and rich connectivity, making it the data hub for modern SOSA™-aligned HPEC architectures.
Technische Daten
| Processor | 8 and 10-Core™ Xeon® D-170 /1800 SoC running at 2.0 GHz |
|---|---|
| Cache | 15MByte or 20MByte |
| DRAM DDR4 | Up to 64 GByte DDR4 memory with ECC |
| Backplanes | Slot Profile: SLT3-PAY-1F1F2U1TU1T1U1T- 14.2.16 Module Profile: MOD3-PAY-1F1F2U1TU1T1U1T-16.2.15-4 |
| I/O Features | 100Gb Ethernet Data Plane port x4 PCIe Gen4 Expansion Plane Dual 10GBASE-KR + 1000BASE-T ports Control Planes Maintenance Port on RS232 or LVCMOS levels x1 PCIe Gen3 / SATAIII for storage DP++ 1.4 Graphic port USB2.0 ports USB3.0 ports Dual serial lines GPIOs XMCIOs Dual SMB/IPMB, JTAG, Power Supplies |
