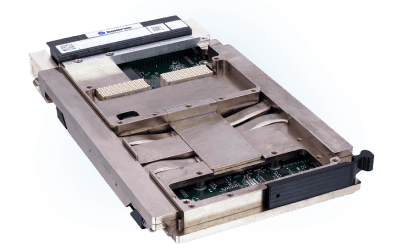

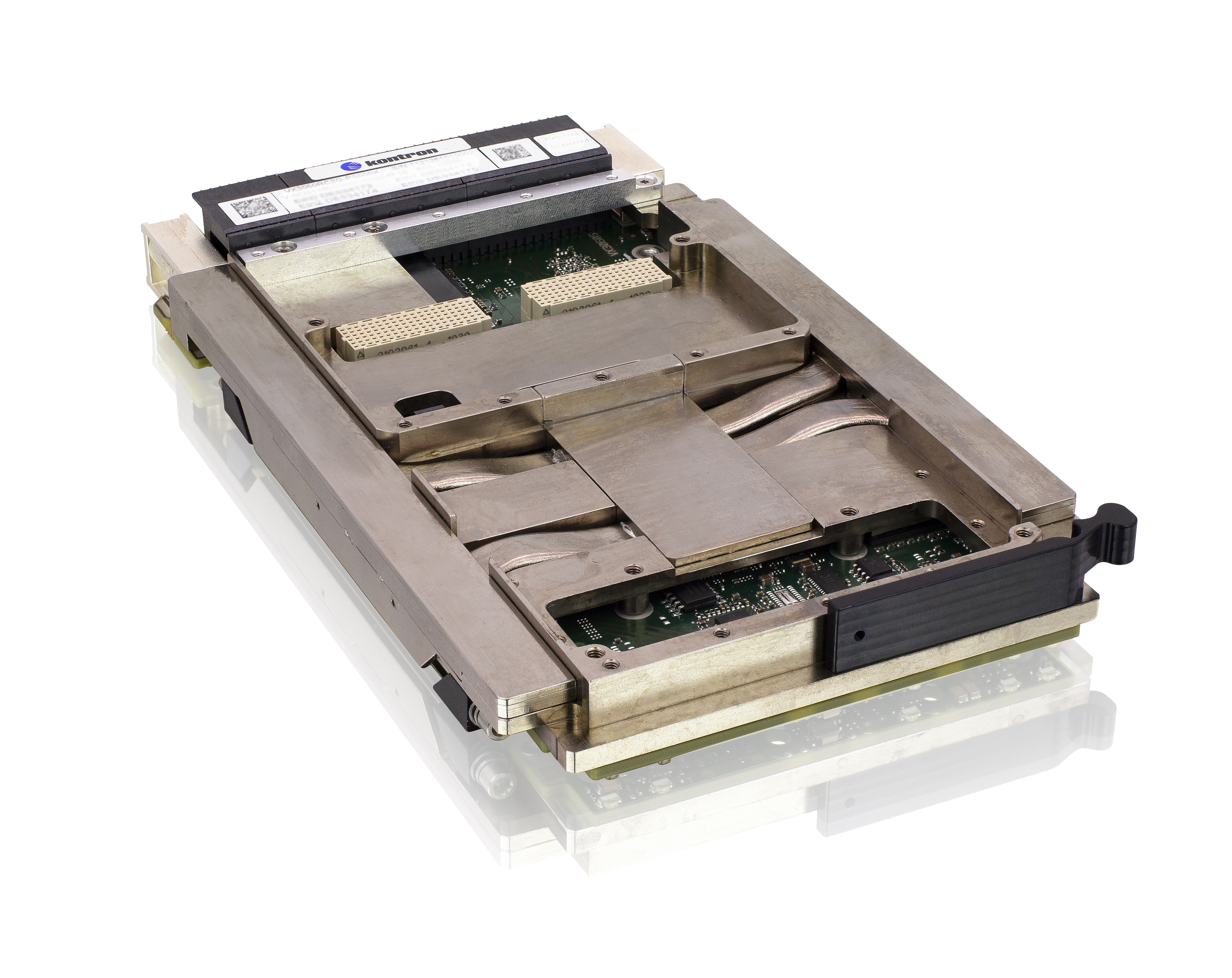

VX3060
11th Generation Intel Core Processor 3U VPX SBC
Spezifikationen
- 11th Gen Intel® Core™ processor for AI*, CVGIP*, DSP* workloads
- 12-28 W Quad Core™ processor, Enhanced AI, AVX-512, 32 GByte w ECC
- 8k Multi-Head display from Gen12 / 96 EUs high End GPU
- Versatile I/O: USB-C, M.2 sockets, XMC option
- 1G/10G Ethernet Multi-port with 2.5G, 25G and TSN capability
- 15-year availability, PBIT, CBIT, SEC-Line support
The new 10nm gen Intel® System On Chip (SOC) SKUs delivers an unmatched feature set in a low power envelope enabling a solid foundation for almost all rugged computing use cases.
The VX3060 has selected CPU SKU guaranteed for 10 years operations with 100 per cent active usage profiles. Quad core units with specialized instructions for Artificial Intelligence (VNNI) and Doubled Signal Processing performance (AVX512) will be available.
The integrated Intel Xe graphics engine also adds 96 EU execution units (EU) computing power accessible to software written for GPGPUs (via OpenCL) and offers all the features expected from a modern PC platform by demanding applications.
Across its multiple ruggedisation levels, the VX3060 comes in two main variants. For compatibility with the previous generation architectures, one variant has three rear ETH BaseT, while the other features a powerful dual 10GBaseKR. The VX3060 pin assignment is compatible with VITA65 OpenVPX Profiles SLT3-PAY-2F2U-14.2.3, SLT3-PAY-1F1F2U-14.2.4, SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16.
Eigenschaften
| Processor | Intel® Core™ i7-1185GRE, 4-core/8 threads, configurable TDP from 12W to 28W |
| Cache | 12Mbyte |
| DRAM DDR4 | 16 Gbyte dual channel DDR4 SDRAM with IECC |
| Expansion Slots | XMC |
| Backplanes | SLT3-PAY-2F2U-14.2.3 & SLT3-PAY-1F1F2U-14.2.4 Slots Profiles MOD3-PAY-2F2U-16.2.3-11 Module Profile |
| I/O Features | Data Plane : x4 PCIe Gen3 Expansion Plane : x4 PCIe Gen3 Control planes: Dual 10GBASE-KR + one 1000BASE-T ports SATAIII for storage DP++ 1.2 Graphic port Three USB2.0 ports USB3.0 port Dual serial lines 2 GPIOs XMCIOs Dual SMB/IPMB, JTAG, Power Supplies |
| Cooling | VITA 47 Standard air-cooled (0/+55°C) VITA 47 Conduction-Cooled CC-4 (-40/+85°C) |
| Storage | 256GB SATA SSD boot storage (M.2 slot) |
| Frontpanel | 2x 10/100/1000Base-T(X) on RJ-45 connectors 1x RS-232 UART interfaces on iX connector 1x USB-C port 1x DP++ port on mDP connector One Reset button Bicolor LEDS |
Downloads
Datasheets
VX3060 datasheet
[ vx3060_datasheet.pdf, 2.67 MB, Jan.23.2023 ]
Manuals
VX3060 User's Guide
[eingeschränkter Download]
[ d293977_v1-0_vx3060-user-s-guide.pdf, 6.58 MB, Nov.04.2024 ]
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]
