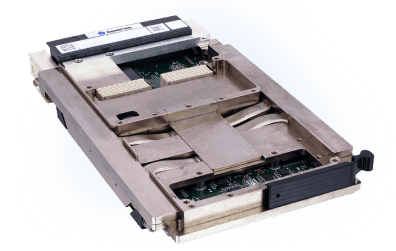

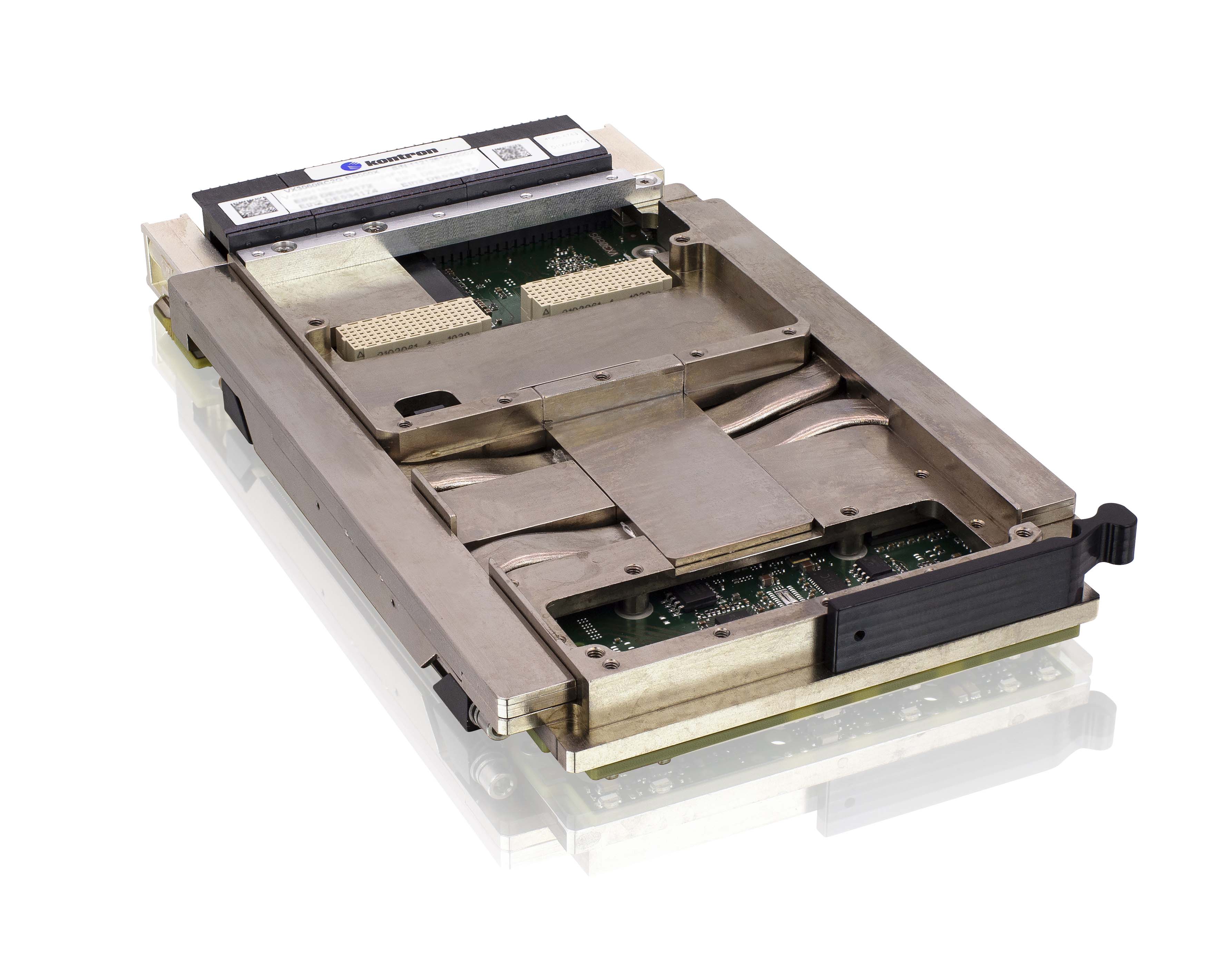

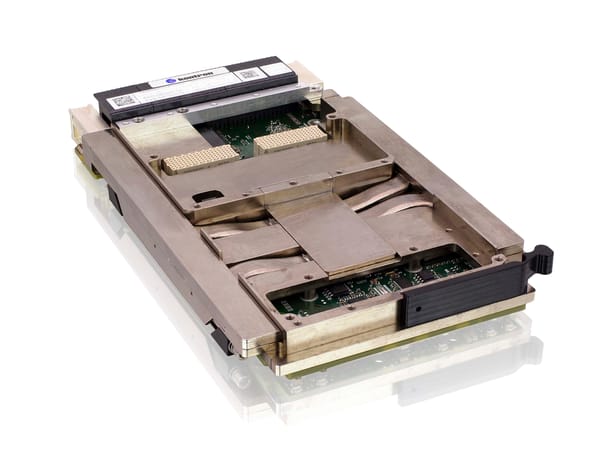

VX3060-S2

SOSA-aligned 11th Generation Intel Core Processor 3U VPX SBC

11th Gen Intel® Core™ processor for AI (Artificial Intelligence), CVGIP (Computer Vision, Graphics, and Image Processing), DSP (Digital Signal Processing) workloads
12-28 W Quad Core™ processor, Enhanced AI, AVX-512, 32 GByte w ECC
8k Multi-Head display from Gen12 / 96 EUs high End GPU
Versatile I/O: USB-C, M.2 sockets, XMC option
1G/10G Ethernet Multi-port with 2.5G, 25G and TSN capability

Produkt anfragen Datenblatt herunterladen

Developed in alignment with the SOSA™ Technical Standard.

The new 10nm gen Intel® System On Chip (SOC) SKUs delivers an unmatched feature set in a low power envelope enabling a solid foundation for almost all rugged computing use cases.

The VX3060-S2 has selected CPU SKU guaranteed for 10 years operations with 100 per cent active usage profiles. Quad core units with specialized instructions for Artificial Intelligence (VNNI) and Doubled Signal Processing performance (AVX512) will be available.

The integrated Intel Xe graphics engine also adds 96 EU execution units (EU) computing power accessible to software written for GPGPUs (via OpenCL) and offers all the features expected from a modern PC platform by demanding applications.

Across its multiple ruggedisation levels, the VX3060-S2 comes in two main variants. For compatibility with the previous generation architectures, one variant has three rear ETH BaseT, while the other features a powerful dual 10GBaseKR. The VX3060-S2 pin assignment is compatible with VITA65 OpenVPX Profiles SLT3-PAY-2F2U-14.2.3, SLT3-PAY-1F1F2U-14.2.4, SLT3-PAY-1F1U-14.2.10, and can be considered for system architectures developed in alignment with the SOSA™ Technical Standard.

View SOSA-aligned products

Technischer Support

Technische Daten

Processor	Intel® Core™ i7-1185GRE, 4-core/8 threads, configurable TDP from 12W to 28W
Cache	12Mbyte
DRAM DDR4	32 Gbyte dual channel DDR4 SDRAM with IECC
Expansion Slots	XMC
Backplanes	SLT3-PAY-1F1F2U1TU1T1U1T-14.2.16 Slot Profile M OD3-PAY-1F1F2U1TU1T1U1T-16.2.15-2 Module Profile
