VX30101
High-End 3U VPX Computing Board
Produktinformationen

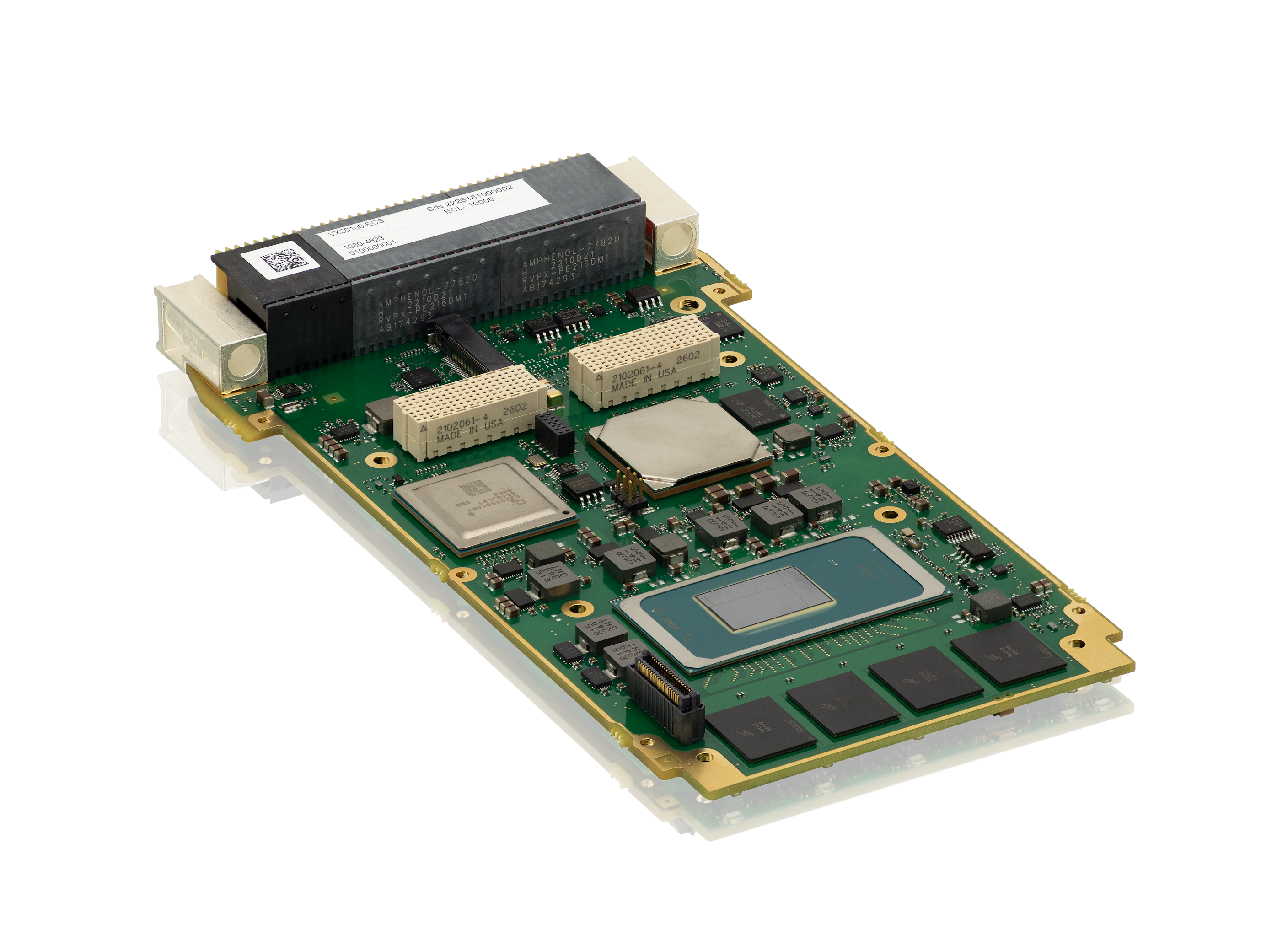

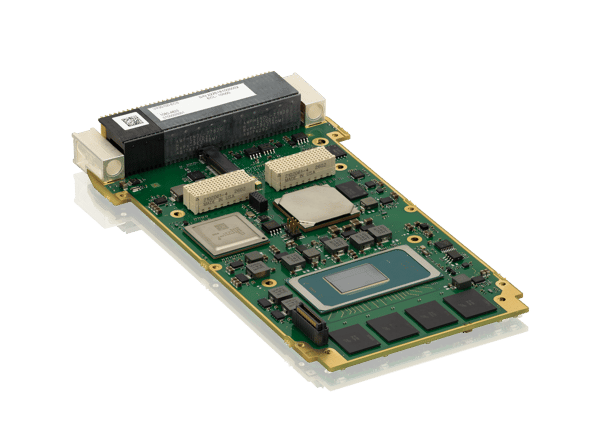

The Kontron VX30101 is a high-end 3U VPX computing board designed for AI-enabled mission computing, sensor fusion and rugged embedded server applications. Based on the latest Intel® Core™ Ultra Series 3 platform with integrated AI acceleration, the VX30101 combines high computing density, deterministic high-speed networking and rugged deployment capabilities in a single-slot SOSA-aligned architecture.
Designed for demanding defense and aerospace embedded systems, the VX30101 supports up to 16 CPU cores, integrated NPU acceleration, up to 64 GB LPDDR5x memory with ECC, and high-bandwidth Ethernet fabrics up to 100GbE. Available in both air-cooled and rugged conduction-cooled variants, it provides an ideal platform for tactical mission computing, electronic warfare, radar processing, ISR systems and next-generation edge AI applications.
Technische Daten
| CPU | Intel Core Ultra Series 3, up to 16 cores depending on selected SKU, integrated NPU and Xe graphics, power class TBD by final configuration |
|---|---|
| Memory | 32-64 GByte dual-channel LPDDR5x SDRAM with in-band ECC |
| Management & Control | IPMI controller for VITA46.11 Tier3 support and out-of-band system management. |
| TPM | TPM 2.0 device |
| Storage | Up to 1 TByte NVMe SSD option |
