VPX336 Datasheet
1.01 MB | 24. Juni 2026

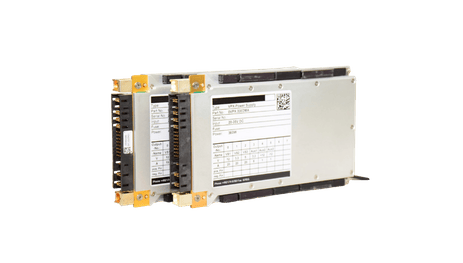

VPX336
360W 28V / 48V DC Input 3U VITA 62 VPX Power Supply Card
- Conduction-cooled COTS VPX power supply, VITA 62.0 compliant
- Fits standard VPX chassis per VITA 46.0 (3U x 4HP)
- High-efficiency single-stage converter with wide input voltage range
- Flexible power distribution across VS1, VS2, and VS3 due to oversized converters
- MIL-STD 461, 704, 1275 tested; I²C and USB monitoring via onboard microcontroller
Produktinformationen
VPX336 power supplies are conduction-cooled, commercial off-the-shelf (COTS) single-stage converters built to the ANSI/VITA 62.0 standard. Designed to fit standard VPX chassis as specified by VITA 46.0, they deliver high overall efficiency and support a wide input voltage range through advanced switching power technology. Each main converter is deliberately oversized to allow multiple configuration options – either prioritizing 12V output or distributing power more evenly across all three main output rails.
The VPX336 series is compliant with key military standards (MIL-STD-461, 704, 1275) and features an embedded microprocessor for real-time monitoring and control via I²C or USB. Mechanically, the unit measures 3U x 4HP and includes all keying, connector, and alignment elements in line with VITA 62.
Technische Daten
| Power & Efficiency | High efficiency up to 90%, 87% at full load of 360W Wide input voltage range: 15 V to 40 V DC (nominal 28V) Optional 48V DC input (33.5–49V) Reverse polarity protection |
|---|---|
| Protection Features | Voltage sense controlled Over Voltage, Under Voltage, Over Current, Over Temperature protection |
| Management & Control | Microprocessor controlled
I²C bus communication for monitoring (status, input and 6 output voltages and currents, temperatures) Micro-USB connector for communication and firmware updates |
| Design & Components | No liquid / wet / aluminum electrolytic capacitors |
| Mechanical Dimensions | 100.0 mm x 168.5 mm x 19.56 mm (3.94 inch x 6.63 inch x 0.77 inch) weight 0.60 kg (1.3 lbs) |
Downloads
Handbücher
General Safety Instruction
582.34 KB | 6. Juli 2026
Varianten
Varianten hier auswählen
VPX336DMA
VPXAL336-DMA21040
360W 3U VITA 62 VPX power supply Standard Version, MIL-STD-461, -704, -1275 compliant, with standard acrylic conformal coating
Input: 28V DC
VS1 [+12V]: 15A
VS2 [+3.3V]: 20A
VS3 [+5V]: 30A
Vaux1 [+12V]: 1A
Vaux2 [-12V]: 1A
Vaux3 [+3.3V]: 6A
VPX336DMB
VPXAL336-DMB21040
360W 3U VITA 62 VPX power supply – Max 12V Version, MIL-STD-461, -704, -1275 compliant, with acrylic conformal coating [Input] 28V DC
Input 28V DC
VS1 [+12V] 20A
VS2 [+3.3V] 20A
VS3 [+5V] 20A
Vaux1 [+12V] 1A
Vaux2 [-12V] 1A
Vaux3 [+3.3V] 6A
VPX336DMC
VPXAL336-DMC21040
360W VITA 62 VPX power supply – Max 5V Version, MIL-STD-461, -704, -1275 compliant, with acrylic conformal coating
[Input] 28V DC
VS1 [+12V] 10A
VS2 [+3.3V] 10A
VS3 [+5V] 40A
Vaux1 [+12V] 1A
Vaux2 [-12V] 1A
Vaux3 [+3.3V] 6A
