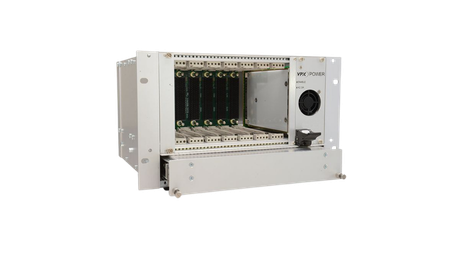

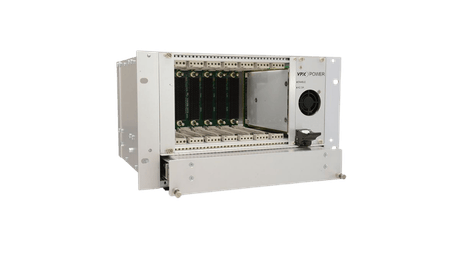

VPX Chassis 4U/50HP 7 Slots
The Kontron Hartmann Wiener VPX Chassis 4U/50HP with 7 slots is a 3U OpenVPX rack system featuring a 600 W plug-in VPX power supply and removable 1U fan tray, ensuring reliable performance for demanding use.
- Mechanics: 4U × 50 HP, IEEE 1101.1 / 1101.10 compliant
- Slots: 7 × 3U OpenVPX, profile BKP3-CEN07-15.2.3-4 (6 payloads + 1 integrated switch) for PCIe Gen3 & 10GbE with rear I/O
- Power Supply: 600 W VPX plug-in, input 90–264 VAC, 47–63 Hz
- Output Voltages: 12 V/28 A, 3.3 V/19 A, 5 V/25 A, ±12 V_AUX/1 A, 3.3 V_AUX/6 A
- Cooling: Removable 1U fan tray with 2 × 92 mm (12 V DC) fans, airflow bottom-to-top
Produktinformationen
The Kontron Hartmann Wiener VPX Chassis 4U/50HP with 7 slots provides an intelligent, practical packaging solution for high-performance 3U OpenVPX systems. Designed for rack-mount installation, the enclosure is outfitted with a 600 W plug-in VPX power supply and a 1U removable bottom-mounted fan tray, ensuring dependable operation for demanding applications.
This 7-slot 4U VPX chassis from Kontron Hartmann Wiener is built for modularity, high bandwidth, and rugged durability. The system supports PCIe Gen3 and 10GbE via an OpenVPX backplane profile BKP3-CEN07-15.2.3-4 and features rear I/O integration for flexible system design. With a 600 W plug-in VPX power supply and a removable fan tray, it facilitates efficient serviceability and cooling. Enhanced EMC shielding and full compliance with military and railway standards make it suitable for demanding applications in defence, transportation and industrial environments.
Technische Daten
| Compliance | IEEE 1101.1 and 1101.10/11 IEC 60297-3-101, -102, -103 MIL-STD-810F (shock & vibration) |
|---|---|
| Power & Efficiency | 600 W AC/DC pluggable VPX power supply Wide input range: 85–264 VAC, 47–63 Hz Output rails: 12 V/28 A, 5 V/25 A, 3.3 V/19 A, ±12 V AUX/1 A, 3.3 V AUX/6 A Typical efficiency: 86% |
| Protection | Power entry module with switch, fuse, and filter Enhanced EMC shielding |
| Control & Monitoring | Integrated switch slot for data and control plane Fully assembled and pre-wired |
| Design & Components | OpenVPX 3U 7-slot backplane, profile BKP3-CEN07-15.2.3-4 Centralized configuration hosting 6 payloads + 1 switch Rear I/O support for high-speed interconnects |
