VPX Chassis 4U84HP 8 Slots Datasheet
1.24 MB | 26. März 2026
VPX Chassis 4U/84HP 8 Slots

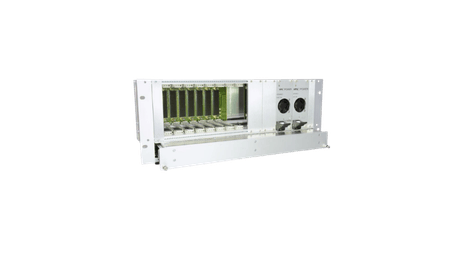

The Kontron Hartmann Wiener VPX Chassis 4U/84HP with 8 slots is a wide 3U OpenVPX rack system featuring a 600 W ATX or VPX power supply and a removable 1U fan tray for rugged, flexible operation.
- Mechanics: 4U × 84 HP, IEEE 1101.1 / 1101.10/11 compliant
- Slots: 8 × 3U OpenVPX (profile BKP3-CEN08-15.2.15-4, hosting 6 payloads + 2 integrated switches) for PCIe Gen3 with rear I/O
- Power Supply: 600 W ATX (or alternatively 600 W plug-in VPX) with input 90–264 VAC, 47–63 Hz
- Cooling: Removable 1U fan tray (bottom mounted) with 3 × 120 mm fans (12 V, 120 CFM, 48 dB(A)), airflow bottom-to-top
- Compliance: IEC 60297-3-101/-102/-103; MIL-STD-810F (shock & vibration); EN 50155 railway standard
Produktinformationen
The Kontron Hartmann Wiener VPX Chassis 4U/84HP with 8 slots provides a wide-format rack-mount enclosure suited for high-performance 3U OpenVPX systems. With an 84 HP front width, the system accommodates either a 600 W ATX or 600 W plug-in VPX power supply and features a 1U removable bottom-mount fan tray, offering rugged design and flexible configuration.
This 8-slot 4U VPX chassis from Kontron Hartmann Wiener is engineered for scalability, high bandwidth and rugged applications. The system supports high-speed PCIe Gen3 communication through an OpenVPX backplane (profile BKP3-CEN08-15.2.15-4) with rear I/O integration. The choice of a 600 W ATX or plug-in VPX power supply paired with a service-friendly removable fan tray provides both power capacity and maintainability. Enhanced EMC shielding and certified compliance with military and railway standards ensure reliability in demanding defense, transportation and industrial environments.
Technische Daten
| Compliance | IEEE 1101.1 and 1101.10/11 IEC 60297-3-101, -102, -103 MIL-STD-810F (vibration & shock) EN 50155 / EN 1373 railway standard |
|---|---|
| Power & Efficiency | Dual 600 W VPX AC/DC pluggable power supplies Input range: 90–264 VAC (47–63 Hz) Outputs: 12 V/28 A, 5 V/25 A, 3.3 V/19 A, ±12 V AUX/1 A, 3.3 V AUX/6 A Efficiency up to 86 % |
| Protection | Power entry module with switch, fuse and filter (rear side) Enhanced EMC shielding |
| Control & Monitoring | Fully assembled and wired for ready-to-use operation Integrated management and protection circuits |
| Design & Components | Centralized 3U 8-slot OpenVPX backplane (BKP3-CEN08-15.2.15-4) 6 payload slots + 2 switch slots (data & control plane) PCIe Gen3 interconnect with rear I/O |
