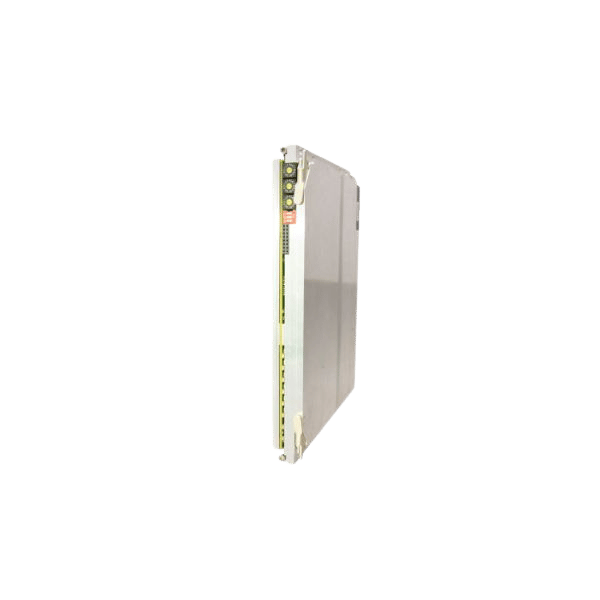

VPX 6U Load Board
The VPX 6U Load Board is a test card designed to simulate resistive loads on VPX systems, enabling comprehensive electrical and thermal testing.
- Configurable resistive load on +5 V, +12 V, +12 V AUX, –12 V AUX, and +3.3 V AUX rails
- Air-cooled with heatsink or conduction-cooled variants
- Automatic shutdown at ~120 °C
- Voltage and temperature sensing via front-panel X1 connector
- Automatic reactivation after cooling
Produktinformationen
It includes automatic thermal protection that powers down the board if temperatures exceed 120 °C and automatically restarts after cooling.
The VPX 6U Load Board provides precise resistive load simulation across multiple voltage rails in a 6U, 5HP or 6HP form factor. It enables engineers to test power supply capacity and thermal behavior under realistic conditions. The board features automatic over-temperature shutdown and voltage/temperature sensing for detailed system analysis.
Technische Daten
| Features | Form Factor: 6U Slot Pitch: 5HP (25.4 mm) air-cooled / 6HP conduction-cooled Function: Simulates resistive loads on VPX systems (electrical and thermal) Cooling: Air-cooled with heatsink or conduction-cooled Permissible Current Loads: • +5 V: 0 A to 15 A in 1 A steps • +12 V: 0 A to 10 A in 0.66 A steps • +12 V AUX: 0.66 A (ON/OFF) • –12 V AUX: 0.66 A (ON/OFF) • +3.3 V AUX: 1 A (ON/OFF) Control Voltage: 5 V required Voltage & Temperature Measurement: • Voltage measurement points near P0 and P1 connectors • 4 temperature sensing points: front bottom, front top, rear bottom, rear top • Measurement points accessible via front-panel X1 connector Thermal Protection: Automatic shut-off if temperature exceeds 120 °C ± 5 K; re-energizes after cooling Part Number: LXH0000992 |
|---|
