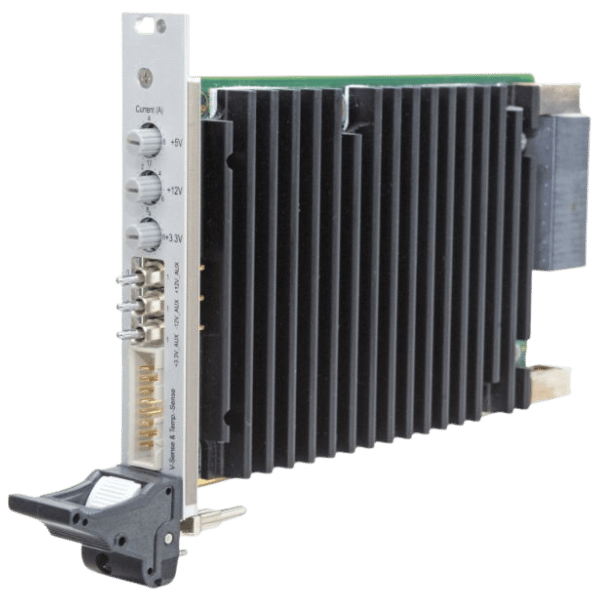

VPX 3U Load Board
The VPX 3U Load Board is a test card designed to simulate resistive loads on VPX systems, enabling comprehensive electrical and thermal testing.
- Configurable resistive load on +12 V and +5 V Standby rails
- Air-cooled with heatsink
- Automatic shutdown at ~120 °C
- Voltage and temperature sensing via front-panel connectors
- Automatic reactivation after cooling
Produktinformationen
It includes automatic thermal protection that powers down the board if temperatures exceed 120 °C and automatically restarts after cooling.
The VPX 3U Load Board provides precise resistive load simulation across multiple voltage rails in a 3U, 5HP form factor. It enables engineers to test power supply capacity and thermal behavior under realistic conditions. The board features automatic over-temperature shutdown and voltage/temperature sensing for detailed system analysis..
Technische Daten
| Features | Form Factor: 3U Slot Pitch: 5HP (25.4 mm) Function: Simulates resistive loads on VPX systems (electrical and thermal) Cooling: Air-cooled (with heatsink) Permissible Current Loads: • +12 V: 0 A to 7.5 A in 0.5 A steps • +5 V Standby: 0.2 A, ON/OFF (3x) Control Voltage: 5 V required Voltage & Temperature Measurement: • 4 PTC resistors (front bottom and top) for temperature sensing • Front-panel 2 × 8-pin header (X1) for voltage and temperature sense lines • Optional DVM (digital voltmeter) plug-on board Thermal Protection: Automatic shut-off if temperature exceeds 120 °C ± 5 K; re-energizes after cooling Part Number: LXH0000991 |
|---|
