VM6103 Neu

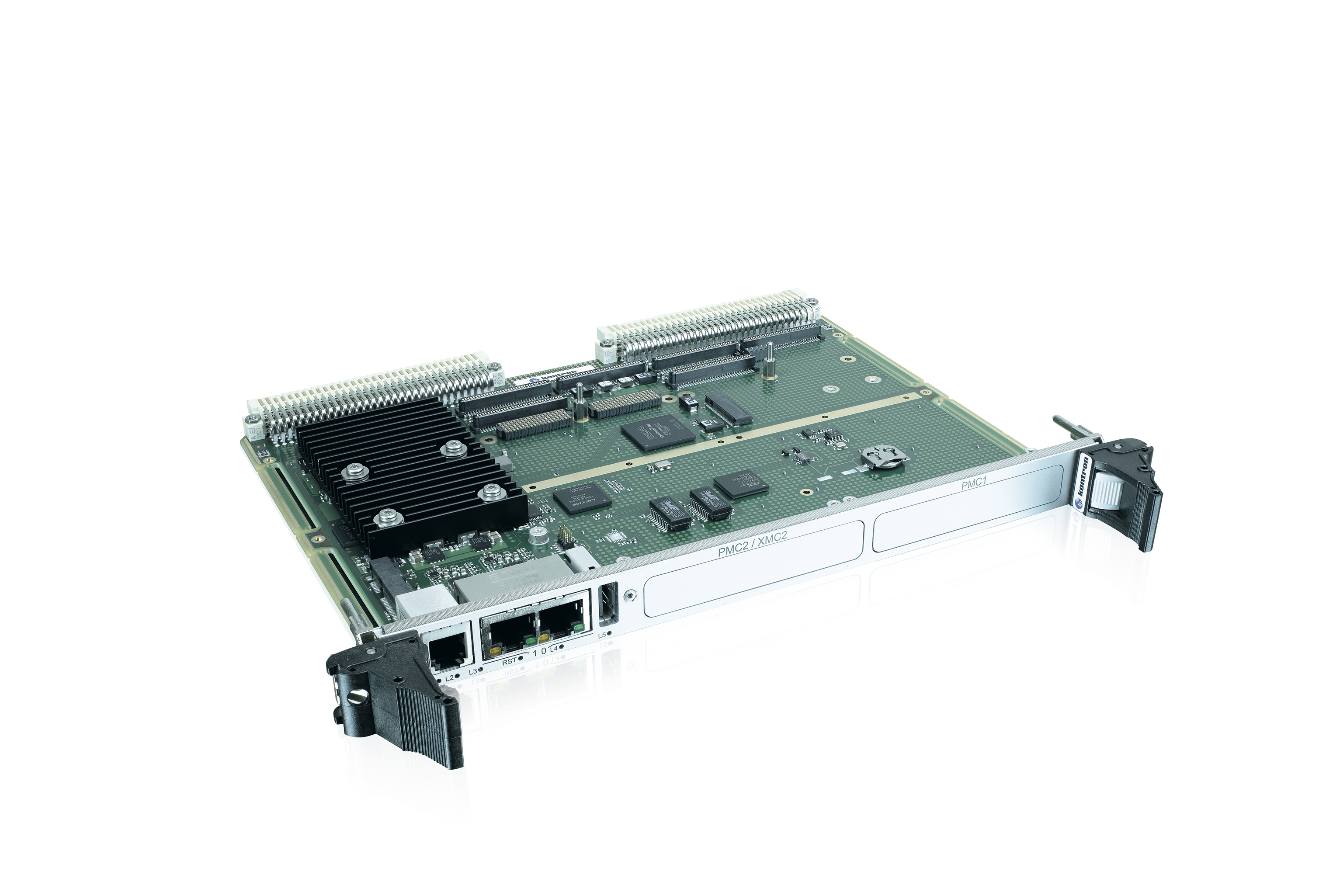

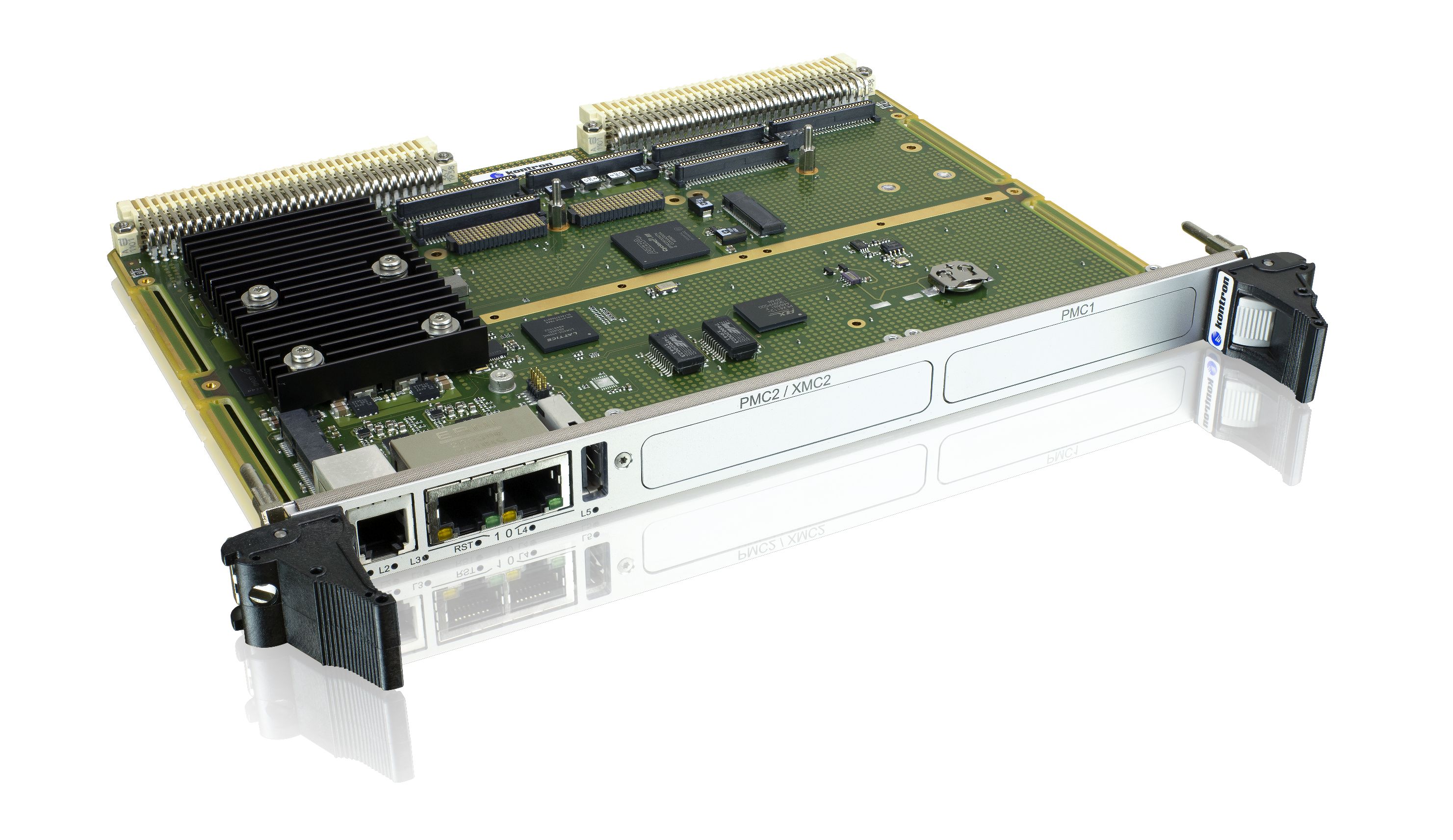

6U VME ARM Low Power Dissipation Computer
Mouseover Zoom loading...
  • Dual-Core or Quad-Core 1 GHz / 1.6 GHz 64-bit ARM based Processor
  • < 10 W Low Power Dissipation, in Dual-Core 1 GHz
  • High versatility with of I/O expansions: Dual PMC, XMC, Mini-PCIe slots
  • High capacity of storage: 32 GB eMMC and M.2 SATA III SSD Socket
  • Long Term Supply and Support

The VM6103 is the first member of a full range of High-Performance, Low Power dissipation Kontron range of products featuring QorIQ ‘Layerscape’ multicore ARM processors.

The VM6103 Connectivity Engine provides a flexible off-the-shelf method for quickly developing and deploying cost-conscious high-performance with low power dissipation tailored systems.

The low power consumption of the powerful Dual-Core 64‑bit ARM Cortex-A53 makes the VM6103 well-suited to critical environments such as industrial, transportation and defense applications.

The VM6103 features a highly scalable computing performance as it is available either with a dual-core or quad-core ARM processor clocked at a frequency from 1 GHz up to 1.6 GHz.

The outstanding flexibility of the design of VM6103 provides numerous I/O expansion slots and the processing upgrade using pinout compatible 4-core processors.


Processor Dual-Core or Quad-Core 1 GHz / 1.6 GHz 64-bit ARM based Processor
CPU Clock From 1 GHz up to 1.6 GHz



VM6103 Datasheet
[ vm6103_20210202_datasheet.pdf, 1.57 MB, Feb.02.2021 ]

VME-VPX shortform catalog
[ shortform-vme-vpx-05-2018.pdf, 2.27 MB, May.27.2021 ]


VM6103 User Guide [eingeschränkter Download]
[ cadtb38-2e-vm6103-ug_v2.pdf, 5.41 MB, Mar.30.2020 ]

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]


Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ support-brochure-03-2018.pdf, 894.71 KB, Jun.28.2018 ]
