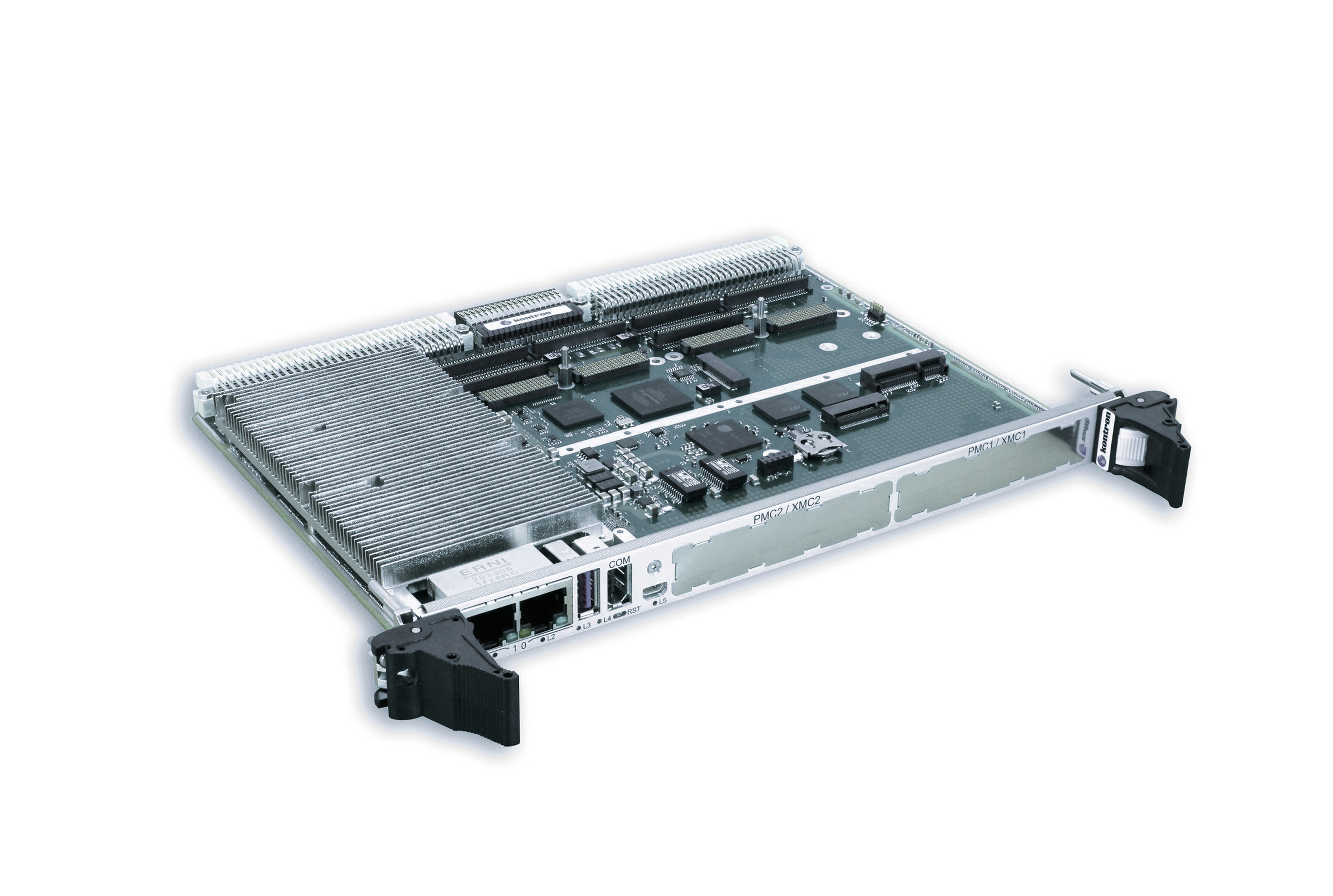

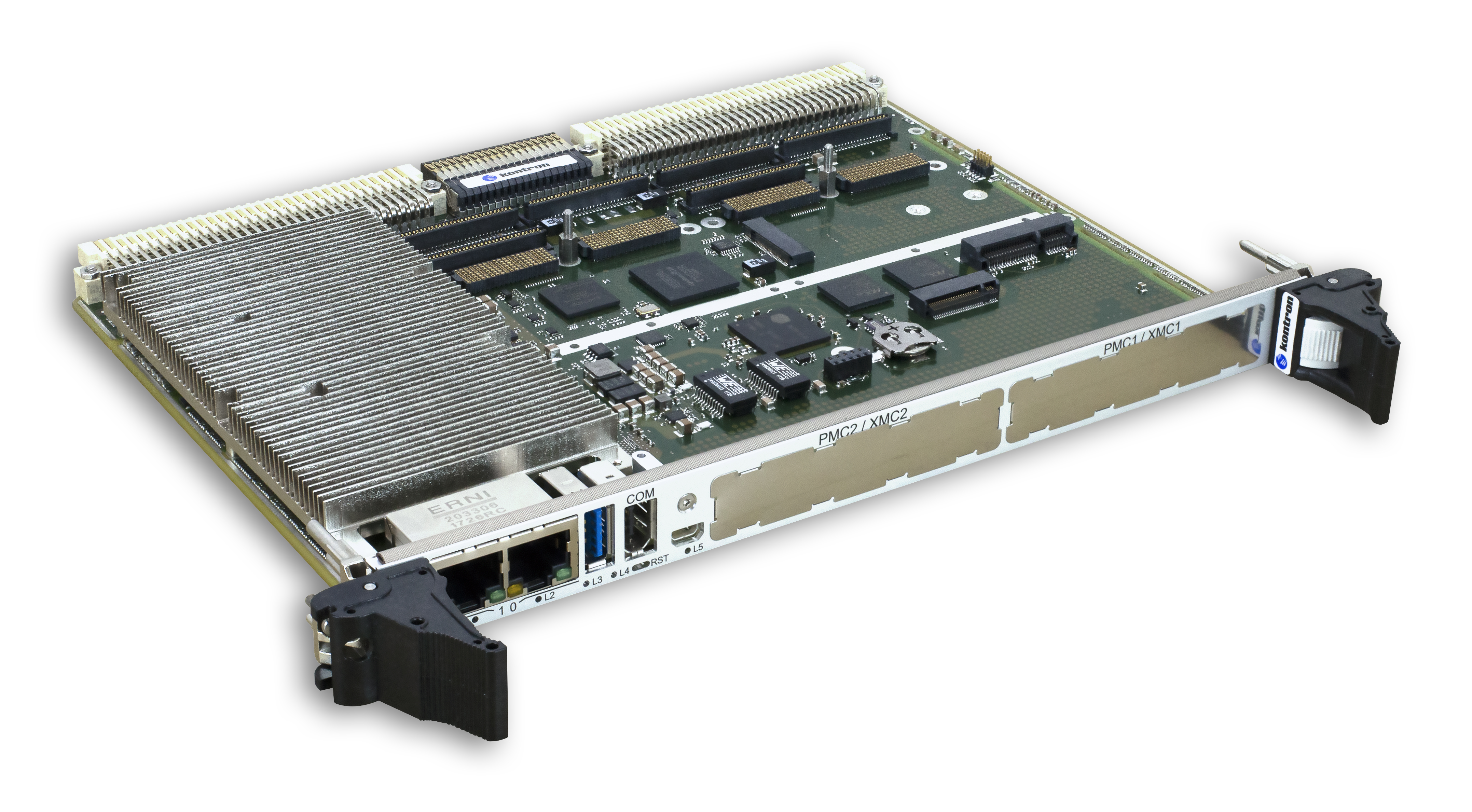

VM6062
6U VME Server-Class Blade Computer
Mouseover Zoom loading...
Spezifikationen
- 2-Core 2.2 GHz Intel® Xeon® Processor D-1500 Product Family
- Up to 32 GB DDR4 on-board soldered memory with ECC
- Dual 1 Gb Ethernet, USB 3.0, HDMI, COM ports on front
- Dual PMC/XMC, Dual M.2 and mPCIe sockets
- Extended Life Cycle and Silicon Reliability
The VM6062 is a low power 2-Core/4-thread Intel® D1508 version of a pin compatible 6U VME SBC products range featuring a processor from the Server Class Intel® Xeon® Processor D-1500 family.
The VM6062 is a unique fully fledge I/O Blade Server PC as it features on the front panel HDMI, USB 3.0, COM and Dual Gigabit Ethernet ports aside the PMC/XMC slots.
Eigenschaften
| Processor | 2-Core/4-thread Intel® D1508 Member of the Server Class Intel® Xeon® Processor D-1500 family 2.2 GHz Processor Base Frequency 2.6 GHz Maximum Turbo Frequency |
| Cache | 3 MByte Cache |
| DRAM DDR4 | 8 GByte DDR4 dual channel memory with ECC Expandable to 32 GByte |
| Expansion Slots | Dual PMC and Dual XMC mPCIE slot Dual M.2 slot |
| I/O Features | 2x USB 2.0 2x 10/100/1000BASE-T Ethernet switchable to front 2x SATA III HDMI port exclusive with PCI Express® x1 or x4 without HDMI, PCI-Express 2.0 |
| Cooling | VITA 47 Standard air-cooled (0/+55°C) VITA 47 Conduction-Cooled CC-4 (-40/+85°C) |
| Storage |
| Frontpanel | 1x USB 3.0 2x 10/100/1000BASE-T Ethernet on RJ-45 connectors HDMI port Serial lines on IEEE1394 connector Reset push button |
Downloads
Datasheets
VM6062 Datasheet
[ vm6062-datasheet-05-2018.pdf, 6.52 MB, Oct.16.2018 ]
VME-VPX shortform catalog
[ shortform-vme-vpx.pdf, 889.98 KB, Mar.20.2025 ]
Manuals
VM606x Users Guide
[eingeschränkter Download]
[ d206640-1-1_vm606x-ug.pdf, 16.22 MB, Apr.20.2023 ]
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Use Cases
VM6062 6U VME SBC and its carrier board
[ uc_onepager_defense-vm6062.pdf, 2.6 MB, Apr.21.2023 ]
Services
Kontron Modular Computers S.A.S. Service and Support Offering
This data sheet contains a detailed description of all the support and service offering from Kontron Modular Computers S.A.S, including the Long Term Supply (LTS) Services.
[ long-term-supply-offering.pdf, 2.35 MB, Feb.25.2025 ]
Weitere Downloads
Alle weiteren Downloads (Treiber, Downloads etc.) finden Sie auf Kontrons Customer Section
