PXIe Controller Extension

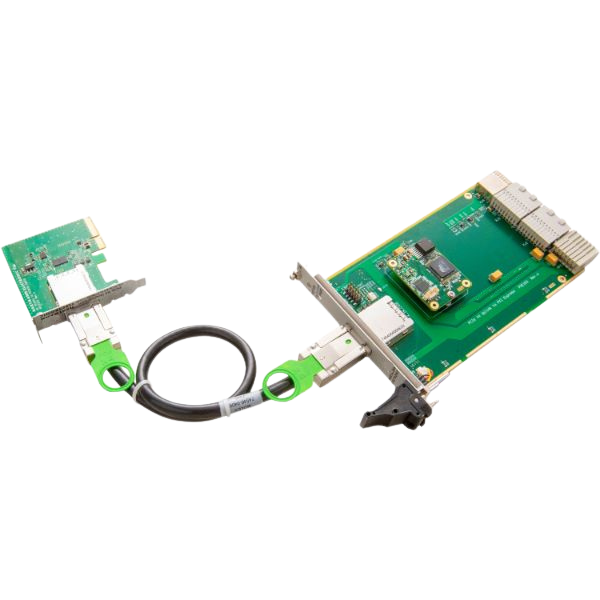

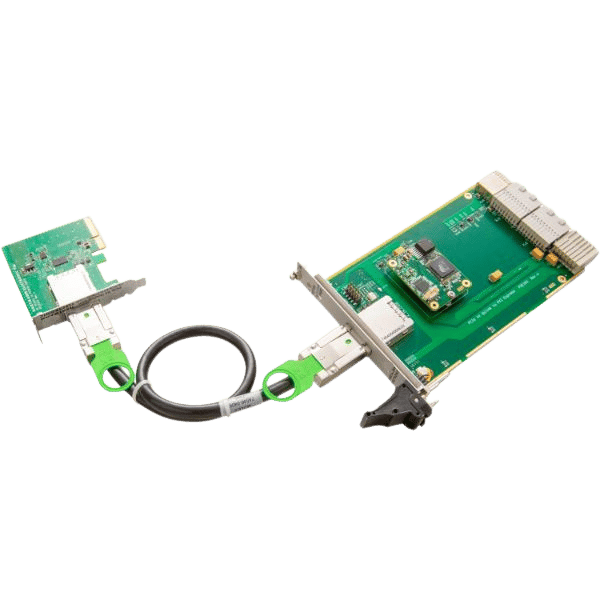

The PXIe Controller Extension is a compact 3U/4HP module designed to enable remote control of PXIe chassis via a PCIe interface.

Spezifikationen

Enables remote control of PXIe chassis from desktop PCs
No additional software drivers required
Compact 3U/4HP form factor
Supports PCIe Gen 2 ×4 interface
Compatible with PXIe and CompactPCI Express systems
Low power consumption (5 W)
Available with 1m or 3m PCIe ×4 cables

Datenblatt herunterladen

The PXIe Controller Extension is a compact 3U/4HP module designed to enable remote control of PXIe chassis via a PCIe interface. It allows standard desktop PCs to manage PXIe systems without additional software drivers.

The PXIe Controller Extension facilitates the integration of PXIe systems with standard desktop PCs, enabling remote control and management without the need for specialized software. Its compact design ensures efficient use of space, making it suitable for applications where space is limited.

Eigenschaften

Features

Form Factor: 3U × 4HP PXIe module

Interface: PCIe Gen 2 ×4 uplink to PXIe system slot

Power Consumption: 5 W (+5V/0.8A)

Cable: Standard PCIe ×4 cable (1m or 3m) compliant with PCIe external cable specification 2.0

Driver Support: No additional drivers required; uses standard PCI-to-PCI bridge drivers

Compatibility: Compatible with PXIe chassis implementing a PXIe system slot 4-link configuration; also compatible with CompactPCI Express systems

Part Numbers:
- 1H00007140: PXIe Controller Extension - PCIe ×4 uplink to PXIe Express
- 1H00005304: PXIe Controller Extension - PC Card PCIe ×4 to PCIe ×4 Low Profile
- 1H00005305: PXIe Controller Extension - PC Card PCIe ×4 to PCIe ×4 High Profile
- F006.02170: PXIe Controller Extension - PCIe ×4 cable length 1 m
- F006.02180: PXIe Controller Extension - PCIe ×4 cable length 3 m"

Downloads

Datasheets

PXIe Controller Extension Datasheet
[ hum_pxe100a.pdf, 4.73 MB, Dec.19.2025 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
