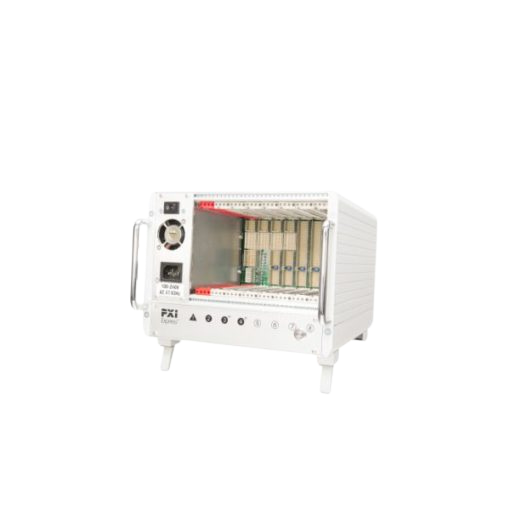

PXIe 4U/ 42HP 8 Slots
Spezifikationen
- "Form Factor: 4U height, 42HP width
- Slots: 8 slots according to PXI-5 PXI Express Hardware Specification Rev. 1.1
- 1 system slot
- 1 PXI Express slot
- 2 PXI/PXIe full-hybrid peripheral slots
- 4 PXI legacy slots
- Backplane: 8-slot backplane supporting both PXI and PXIe modules
- Power Supply: 300W ATX
- Input: 90–264VAC, 47–63Hz
- Outputs: +12V / 24A, +3.3V / 17A, +5V / 18A, -12V / 0.3A
- Cooling: Internal fan tray with 2x 12V fans (bottom-to-top airflow)
- Mounting: Desktop orientation"
The PXIe 4U/42HP 8 Slots chassis is a compact desktop solution supporting both PXI Express (PXIe) and legacy PXI modules. It provides high bandwidth, flexibility, and mobility for test and measurement systems. The chassis is equipped with a 300W ATX power supply and an internal fan tray with two 12V fans for efficient cooling. Airflow is from bottom to top. Compliance with the PXI-5 specification (Rev. 1.1) ensures compatibility with a variety of PXI/PXIe modules.
The PXIe 4U/42HP 8 Slots chassis offers a versatile and reliable solution for test and measurement systems requiring both PXI and PXIe modules. Its hybrid slot configuration allows maximum flexibility in module selection. The robust cooling system and industrial standard compliance ensure reliable operation even under demanding environmental conditions.
Eigenschaften
| Features | Supports both PXI and PXIe modules PXI-5 specification (Rev. 1.1) compliant Hybrid slots for maximum module flexibility High cooling performance with internal fans and bottom-to-top airflow Compliant with relevant industrial, military, and railway standards Dimensions: Height: 4U Width: 42HP Depth: 278 mm Standards Compliance: IEEE 1101.1 and 1101.10/11 IEC 60297-3-101, -102, -103 Military: MIL-STD-810F: 514.5C-15 (vibration), 514.5 C-1 (vibration), 515.5-10 (shock) Railway: EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration)" |
Downloads
Datasheets
PXIe 4U 42HP 8 Slots Datasheet
[ lmh0000960-pxie-4u-42hp-8sl-300w-desktop.pdf, 142.59 KB, Nov.04.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
