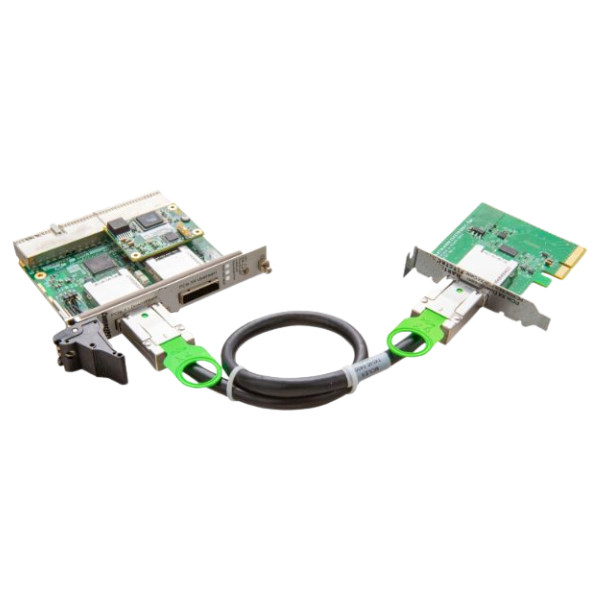

PCIe to cPCI Bridge

The PCIe to cPCI Bridge enables seamless communication between PCI Express (PCIe) devices and CompactPCI (cPCI) systems.
Spezifikationen
  • Seamless Integration: Allows modern PCIe devices to operate within cPCI systems.
  • Flexible Connectivity: Supports different cable lengths to accommodate various system configurations.
  • Standard Compliance: Meets industry standards for both PCIe and cPCI interfaces.
  • Hot-Swappable: Facilitates maintenance without system downtime.
Datenblatt herunterladen

This bridge facilitates the integration of modern PCIe-based components into legacy cPCI platforms, ensuring compatibility and extending the usability of existing systems.

The cPCI Serial 3U AC 300W power supply is designed to meet the power needs of CompactPCI Serial systems in industrial, military/aerospace, and communications applications. Its wide input voltage range and efficient power conversion ensure reliable operation in various environments. The support for hot-swap and redundancy features enhances system availability and fault tolerance.

Eigenschaften

Features Form Factor: 3U CompactPCI module

PCIe Side: PCIe x4

cPCI Side: 7-slot cPCI backplane

Voltage I/O: 3.3V

Cable Options: Available with 1m or 3m PCIe x4 cables

Part Numbers:
1H00007120: PCIe x4 to 7-slot cPCI Bridge
F006.02170: PCIe x4 cable, 1m
F006.02180: PCIe x4 cable, 3m

Downloads

Datasheets

PCIe to cPCI Bridge Datasheet
[ hum_pcie100a_rev-1-5.pdf, 4.95 MB, Dec.19.2025 ]

Manuals

General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Dec.16.2025 ]

Services

Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
