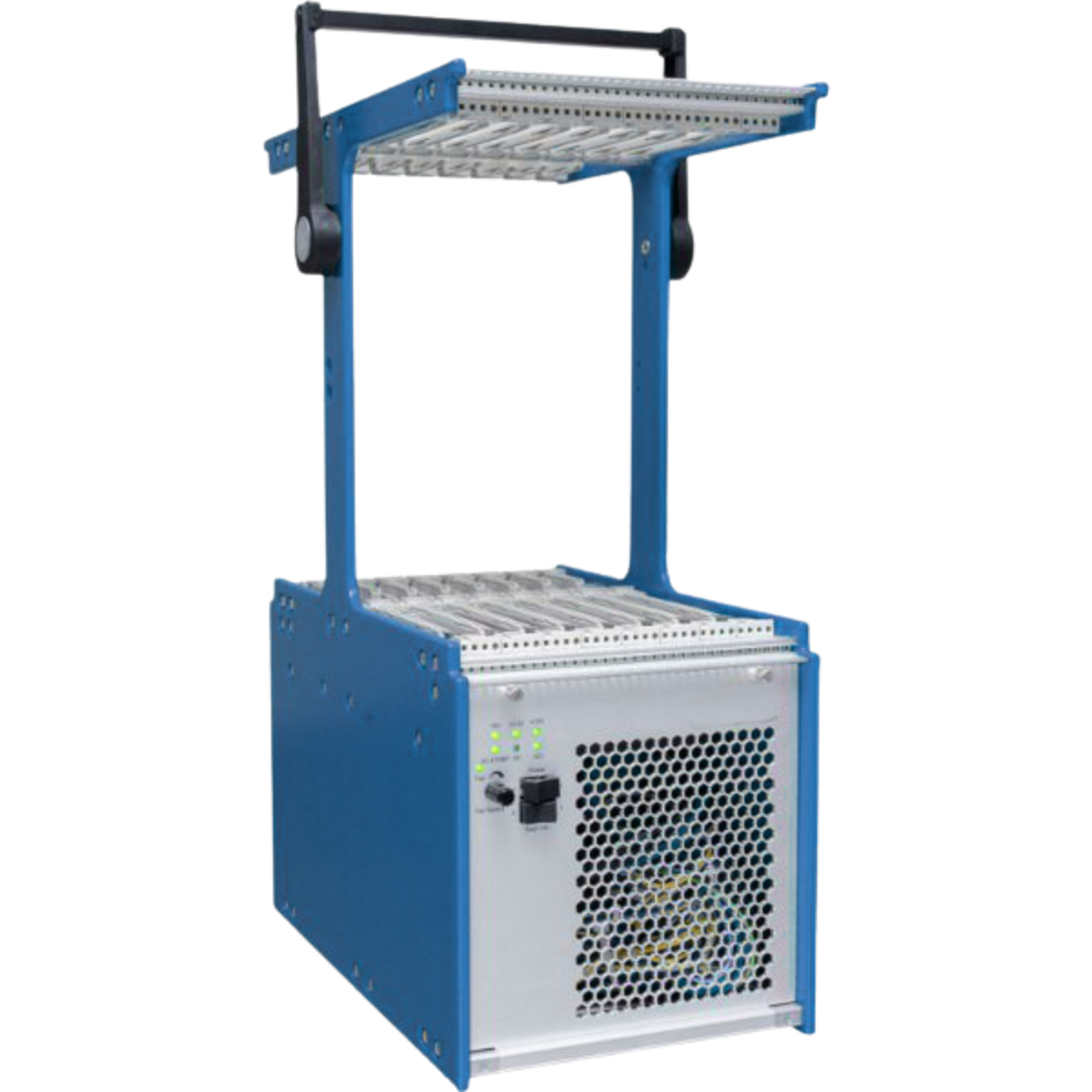

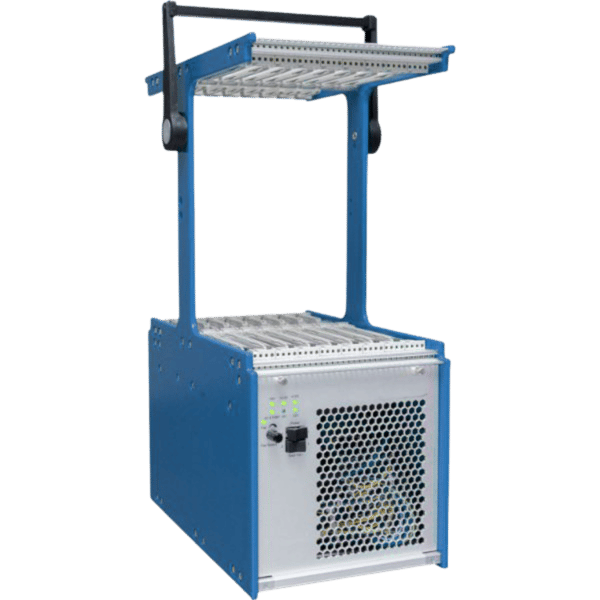

Open Frame 6U 34HP Chassis

The Open Frame 6U 34HP Chassis is a compact and versatile development platform with adjustable rear profiles, 3U/6U backplane support, and a 600 W ATX power supply for reliable performance across VITA and PICMG standards.

Spezifikationen

Form Factor: 6U height, 34HP width; overall dimensions 317 mm (H) × 34HP (W) × 302 mm (D).
Slots: Supports up to 6 slots and is compatible with both 3U and 6U backplanes.
Cooling System: Air-cooled with internal fan tray and bottom-to-top airflow.
Fans: One front fan (224 CFM, 64 dB(A), 3A) and two rear fans (39 CFM each, 34 dB(A), 0.23A each).
Power Supply: 600 W ATX type with wide input range of 90–264 VAC.
Output Rails: +12V / 28A, +3.3V / 19A, +5V / 25A, –12V / 0.3A.

Datenblatt herunterladen

The Open Frame 6U 34HP Chassis offers a compact, flexible, and robust platform for development and testing applications. Designed to support both 3U and 6U backplanes and compliant with VITA and PICMG standards, it allows easy adaptation to various module configurations. Movable rear profiles with up to 2.5 mm adjustment enable precise setup, while the efficient cooling system ensures reliable operation under demanding conditions. Its lightweight yet durable design, combined with a 600 W ATX power supply, provides stable performance and easy portability between laboratory and field environments.

Eigenschaften

Features

Mounting Orientation: Desktop

Standards Compliance:
IEEE 1101.1 and 1101.10/11
IEC 60297-3-101, -102, -103

Military Shipboard: MIL-STD-810F: 514.5C-15 (vibration)

Military Highway: MIL-STD-810F: 514.5 C-1 (vibration), 515.5-10 (shock)

Railway: EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration)"
