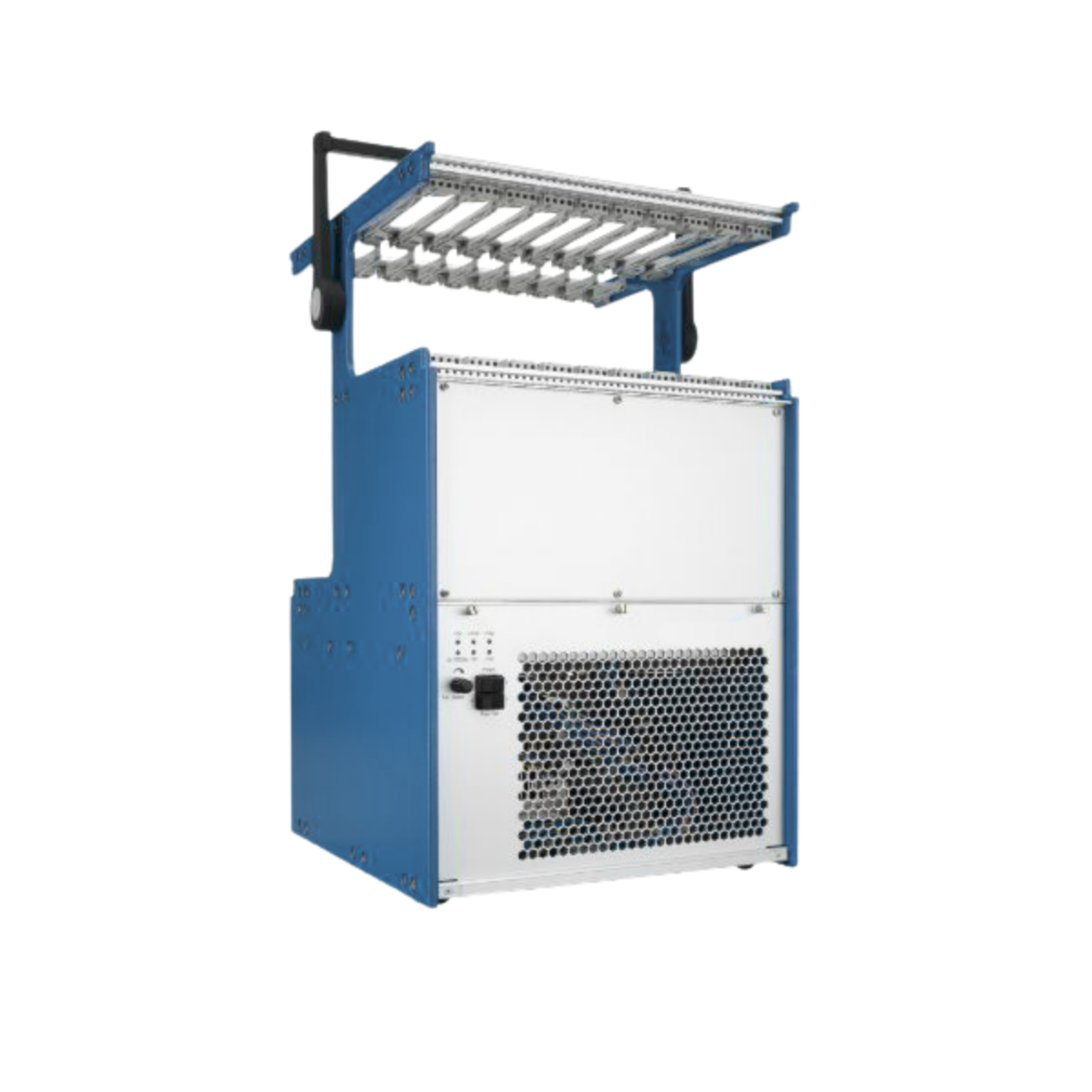

Open Frame 3U front / 6U rear 50HP
The Open Frame 3U Front / 6U Rear 50HP Chassis is a compact and versatile development platform with adjustable rear profiles, 3U/6U backplane support, and a 600 W ATX power supply for reliable performance across VITA and PICMG standards
- Form Factor: 3U front, 6U rear configuration with 50HP width; overall dimensions 450 mm (H) × 50HP (W) × 302 mm (D).
- Slots: Supports up to 12 slots and compatible with both 3U and 6U backplanes.
- Cooling System: Air-cooled design with internal fan tray and bottom-to-top airflow.
- Fans: Two front fans (224 CFM, 64 dB(A), 3A) and three rear fans (39 CFM each, 34 dB(A), 0.23A each).
- Power Supply: 600 W ATX unit with wide input range of 90–264 VAC.
Produktinformationen
The Open Frame 3U Front / 6U Rear 50HP Chassis offers a compact, flexible, and robust platform for development and testing applications. Designed for versatility, it supports both 3U and 6U backplanes and complies with VITA and PICMG standards, allowing easy adaptation to various module configurations. Movable rear profiles with up to 2.5 mm adjustment enable precise setup, while the efficient cooling system ensures stable operation under demanding conditions. Its lightweight yet durable construction, combined with a 600 W ATX power supply, provides reliable performance and easy portability between laboratory and field environments.
Technische Daten
| Features | Mounting Orientation: Desktop Standards Compliance: IEEE 1101.1 and 1101.10/11 IEC 60297-3-101, -102, -103 Military Shipboard: MIL-STD-810F: 514.5C-15 (vibration) Military Highway: MIL-STD-810F: 514.5 C-1 (vibration), 515.5-10 (shock) Railway: EN 50155-EN 1373 class 1 B, rolling stock (shock/vibration) Movable rear profiles for adjustable depth Support for 3U and 6U backplane options Air-cooled with internal fan tray Desktop mounting orientation Compliance with international standards |
|---|
