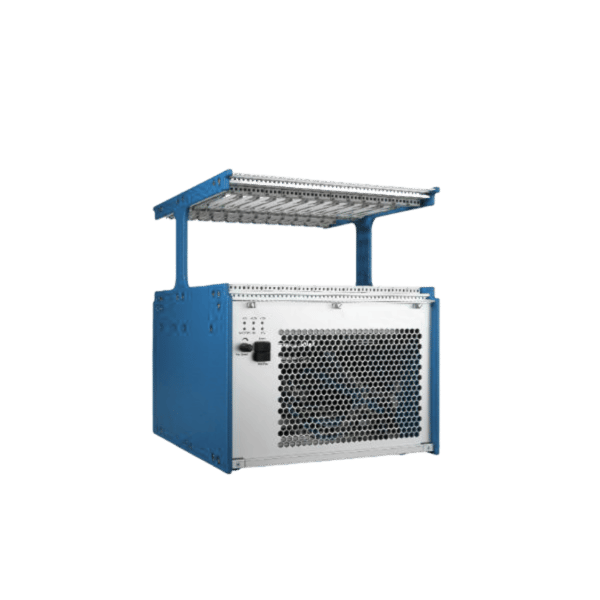

Open Frame 3U 50HP Chassis
The Open Frame 3U 50HP Chassis is a compact and versatile development platform featuring adjustable rear profiles, 3U/6U backplane support, a 600 W ATX power supply, and efficient cooling for reliable performance across VITA and PICMG standards.
Spezifikationen
- Form Factor: 3U height, 50HP width; overall dimensions 317 mm (H) × 50HP (W) × 302 mm (D).
- Slots: Supports up to 12 slots with 3U and 6U backplane compatibility.
- Cooling System: Air-cooled design with internal fan tray and bottom-to-top airflow.
- Fans: One front fan (224 CFM, 64 dB(A), 3A) and two rear fans (39 CFM each, 34 dB(A), 0.23A each).
- Power Supply: 600 W ATX type with wide input range of 90–264 VAC.
- Output Rails: +12V / 28A, +3.3V / 19A, +5V / 25A, –12V / 0.3A.
The Open Frame 3U 50HP Chassis offers a compact, flexible, and robust platform for development and testing applications. Designed for versatility, it supports both 3U and 6U backplanes and complies with VITA and PICMG standards, allowing easy adaptation to different module configurations.
Movable rear profiles with up to 2.5 mm adjustment enable precise setup, while the efficient cooling system and 600 W ATX power supply ensure stable and reliable performance. Its lightweight yet durable design provides excellent accessibility and portability between laboratory and field environments.
Eigenschaften
| Features | Movable rear profiles for adjustable depth Support for 3U and 6U backplane options Air-cooled with internal fan tray Desktop mounting orientation Compliance with international standards |
Downloads
Datasheets
Open Frame 3U 50HP Chassis Datasheet
[ lmh0000570-3u_6_open-frame-develpment-chassi-hartmann-electronic.pdf, 1.24 MB, Nov.03.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
