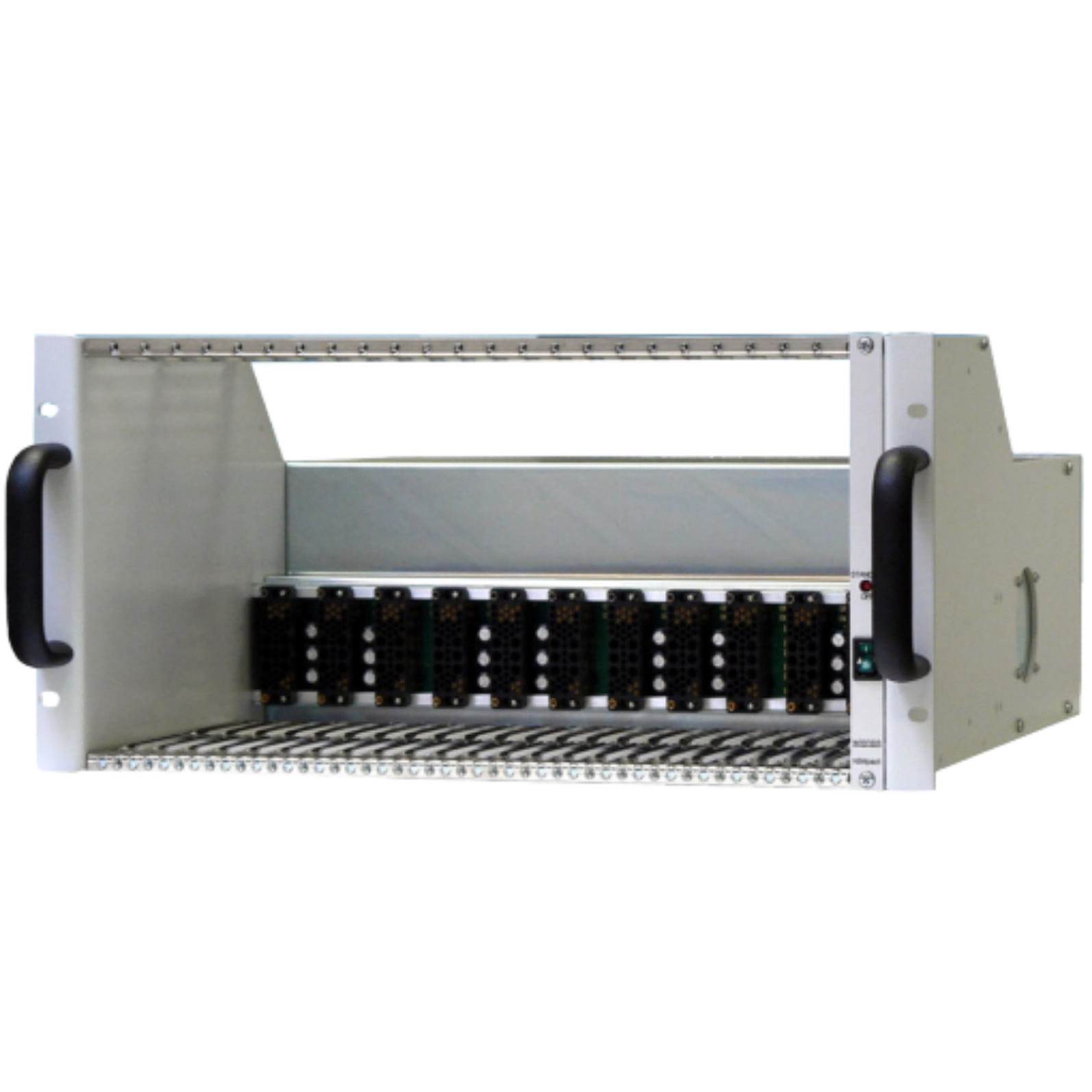

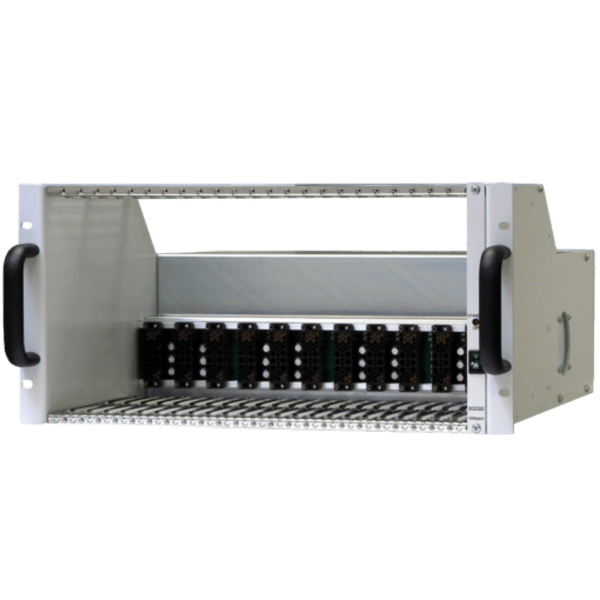

NIMpact 300 W
12-slot 19″ NIM Chassis with 300 W linear regulated power supply for high-power nuclear electronics applications.
Spezifikationen
- 300 W linear regulated power supply
- Outputs: ±6 V, ±12 V, ±24 V, optional 115 VAC
- 12 slots for NIM modules
- 5U height, 19″ rack-mount design
- Optional fan tray for improved cooling
- Low-noise performance for precision electronics
The NIMpact 300W is a full-size 19″ rack-mount Chassis with 12 slots and a robust 300 W linear regulated power supply. Designed for higher power demands, it provides stable outputs of ±6 V, ±12 V, ±24 V, and optional 115 VAC, making it ideal for laboratory and research environments where low-noise and high stability are essential. Fully compliant with the NIM standard, the NIMpact 300W offers reliable power distribution for analogue and digital measurement systems, including amplifiers, ADCs, and timing modules. An optional fan tray is available to enhance cooling in demanding applications.
Eigenschaften
| Features | Compliant with NIM standard (AEC report TID20893) 12-slot rack-mount design 300 W linear regulated power supply Multiple voltage outputs: ±6 V, ±12 V, ±24 V, optional 115 VAC Optional fan tray for improved thermal management Rugged 5U 19″ construction Low-noise operation for sensitive equipment |
Downloads
Datasheets
NIMpact 300 W Datasheet
[ nimpact-300w_kontron_datasheet.pdf, 326.57 KB, Aug.27.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Varianten
|
NIM_300_X |
|
12 Slots, ±6 V, ±12 V, ±24 V, 115 VAC, 300 W linear regulated PSU (optional fan tray available) |
