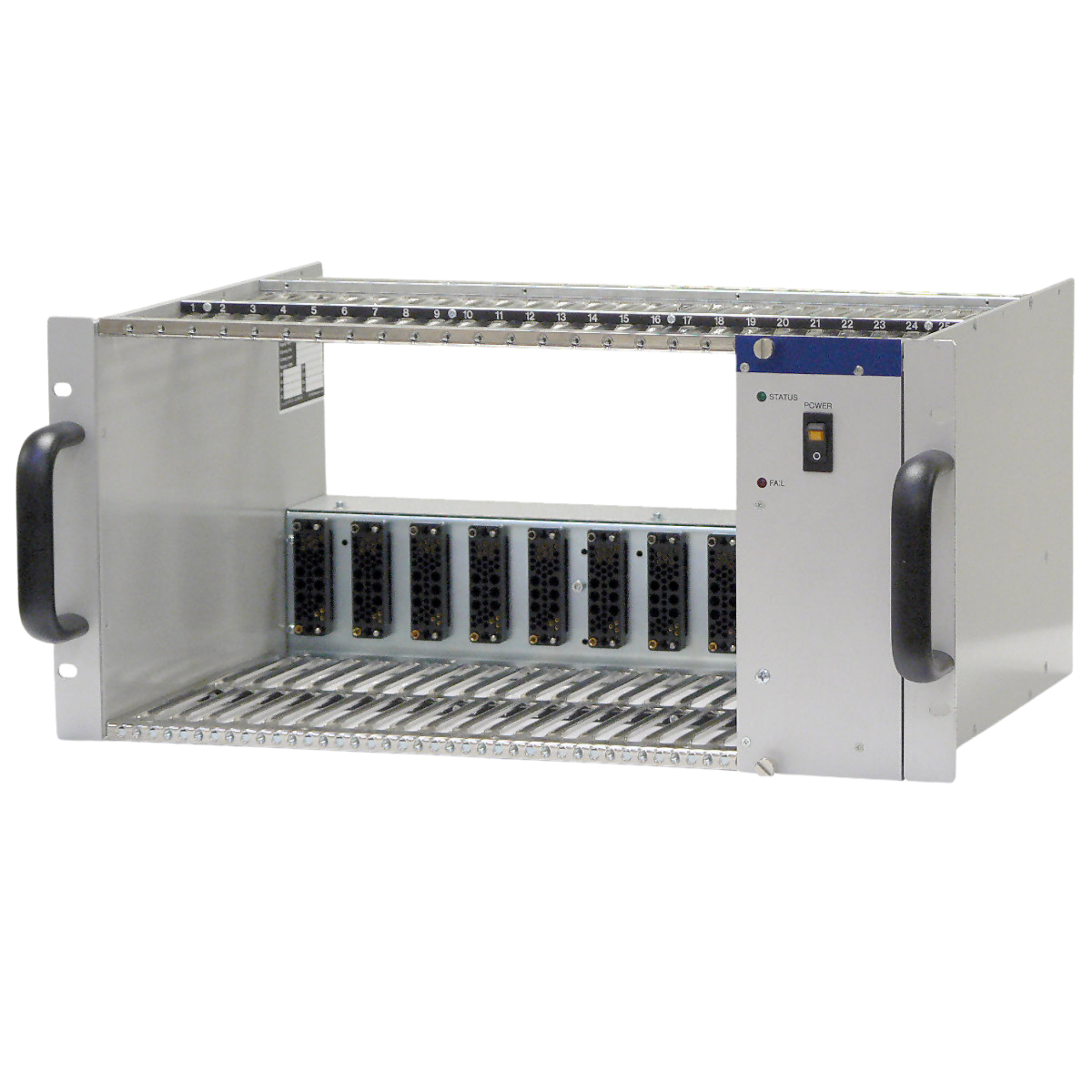

NIM Compact 150 W
Compact 12-slot 19″ NIM Chassis with 150 W linear regulated power supply for stable and low-noise performance in nuclear electronics applications.
Spezifikationen
- 150 W linear regulated UEP15 power supply
- Outputs: ±6 V (5 A), ±12 V (3 A), ±24 V (1.5 A), optional 115 VAC (0.25 A)
- 12 slots (10 usable for modules)
- 5U height, 19″ rack-mount design
- Overload and short-circuit protection
- Low-noise performance for precision measurement systems
The NIM Compact 150W is a full-size 19″ rack-mount Chassis with 12 slots (10 usable for modules) and a high-quality 150 W linear regulated power supply (UEP15). Built to the NIM “Nuclear Instrument Module” standard, it delivers stable, low-noise outputs for sensitive analogue and digital electronics, such as amplifiers, ADCs, and timing modules. Its compact 5U form factor and robust design make it ideal for research facilities and laboratories requiring reliable power distribution.
Eigenschaften
| Features | Compliant with NIM standard (AEC report TID20893) 12-slot rack-mount design (10 usable for modules) Linear regulated 150 W UEP15 power supply Multiple voltage outputs: ±6 V, ±12 V, ±24 V, optional 115 VAC Compact 5U height for optimized rack space usage Rugged steel chassis for long-term durability Portable configuration available in the NIM series" |
Downloads
Datasheets
NIM Compact 150 W Datasheet
[ nim150compact_kontron_datasheet.pdf, 392.15 KB, Aug.27.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Varianten
|
NIM_150C_X |
|
12 (10*) Slots, ±6 V/5 A, ±12 V/3 A, ±24 V/1.5 A, 115 VAC/0.25 A, 150 W (UEP15) |
