NGeCall Test and Validation

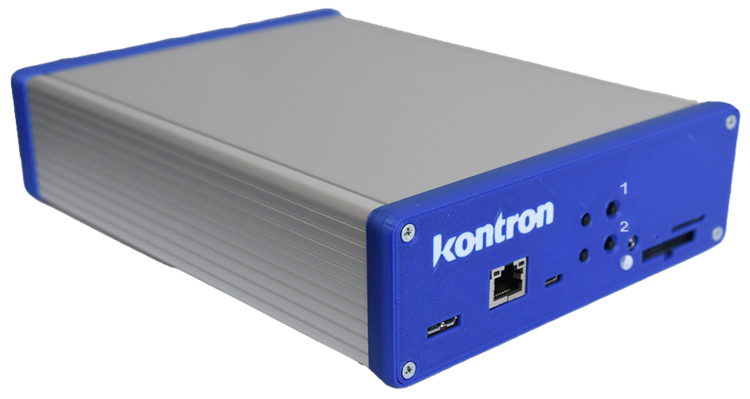

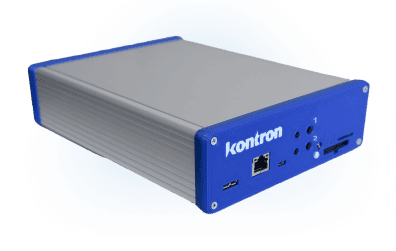

Ruggedized NGeCall Demonstrator (Next Generation emergency Call)
KDemo-16-NGeCall is a simple and easy-to-use demonstration device to quickly test and evaluate basic NG eCall functionality.
A high-speed 5G Kontron module is employed as NAD (Network Access Device) within the demonstrator.
KDemo-16-NGeCall is designed to test and analyze device approval and regular type approval aspects and features amongst others:
- USB connection, external power 12V
- Embedded configurable application for:
- Automatic & manual eCall / Test eCall
- NG eCall
- panEU eCall
- eCall only / dormant mode support
- eCall stress test (loops)
Eigenschaften
| Mobile | 5G 3GPP Rel. 16 Support 4G/5G carrier aggregation |
| USB | USB, external power 12V |
| Dimensions (W x H x D) | 23 x 17 x 5.5cm |
| Supply Voltage | 12V |
| Audio | Analog / digital audio of integrated 5G NAD supported |
| Operating Temperature | -30°C - +85°C |
| Extended Temperature | -40°C - +95°C |
| Hardware Features | 4 Buttons / 2+2 Status LEDs 2x opt decoupled GPIOs SIM slot to connect 2FF SIM Micro / Speaker, 3,5mm, Stereo SMA Adapter GNSS / 2xCellular Molex Jack, 10 pin multi-purpose connector USB, application terminal |
| Software Features | Embedded application Automatic & manual eCall / Test eCall NG eCall panEU eCall eCall only / dormant mode support eCall stress test (loops) |
Downloads
Datasheets
NGeCall Test and Validation
[ ecall_demo_box_kontron_datasheet_v03.pdf, 407.13 KB, Sep.30.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
