MPOD Mini Crate Datasheet
333.99 KB | 21. April 2026

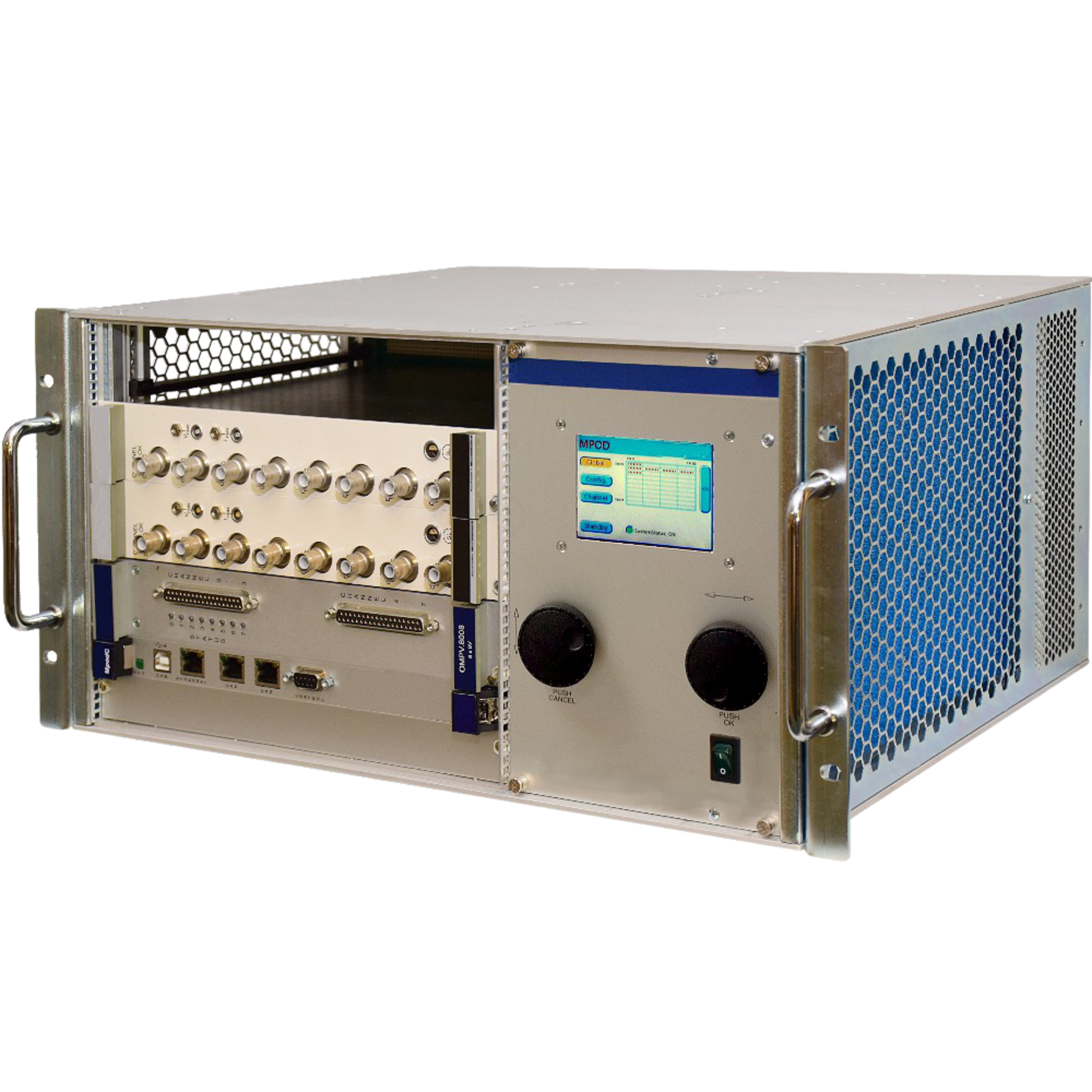

MPOD Mini Crate 19" 5U
Compact 19″ 5U mainframe for up to 4 HV/LV modules, modular front/rear connections, Ethernet and CAN control, ideal for space-constrained high-voltage applications in labs or test setups.
- Modular single-slot MPOD system
- Supports HV and LV output modules
- Ethernet and CAN remote control
- Optional front display
- Output at front or rear panel
Produktinformationen
The MPOD Micro-1 is a compact, single-slot power supply unit for high-voltage (HV) or low-voltage (LV) applications. It’s ideal for labs, test benches, and industrial environments needing precise, remotely controlled voltage distribution.
Technische Daten
| Compliance | Built to MPOD modular system standards Floating or common ground configurations Safety-tested high-voltage architecture Conforms to relevant EMI/EMC guidelines Meets industrial reliability requirements Designed for long-term stability |
|---|---|
| Power & Efficiency | Primary HV power: 300 W Output up to 20 kV / 15 mA per channel Ultra-low ripple & noise (<10 mVpp) Resonant sine-wave inverter for high efficiency Modular channel scalability Optimized for low EMI |
| Protection Features | Hardware voltage & current limits Fast current trip per channel Software-controlled protection logic Integrated safety loop Optional per-channel inhibit Power fault detection |
| Management & Control | Full remote control (Ethernet/CAN) 16- or 21-bit resolution for V/I settings Per-channel monitoring & feedback Configurable trip thresholds Easy module replacement Optional GUI software |
| Design & Components | Modular high-density architecture SHV/REDEL connectors based on channel count Up to 48 channels per module Passive cooling design Compact 6U housing Optional backplane types: HV/LV, HV-only, LV-only |
