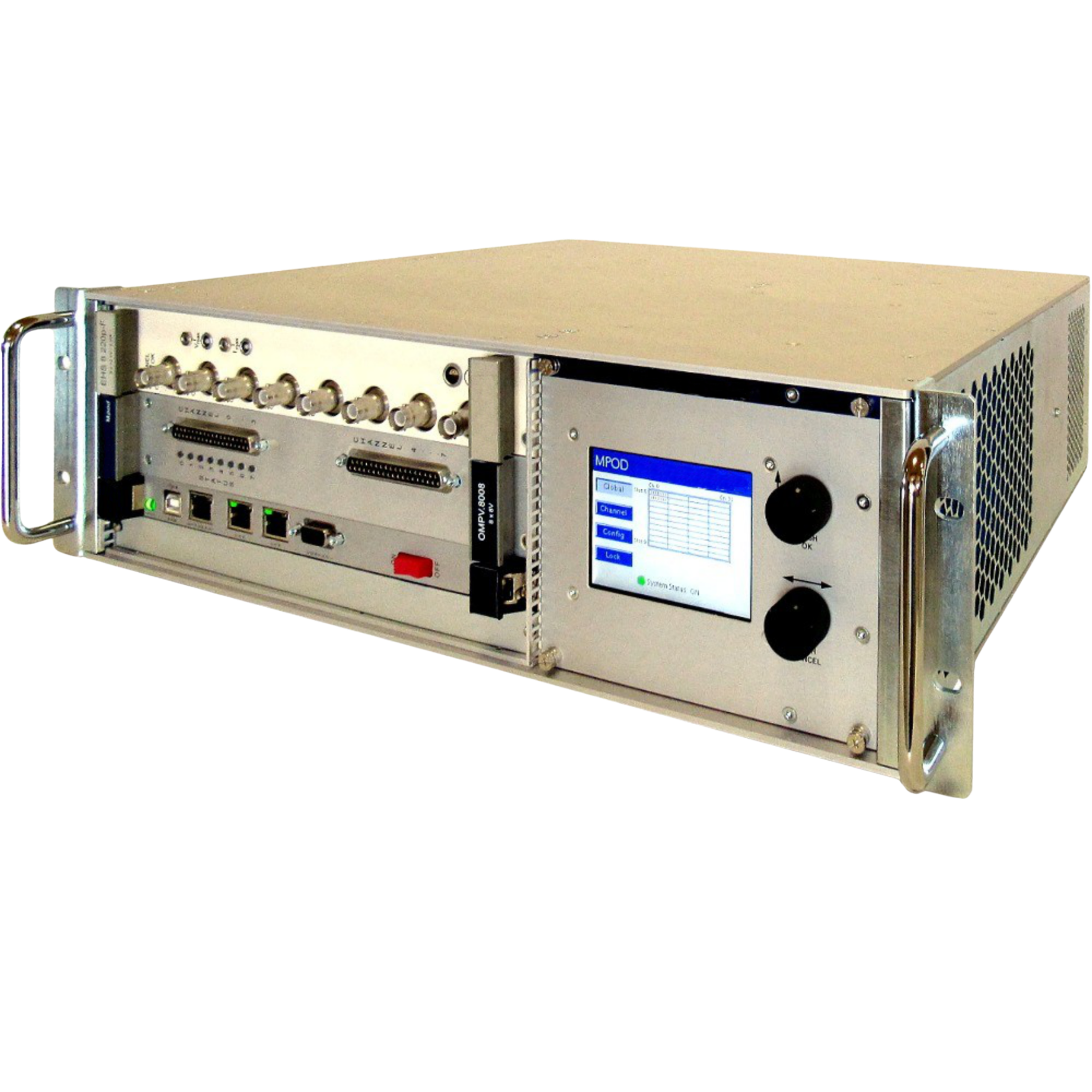

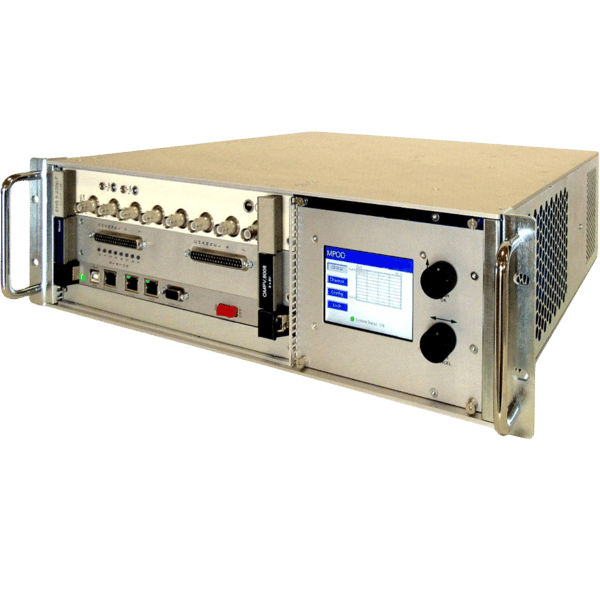

MPOD Micro-2 Crate 19" 3U

Ultra-compact 19″ 3U crate with 2 module slots, up to 300 W output, front or rear connectors, optional display – perfect for small-scale or distributed HV/LV power needs.

2 slots for plug-in power modules
Output: High Voltage (HV), Low Voltage (LV), or mixed (HV/LV)
Primary HV power: up to 300 W (depending on model)
Output direction: Front / Rear configurable
Graphic display: optional (LX variants)

Produkt anfragen Datenblatt herunterladen

Produktinformationen

The MPOD Micro-2 series is a compact 2-slot modular power crate system for high-voltage (HV), low-voltage (LV), or mixed applications. It supports flexible output options from front or rear and is available with or without a graphic display. The Micro-2 series delivers up to 300 W primary power and is ideal for distributed or space-constrained installations in scientific and industrial environments.

Technischer Support

Technische Daten

Compliance	CE certified RoHS compliant Designed to meet relevant EMC and safety standards for industrial equipment
Power & Efficiency	Primary HV power up to 300 W for HV and mixed models High-efficiency power conversion design Optimized for low power loss in distributed systems Low standby power consumption
Protection Features	Overvoltage protection Overcurrent protection Short-circuit protection per channel Thermal monitoring and shutdown
Management & Control	Remote control via Ethernet interface Status monitoring per channel LX versions with integrated graphical display for local control SNMP and WebGUI support for advanced system management
Design & Components	Modular architecture with hot-swappable slots Passive backplane design for improved reliability Compact size and low noise operation Supports mixed HV/LV configurations

Downloads

Varianten

Varianten hier auswählen

MPA2C2300A1S

Mpod - Mpod micro Series with Mpod HV/LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 00A1 and C13 90° Powercord for EU SCHUKO Connection

MPA2C2300A1T

Mpod - Mpod micro Series with Mpod HV/LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 00A1 and C13 90° Powercord for US / Japan Connection

MPA2C2300R1M

Mpod - Mpod micro Series with Mpod HV/LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 00R1 and C13 Powercord for VRC Connection

MPA2C2300R1S

Mpod - Mpod micro Series with Mpod HV/LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 00R1 and C13 90° Powercord for EU SCHUKO Connection

MPA2C2300R1T

Mpod - Mpod micro Series with Mpod HV/LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 00R1 and C13 90° Powercord for US / Japan Connection

MPA2C2301A13

Mpod - Mpod micro Series with Mpod HV/LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 01A3 and C13 90° Powercord for UK Connection

MPA2C2301R13

Mpod - Mpod micro Series with Mpod HV/LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 01R3 and C13 90° Powercord for UK Connection

MPA2C2301R1M

Mpod - Mpod micro Series with Mpod HV/LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 01R1 and C13 Powercord for VRC Connection

MPA2C2301R1S

Mpod - Mpod micro Series with Mpod HV/LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 01R1 and C13 90° Powercord for EU SCHUKO Connection

MPA2C2301R1T

Mpod - Mpod micro Series with Mpod HV/LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 01R1 and C13 90° Powercord for US / Japan Connection

MPB2C2303R1S

Mpod - Mpod micro Series with Mpod LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 03R1 and C13 90° Powercord for EU SCHUKO Connection

MPB2C2303R1T

Mpod - Mpod micro Series with Mpod LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 03R1 and C13 90° Powercord for US / Japan Connection

MPB2C2303R1Y

Mpod - Mpod micro Series with Mpod LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 03R1 and C13 lock Powercord for US NEMA 5-15P Connection

MPB2C2304R1S

Mpod - Mpod micro Series with Mpod LV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 04R1 and C13 90° Powercord for EU SCHUKO Connection

MPC2C2300A1S

Mpod - Mpod Series with Mpod HV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply Powersupply variant 00A1 and C13 90° Powercord for EU SCHUKO Connection

MPC2C2300A1T

Mpod - Mpod Series with Mpod HV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply Powersupply variant 00A1 and C13 90° Powercord for US / Japan Connection

MPC2C2300R1S

Mpod - Mpod Series with Mpod HV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply Powersupply variant 00R1 and C13 90° Powercord for EU SCHUKO Connection

MPC2C2300R1T

Mpod - Mpod Series with Mpod HV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply Powersupply variant 00R1 and C13 90° Powercord for US / Japan Connection

MPC2C2300R1Y

Mpod - Mpod Series with Mpod HV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply Powersupply variant 00R1 and C13 lock Powercord for US NEMA 5-15P Connection

MPC2C2302R1S

Mpod - Mpod Series with Mpod HV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 02R1 and C13 90° Powercord for EU SCHUKO Connection

MPC2C2302R1T

Mpod - Mpod Series with Mpod HV Backplane, 2 Slot, 3 HE and Mpod micro Powersupply variant 02R1 and C13 90° Powercord for US / Japan Connection
