MPOD Micro-1 Crate 19" 2U

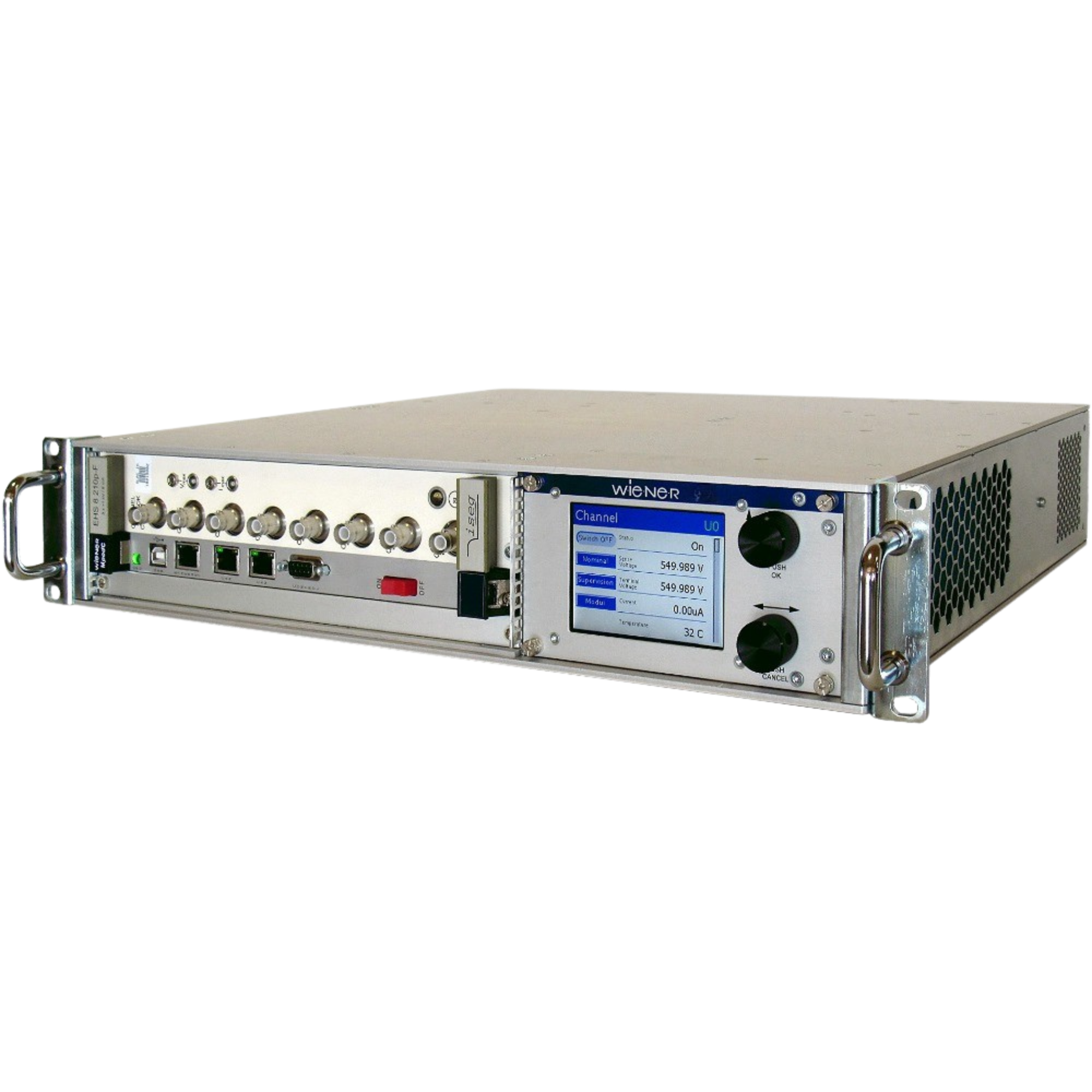

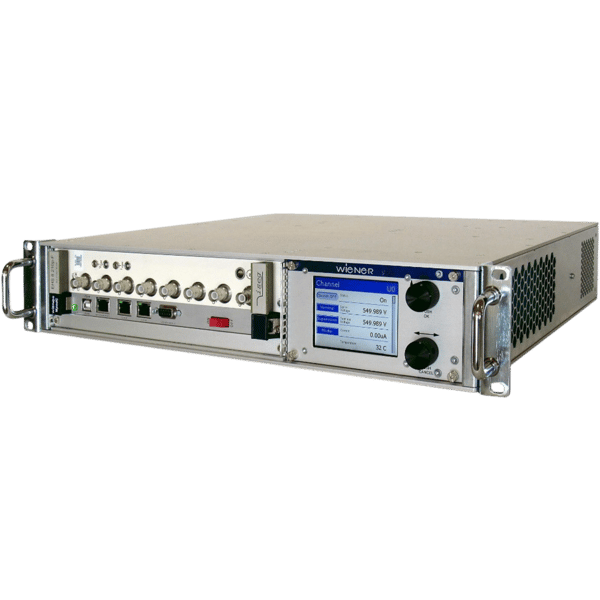

The MPOD Micro-1 2U is a 19" compact crate designed as the smallest and most cost-effective solution within the flexible WIENER MPOD power supply series.
Spezifikationen
- 19″ × 1.5U micro-bin chassis with cage for 1 HV or LV module
- Desktop, rack-mount, or micro tower installation
- New, reinforced mechanical design for improved stability and airflow
- Optional front panel display with local control
- Dimensions: 482 mm × 178 mm × 480 mm (W × H × D)
- Weight: approx. 10 kg
The MPOD Micro-1 is WIENER’s most compact and cost-effective chassis for high- and low-voltage multi-channel power supply applications. Designed for test setups, labs, or space-constrained installations, the Micro-1 supports one HV or LV plug-in module and features a full-function MPOD controller with Ethernet, USB2, and CAN-bus interfaces. Despite its small size, the crate offers powerful performance, extensive monitoring, and rugged design with optional local display and control.
Eigenschaften
| Compliance | Modular high/low voltage power supply crate according to MPOD standard CE-compliant with full EMI/EMC certification Designed to meet international safety standards (CE EN 60950, ISO 380, UL 1950, etc.) Wide-range AC input with power factor correction (94 – 265 V) |
| Power & Efficiency | Integrated primary power supply: – up to 600 W for LV – up to 100 W for HV AC input: 90–265 V (rated 106–230 VAC ±15 %) Efficiency: 75 % – 85 % (module dependent) Supports high voltage (up to 20 kV) and low voltage (up to 120 V) modules Very low ripple and noise, high stability and precision Output stability: 10 mV / 0.1 % (24 h), 25 mV / 0.3 % (6 Monate) |
| Protection Features | Overvoltage, overcurrent, overtemperature, and undervoltage protection Hardware crowbar overvoltage protection at 125 % of nominal voltage Fast DC-off within 5 ms on fault condition Programmable limits per output channel Airflow monitored with fault shutdown at >125 °C |
| Management & Control | Controller with Ethernet 10/100, CAN-bus, and USB-2 interface SNMP, OPC server, DHCP support, integrated web-server Optional: ISEG CC24 controller with Linux OS, iCS web service, EPICS IOC All channels individually controllable and monitorable Local display and manual control (optional) |
| Design & Components | Redesigned chassis for improved airflow and mechanical stability Integrated cooling fan with side-to-side airflow and air filter No use of aluminum electrolytic capacitors in sensitive components Long service life: – Electronics >100 000 h (40 °C) – Blowers >65 000 h (40 °C), >100 000 h (25 °C) |
| Mechanical | Compact 19″ × 1.5U design (desktop, tower, or rack-mountable) 1 slot for HV or LV module Dimensions: 482 mm × 178 mm × 480 mm (W×H×D) Weight: approx. 10 kg Supports: – ISEG EHS/EDS/EBS HV modules (8 – 48 channels, up to 20 kV) – WIENER MPV 8xxx LV modules (8 channels, up to 120 V, 50 W/channel) |
Downloads
Datasheets
MPOD Micro-1 Crate Datasheet
[ mpod-micro-1-crate-datasheet.pdf, 380.12 KB, Aug.04.2025 ]
Manuals
General Safety Instruction
[ vpx-360-manual.pdf, 5.67 MB, Dec.02.2025 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Varianten
|
Mpod Micro-1 |
|
Graphic display: No • Slots: 1 • Primary HV-power: 300 W • Output: Front / Rear • Backplane: HV/LV | |
|
Mpod Micro-1-LX |
|
Graphic display: Yes • Slots: 1 • Primary HV-power: 300 W • Output: Front / Rear • Backplane: HV/LV | |
|
Mpod Micro-1-HV |
|
Graphic display: No • Slots: 1 • Primary HV-power: 300 W • Output: Front / Rear • Backplane: HV | |
|
Mpod Micro-1-HV-LX |
|
Graphic display: Yes • Slots: 1 • Primary HV-power: 300 W • Output: Front / Rear • Backplane: HV | |
|
Mpod Micro-1-LV-LX |
|
Graphic display: Yes • Slots: 1 • Primary HV-power: – • Output: Front / Rear • Backplane: LV | |
|
Mpod Micro-1-LV |
|
Graphic display: No • Slots: 1 • Primary HV-power: – • Output: Front / Rear • Backplane: LV |
