MPOD Full Size Crate Datasheet
337.64 KB | 21. April 2026

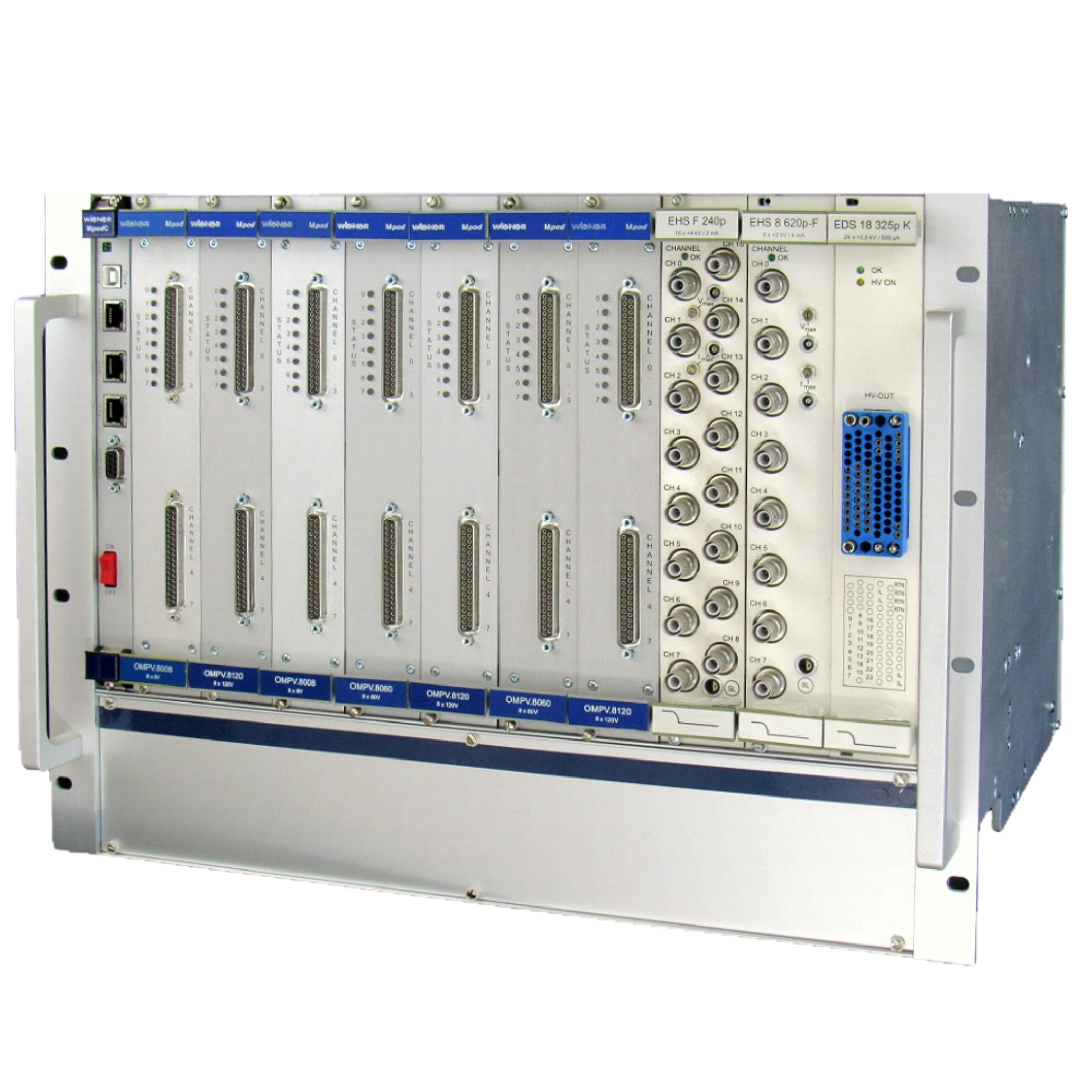

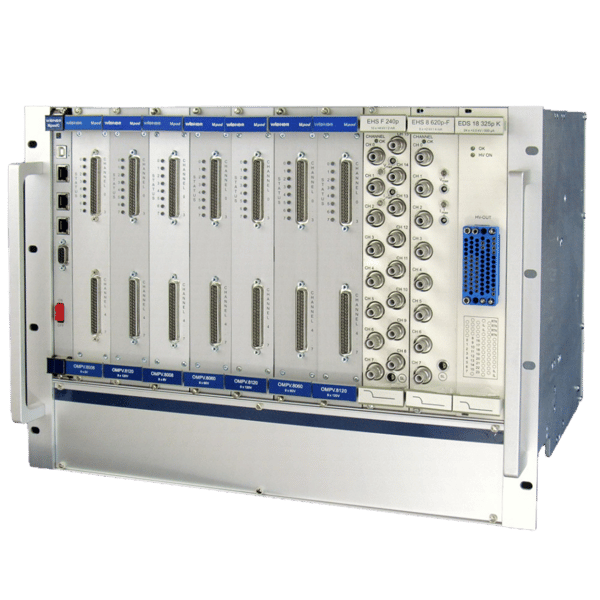

MPOD Full Size Crate 19" 8U
Full-size 19″ 8U crate for up to 10 HV/LV modules, supports 480 HV or 80 LV channels, Ethernet/CAN/USB interface, flexible design for demanding scientific or industrial systems.
- 19″ rack-mountable 8U/9U mainframe for up to 10 HV or LV modules
- Supports up to 480 HV or 80 LV channels per unit
- Ethernet, CAN bus, and USB-2 interfaces via front controller
- Mixed HV/LV configurations supported
- Front or rear connector output options
Produktinformationen
The MPOD is a universal, modular multichannel power supply system for both low voltage (LV) and high voltage (HV) applications. Designed for high-density, high-precision use, it accommodates up to 10 plug-in modules in a single mainframe, delivering up to 480 HV or 80 LV channels per unit.
Technische Daten
| Compliance | CE EN 60950, VDE 0805, ISO 380, UL 1950 certified EMC: Conducted & radiated emissions per EN 55022 Class B Surge, burst, and ESD immunity per EN 61000-4 standards Auto-ranging AC input (90–265 VAC), with power factor correction Industrial-grade insulation & reliability Designed for demanding lab and field environments |
|---|---|
| Power & Efficiency | Total output power: up to 3000 W (standard), 300 W for MPOD micro High-efficiency primary PSU (UEP6021-based) Ultra-low ripple & noise for sensitive electronics Efficiency: 75–85% depending on modules Channel output: up to 50 W/channel (LV), 20 kV/channel (HV) Modular fan tray for optimal thermal performance |
| Protection Features | Per-channel overvoltage (crowbar) protection Trip-off at 125% voltage or >5% deviation Programmable current and voltage limits Automatic shutdown for fan failure or overheating Temperature-triggered protection (>125°C) Outputs discharge safely on trip or shutdown |
| Management & Control | Central controller with TCP/IP, SNMP, OPC, and Web-server Optional ISEG CC24 controller (Linux OS, iCS web service) 16/21-bit precision for monitoring & control Remote and local access (optional display with rotary/push button) Front controller easily replaceable Supports DHCP and full network integration |
| Design & Components | Rugged 19″ 8U/9U chassis with modular layout Modules: 6U × 8 PU, up to 220 mm deep Mixed installation: HV and LV modules freely combinable Low-noise HV modules (ISEG) and LV modules (WIENER MPV 8xxx) Air intake from bottom or front (filter optional) Compact, field-serviceable mechanical build |
