MOPS/386A Datasheet
331.21 KB | 26. März 2026
Dieses Produkt ist veraltet und wird nicht mehr aktiv unterstützt.Ersatzprodukt: MOPS/SE

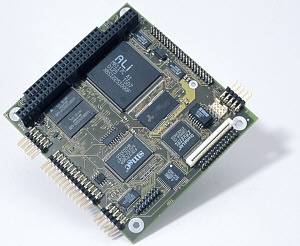

MOPS/386A
386SX-40MHz, 2xCOM, IDE, LPT, FDC, Keyb., Matrix-keyb/display, LAN, onboard DRAM/Flash
- 10 MBit LAN onboard with optional 4 MB Flash
- genuine 16-bit ISA referring to
- PC/104-Standard
- 386SX processor 40MHz, no moving parts
- Soldered 2 MB DRAM and 2 MB bootable Flash
MOPS/386A - An Embedded Low Power PC/104, No Moving Parts - Not for new designs
Low power, low cost - nice featureset!
Get a real low power embedded PC/104 with the ALi 386SX. The CPU runs with 40 MHz. 2 MByte DRAM and 2 MB flash firmly soldered onboard. Operating with only passive cooling, a reliable system with no moving parts is possible. Matrix-keyboard and Matrix-display enhance this low cost board. The board is complete 2 x COM, LPT, FDD, EIDE and keyboard connector.
MOPS (Minimized Open PC System) PC/104 products represent the "Proven PC Platform for Instant Solutions". Each MOPS module is characterized by the same pinout for keyboard, COM1 and COM2, 44-pin IDE, LPT, and 1st LAN. These homogeneous features facilitate easy upgrades within the MOPS PC/104 product family. All MOPS-PC/104 are plug-and-work enabled to further reduce time-to-market.
Get a real low power embedded PC/104 with the ALi 386SX. The CPU runs with 40 MHz. 2 MByte DRAM and 2 MB flash firmly soldered onboard. Operating with only passive cooling, a reliable system with no moving parts is possible. Matrix-keyboard and Matrix-display enhance this low cost board. The board is complete 2 x COM, LPT, FDD, EIDE and keyboard connector.
MOPS (Minimized Open PC System) PC/104 products represent the "Proven PC Platform for Instant Solutions". Each MOPS module is characterized by the same pinout for keyboard, COM1 and COM2, 44-pin IDE, LPT, and 1st LAN. These homogeneous features facilitate easy upgrades within the MOPS PC/104 product family. All MOPS-PC/104 are plug-and-work enabled to further reduce time-to-market.
Downloads
Treiber
JIDA32 Interface Library API, version 1.3
354.07 KB | 26. März 2026
JIDA32 Interface Library API, version 1.5_L112 (Linux only!).
321.56 KB | 26. März 2026
Modified packet driver for the CS8900. Includes an additional option to solve TX buffer underrun problems
7.64 KB | 26. März 2026
Ethernet driver archive for Crystal CS8900.
516.44 KB | 26. März 2026
The latest JIDA Lib Version for VxWorks 5.5 (Tornado 2.2).
286.21 KB | 26. März 2026
Intel® Network Adapter Driver - Win98
1.49 MB | 26. März 2026
Windows® CE Driver Solution Pack 2.8
9.51 MB | 26. März 2026
Supports CE 6.0 (incl. R3), 5.0 and 4.2. Please, contact your local Kontron sales representative for further information and the required installation key.
JIDA Lib Version for VxWorks 5.4 (Tornado 2.0)
125.26 KB | 26. März 2026
Service
Kontron Services Brochure
8.9 MB | 26. März 2026
Setup tool for matrix keyboard interface
13.99 KB | 26. März 2026
MOPS/386A Test Report
329.37 KB | 26. März 2026
flash disk initialization tool
35.12 KB | 26. März 2026
Crisis Recovery Disk - Incluses current released flash BIOS tools and the latest released BIOS. Please contact your local Kontron Support Team for special BIOS versions.
302.25 KB | 26. März 2026
Setup tool for Alphanumeric LCD
12.63 KB | 26. März 2026
MOPS/386A Certificate
119.72 KB | 26. März 2026
