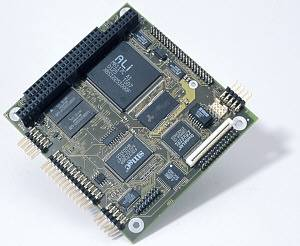

MOPS/386A Dieses Produkt ist Legacy
386SX-40MHz, 2xCOM, IDE, LPT, FDC, Keyb., Matrix-keyb/display, LAN, onboard DRAM/Flash
Spezifikationen
- 10 MBit LAN onboard with optional 4 MB Flash
- genuine 16-bit ISA referring to
- PC/104-Standard
- 386SX processor 40MHz, no moving parts
- Soldered 2 MB DRAM and 2 MB bootable Flash
- with chipDISK up to 256 MByte IDE Flash (accessory)
- Matrix-keyboard and Character LED Display interface
- 2xCOM, LPT, IDE, FDC
- See "Related Info" on side navigation bar for MOPS/386A Driver Archive
MOPS/386A - An Embedded Low Power PC/104, No Moving Parts - Not for new designs
Low power, low cost - nice featureset!
Get a real low power embedded PC/104 with the ALi 386SX. The CPU runs with 40 MHz. 2 MByte DRAM and 2 MB flash firmly soldered onboard. Operating with only passive cooling, a reliable system with no moving parts is possible. Matrix-keyboard and Matrix-display enhance this low cost board. The board is complete 2 x COM, LPT, FDD, EIDE and keyboard connector.
MOPS (Minimized Open PC System) PC/104 products represent the "Proven PC Platform for Instant Solutions". Each MOPS module is characterized by the same pinout for keyboard, COM1 and COM2, 44-pin IDE, LPT, and 1st LAN. These homogeneous features facilitate easy upgrades within the MOPS PC/104 product family. All MOPS-PC/104 are plug-and-work enabled to further reduce time-to-market.
Get a real low power embedded PC/104 with the ALi 386SX. The CPU runs with 40 MHz. 2 MByte DRAM and 2 MB flash firmly soldered onboard. Operating with only passive cooling, a reliable system with no moving parts is possible. Matrix-keyboard and Matrix-display enhance this low cost board. The board is complete 2 x COM, LPT, FDD, EIDE and keyboard connector.
MOPS (Minimized Open PC System) PC/104 products represent the "Proven PC Platform for Instant Solutions". Each MOPS module is characterized by the same pinout for keyboard, COM1 and COM2, 44-pin IDE, LPT, and 1st LAN. These homogeneous features facilitate easy upgrades within the MOPS PC/104 product family. All MOPS-PC/104 are plug-and-work enabled to further reduce time-to-market.
Downloads
Datasheets
MOPS/386A Datasheet
[ d_mops386a_n.pdf, 331.21 KB, Aug.31.2017 ]
Manuals
MOPS/386A Manual
[ m_mops386a_p389m115.pdf, 1.23 MB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]
Drivers
JIDA32 Interface Library API, version 1.3
[ jidaia13.zip, 354.07 KB, Jul.03.2018 ]
JIDA32 Interface Library API, version 1.5_L112 (Linux only!).
[ jidar115_l112.zip, 321.56 KB, Jul.03.2018 ]
Modified packet driver for the CS8900. Includes an additional option to solve TX buffer underrun problems
[ pktd8900.zip, 7.64 KB, Jul.03.2018 ]
Ethernet driver archive for Crystal CS8900.
[ ethernet.exe, 516.44 KB, Jul.03.2018 ]
The latest JIDA Lib Version for VxWorks 5.5 (Tornado 2.2).
[ jidavx55_i115.zip, 286.21 KB, Jul.03.2018 ]
Intel® Network Adapter Driver - Win98
[ intel_network_adapter_driver_win98_v10-3.exe, 1.49 MB, Apr.20.2023 ]
Windows® CE Driver Solution Pack 2.8
Supports CE 6.0 (incl. R3), 5.0 and 4.2. Please, contact your local Kontron sales representative for further information and the required installation key.
[ cespi128.zip, 9.51 MB, Jul.03.2018 ]
JIDA Lib Version for VxWorks 5.4 (Tornado 2.0)
[ jidavx54.zip, 125.26 KB, Jul.03.2018 ]
Tools
Setup tool for matrix keyboard interface
[ p389mtx.exe-2, 13.99 KB, Nov.27.2013 ]
flash disk initialization tool
[ ssdinit.exe, 35.12 KB, Nov.27.2013 ]
Crisis Recovery Disk - Incluses current released flash BIOS tools and the latest released BIOS. Please contact your local Kontron Support Team for special BIOS versions.
[ crd2p389r113.zip, 302.25 KB, Apr.10.2018 ]
Setup tool for Alphanumeric LCD
[ alcdinit.exe, 12.63 KB, Nov.27.2013 ]
Application Notes
How to use the DOT Matrix Display on MOPS/386A
[ jap0035.pdf, 82.27 KB, Nov.27.2013 ]
Shareable interrupts on Kontron Embedded Modules GmbH boards
[ shareirq_e111.pdf, 97.57 KB, Nov.27.2013 ]
Linux-Installation-with-IDE-Flash
[ linux-installation-with-ide-flash_e111.pdf, 25.75 KB, Apr.20.2023 ]
I2C Bus on MOPS/386A
[ i2cp389_e210.pdf, 86.88 KB, Nov.27.2013 ]
DOT Matrix Display on PC/104 Products
[ dotmatrixpc104_e111.pdf, 153.06 KB, Nov.27.2013 ]
Test Reports
MOPS/386A Test Report
[ p389hs10.pdf, 329.37 KB, Nov.27.2013 ]
MOPS/386A Certificate
[ p389hx10.pdf, 119.72 KB, Nov.27.2013 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
Zubehör
|
KAB-KB-PS2
96060-0000-00-0 |
|
KAB-KB-PS2, PS/2-Keyboard Adapterkabel für MOPS PC/104 Module (4-Pin Steckverbinder zu PS/2-Keyboard) | more |
|
JRC1
96047-0000-00-0 |
|
JRC1, Remote Control Software mit seriellem Kabel (Lizenzkosten werden nur 1x berechnet!) | more |
|
DR-DOS LABEL
96051-0000-00-0 |
DR-DOS, license label | more | |
|

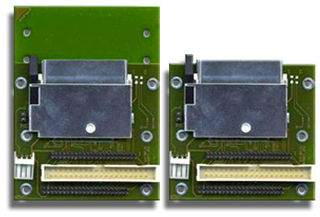

CFC-ADA-1
96004-0000-00-2 |
|
CFC-ADA-1, 2,5" Adapter für CompactFlash und Microdrive | more |
|

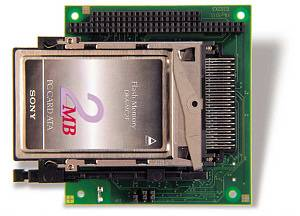

PC/104-PCMCIA-1
01019-0000-00-0 |
|
Dual Slot PC/104 PCMCIA drive, for WLAN or data storage, etc. | more |
|
CONV-RS485G
96014-0000-00-0 |
|
CONV-RS485G, Converter-Modul RS232 to RS485, opto-coupled | more |
|

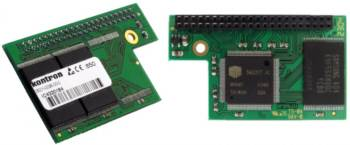

chipDISK/32-IDE
08001-0032-00-0 |
|
chipDISK/32-IDE, IDE kompatibler Flash-Speicher mit 32 MByte | more |
|
chipDISK/96-IDE
08001-0096-00-0 |
|
chipDISK, IDE compatible flash harddisk with 96MByte | more |
|

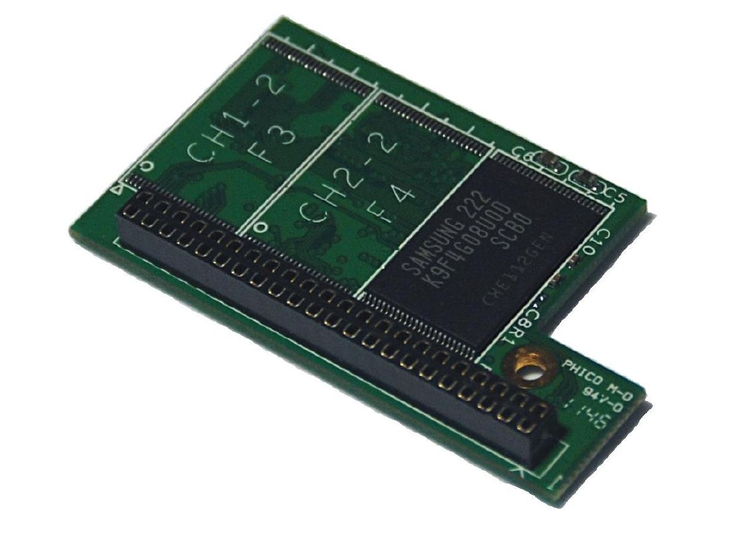

chipDISK-IDE
08001-1000-00-1 |
|
chipDISK/1000-IDE, IDE kompatibler Flash-Speicher mit 1GByte | more |
|

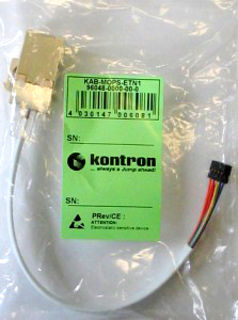

KAB-MOPS-ETN1
96048-0000-00-0 |
|
KAB-MOPS-ETN1, Ethernet Kabel für MOPS |
more |
|
KAB-KB-1
96023-0000-00-0 |
|
KAB-KB-1, Keyboard Adapter für MOPS PC/104 Module | more |
|
KAB-IDE-2MM
96021-0000-00-0 |
|
KAB-IDE-2MM, IDE Adapterkabel für MOPS (2 mm auf 2 mm; 44 Pins) | more |
|
CFC-16, COMPACT
08011-0016-00-0 |
CFC-16, Compact Flash Card Type I with 16 MByte | more | |
|
CFC-32, COMPACT
08011-0032-00-0 |
|
CFC-32, Compact Flash Card Type I with 32 MByte | more |
|
CFC-64, COMPACT
08011-0064-00-0 |
|
CFC-64, Compact Flash Card Type I with 64 MByte | more |
|
CFC-128, COMPACT
08011-0128-00-0 |
|
CFC-128, Compact Flash Card Type I with 128 MByte | more |
|
CFC-192, COMPACT
08011-0192-00-0 |
|
CFC-192, Compact Flash Card Type I with 192 MByte | more |
|

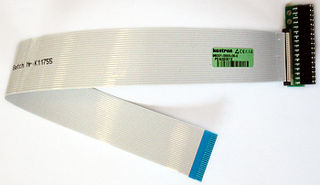

ADA-FLOPPY-2
