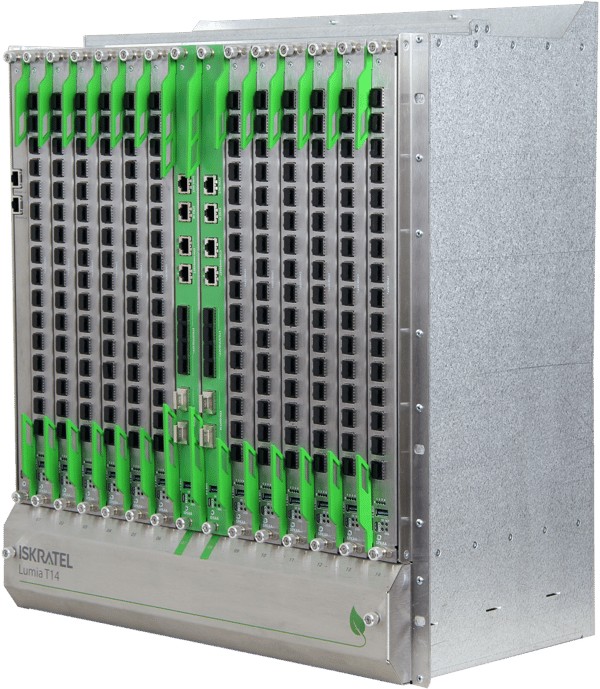

Lumia T14

Lumia T14 is the high-density platform for operators consolidating large subscriber populations and multiple access services in one carrier-class chassis. It delivers the port scale required for major central offices while retaining the flexibility to adapt capacity, redundancy and technology mix.

The 14-slot chassis accommodates up to thirteen subscriber blades with one central switch or twelve with duplicated switches. Each subscriber blade connects to both central switches over a dual-star topology, providing up to 400 Gbps per blade. Two P300T switches can operate as one 3.4 Tbps nonblocking switch with up to 600 Gbps uplink capacity. Support for Combo PON, XGS-PON, GPON, 10GE P2P and next-generation subscriber blades protects the platform against access-technology transitions.
