Dieses Produkt ist veraltet und wird nicht mehr aktiv unterstützt.

KISS 2U Short

Just 350 mm deep.Suitable for Industrial, Military, Transportation , Medical applications

  • 2 * PCI 32 Bit Slots free
  • Flex ATX Mainboard 886LCD-M/Flex
  • Mini ITX Mainboard 986LCD-M/mITX
  • Hot Swap Chassis Fans
  • Intel®Core™2Duo
Produkt Vorschaubild

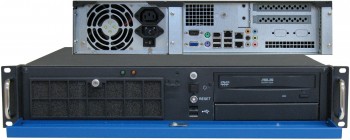

350 mm deep 2U rackmount PC

Just 350 mm deep

The KISS 2U short provides numerous customer options with an especially low installation height (88,90mm) and is extremely quiet (<35dbA), scalable, RoHS compliant, has long term availability all in a ruggedized platform.

The KISS 2U short supports Flex ATX and Mini ITX motherboard and due to the flexible design provides Multi Core and PCI-based solutions. In both the Flex ATX and Mini ITX designs, the KISS 2U Short server offers performance currently up to Intel®Core2 Duo T7400 or Intel Core Solo Celeron 440, Intel 945GM Chipset, 533 MHz FSB and up to 4 GB DDR2 memory. Intel®Core2 Duo processors provide up to twice the performance, when compared to the Intel® Pentium® M processors, at a given GHz clock rate and can be as low as 31 Watts.
Product Image 1

Technische Daten

Dimensions (H x W x D)88 x 482 x 350 mm (2U x 19" x 13.78")
WeightApprox. 8 kg
I/Os2x USB 2.0
Rear I/O2x GByte LAN, 4x USB 3.0, 3x Displayport, HD Audio, 1x RS232
FrontpanelATX Switch

Downloads

Handbücher

PDF

General Safety Instruction

628.88 KB | 26. März 2026

PDF

User Manual KISS 2U Short V1.00

786.5 KB | 26. März 2026

Service

PDF

Kontron Services Brochure

8.9 MB | 26. März 2026

PDF

Configuration_Guide_KISS- 2U_Short_986LCD-M_mITX

50.27 KB | 26. März 2026

PDF

Configuration_Guide_KISS- 2U Short_886LCD-MFlex

13.39 KB | 26. März 2026

PDF

Temperature Test Report KISS 2U short 886LCD-M_Flex

508.48 KB | 26. März 2026

PDF

Outline Dimensions KISS 2 U Short

121.91 KB | 26. März 2026
