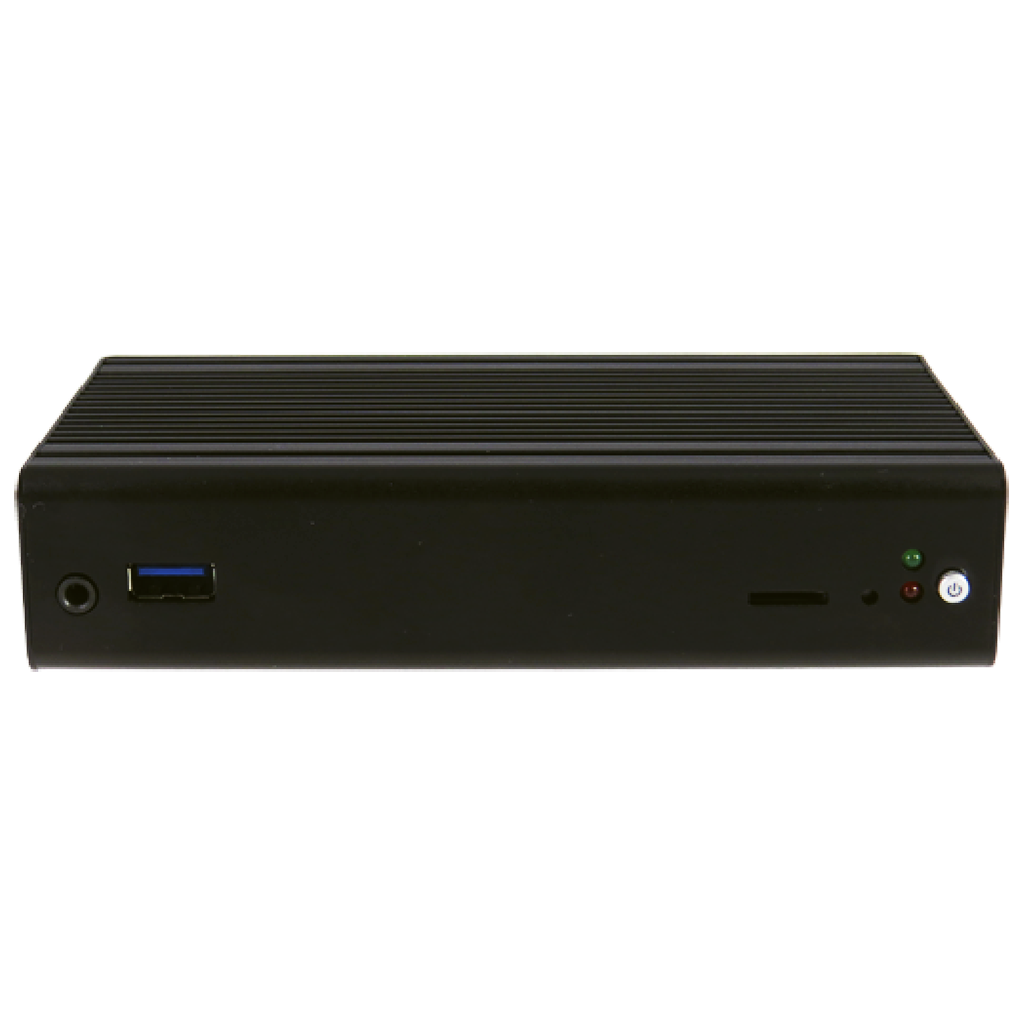

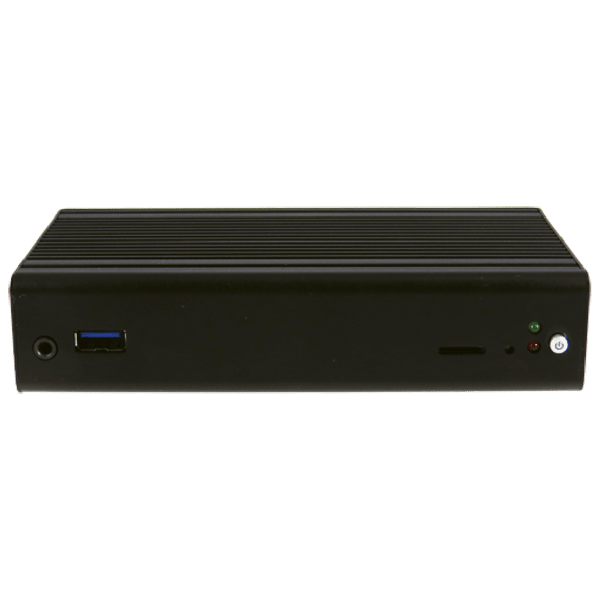

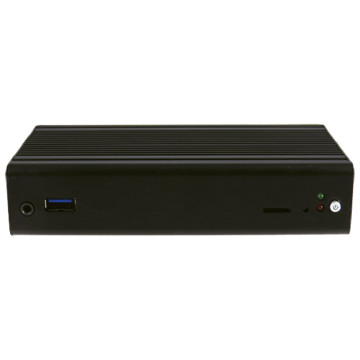

KBox P-100 Series
Fanless Mini Box PC with Intel® Atom® E3800 Series & Celeron® N2000 Series Processors
KBox P-100 Mini Box PC Datasheet
2.12 MB | 26. März 2026
KBox P-100 Series
Fanless Mini Box PC with Intel® Atom® E3800 Series & Celeron® N2000 Series Processors
- 1x HDMI, 1x VGA for display output
- 1x GbE LAN for Ethernet
- 1x USB 3.0, 2x USB 2.0, 1x RS232/422/485 for peripheral connection
- 1x mSATA, up to 1x Micro-SD Cage for storage
- 1x mPCIe for expansion
Fanless & Miniature
Kontron's KBox P-100 Series box PC features its ultra mini appearance of only a palm-sized footprint, ideal for extreme space critical applications. This embedded hardware platform is powered by energy-efficient Intel® Atom® E3800 Series & Celeron® N2000 Series processors along with a DDR3L SO-DIMM socket for main memory. In addition, it allows to install one mSATA SSD or up to one Micro SD card depending on ordered configuration for expandable storage options in the space-constrained housing.
The KBox P-100 Series is sealed in a rugged case with passive cooling design, which not only provides protection against EMI, vibration, and ambient temperature for reliable operation, but also offers a quiet pleasant computing experience.
Technische Daten
| Processor | Intel® Atom® E3825 (Dual Core, 1M Cache, 1.33 GHz, FCBGA1170, 6 W TDP) Intel® Celeron® N2930 (Quad Core, 2M Cache, up to 2.16 GHz, FCBGA1170, 7.5 W TDP) Intel® Celeron® N2807 (Dual Core, 1M Cache, up to 2.16 GHz, FCBGA1170, 4.3 W TDP) |
|---|---|
| Main Memory | 1x DDR3L 1067 SO-DIMM up to 4 GByte (Model w/ E3825, N2807) 1x DDR3L 1067 SO-DIMM up to 8 GByte (Model w/ N2930) |
| Graphics Controller | Intel® HD Graphics |
| Display | 1x HDMI (on rear, 1920 x 1080 @ 60 Hz) 1x VGA (on rear, 2560 x 1600 @ 60 Hz) Dual display support |
| Audio Controller | Realtek ALC662 |
Downloads
Treiber
KBox P-100 Series Graphics Driver for Win7 and Win8
432.68 MB | 26. März 2026
KBox P-100 Series Graphics Driver for Win10
200.73 MB | 26. März 2026
KBox P-100 Series INF Driver for Windows
5.37 MB | 26. März 2026
KBox P-100 Series TXE Driver for Windows
100.24 MB | 26. März 2026
KBox P-100 Series LAN Driver for Windows
21.62 MB | 26. März 2026
KBox P-100 Series USB 3.0 Driver for Win7 and Win8
6.84 MB | 26. März 2026
KBox P-100 Series Audio Driver for Windows
236.05 MB | 26. März 2026
Ähnliche Produkte & Lösungen
Advantages of Kontron Industrial Computers
Better overall specifications than competitions
One-stop-shop integration service
Stable long-term availability
Flexible customization
Quick lead time
