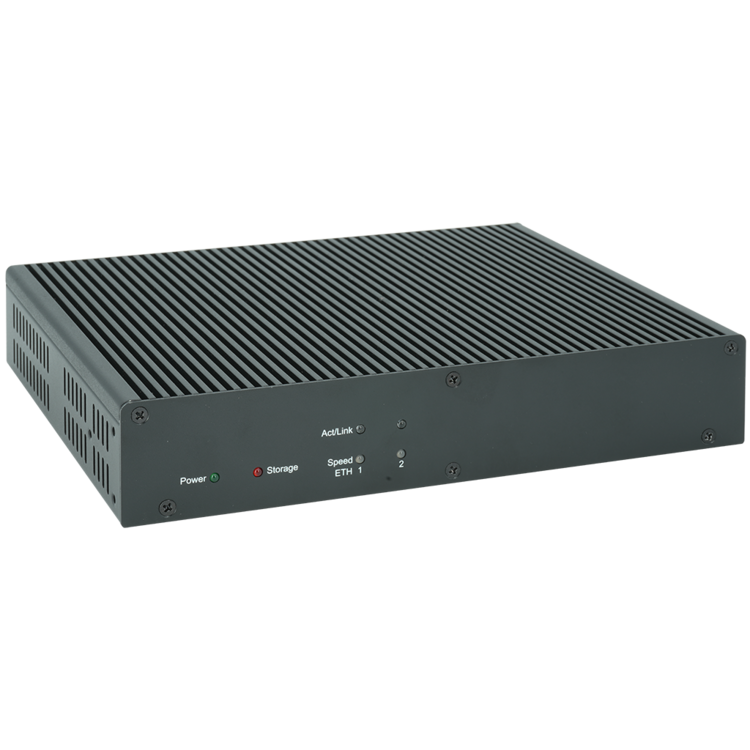

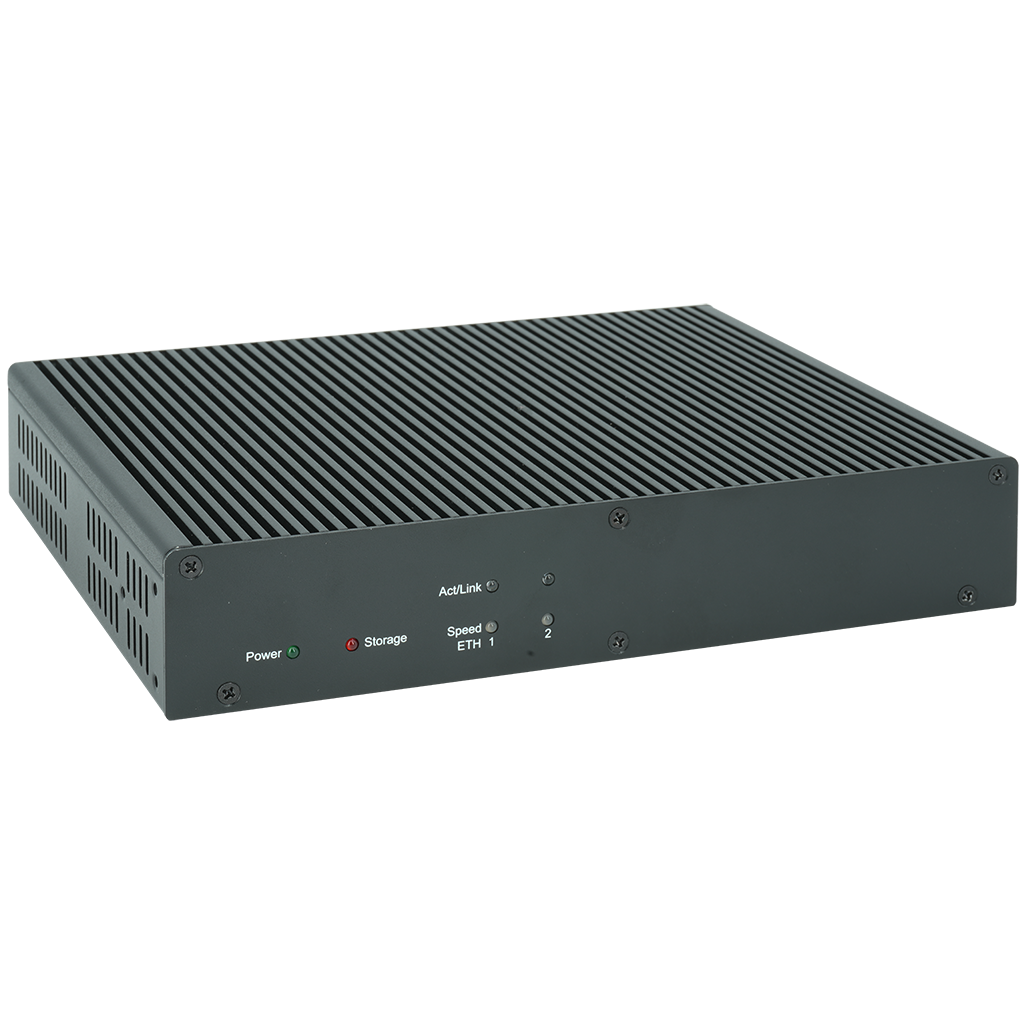

KBox N-120-ADN
Fanless Network Security Appliance with Intel® Core™ i3 N-Series & Intel® N-Series Processors
Spezifikationen
Bald verfügbar- 2x 2.5 GbE LAN port for optimized bandwidth utilization
- 1x M.2 Key B, 1x M.2 Key E for Wi-Fi & WWAN wireless expansion
- Hardware-based protection against malware and sophisticated cyberattacks
- Passive cooling design for quiet operation
- Friendly LED indicators for quick status checks
Entry-level Edge Security Controls
KBox N-120-ADN is a fanless network security appliance powered by Intel® Core™ i3 N-Series and Intel® N-Series Series (codenamed Alder Lake N) processors. Besides two 2.5 GbE LAN ports, it reserves one M.2 Key E slot and one M.2 Key B slot, allowing system integrators or users to expand Wi-Fi and / or WWAN (3G, 4G or 5G) wireless communication modules respectively according to application requirements. It is an ideal entry-level appliance for edge security controls at small and medium-sized enterprises.
Eigenschaften
| Processor | Intel® Core™ i3-N305 (Octa Core, 6M Cache, 1.8 / 3.8 GHz, 15 W TDP) Intel® N97 (Quad Core, 6M Cache, 2.0 / 3.6 GHz, 12 W TDP) |
| Memory | 1x DDR5 4800 SO-DIMM up to 16 GByte |
| Graphics Controller | Intel® UHD Graphics Gen12 |
| Display | 3x DP (4096 x 2160 @ 60 Hz, 2x Full-size DP on rear, 1x DP USB-C on rear) Triple Display support |
| Ethernet | 2x 2.5 GbE LAN (RJ45 on rear, Intel® I226-V) |
| USB | 3x USB 3.2 Gen 2 (2x Type A on rear, 1x Type C (w/ DP & PD 5 V / 3 A) on rear) 1x USB 2.0 (Type A on rear) |
| Serial Ports | 1x RS232/422/485 (optional, DB9 on rear, Tx / Rx only for RS232) |
| SATA | 1x 2.5” SATA 3.0 HDD / SSD support |
| Expansion | 1x M.2 Key B (Type 2242 / 3042 / 3052 / 2280, w/ PCIe x1 / USB 2.0 / UIM) 1x M.2 Key E (Type 2230, w/ PCIe x1 / USB 2.0 / CNVi) 1x M.2 Key M (Type 2280, w/ SATA 3.0 (default) / PCIe x1 (optional)) 1x SIM Card Holder (optional, by header) |
| Input Voltage | DC 12 V |
| Power connector | Lockable DC Jack (on rear) |
| BIOS | AMI uEFI BIOS w/ 256 Mb SPI Flash |
| Watchdog | Programmable WDT to generate system reset event |
| System Monitoring | Voltages, Temperatures |
| Real Time Clock | Processor integrated RTC |
| TPM | TPM 2.0 Support (Infineon SLB 9672) |
| Cooling | Passive |
| Operating System | Windows 11, Windows 10, Linux |
| Housing | Aluminum + Metal Chassis |
| Dimensions (W x H x D) | 219 mm x 40 mm x 151 mm / 8.62" x 1.57” x 5.94" |
| Weight | 1420 g / 3.13 lb |
| Mounting | VESA Mount (100 mm x 100 mm) Rackmount Desktop |
| Operating Temperature | 0 °C ~ 50 °C / 32 °F ~ 122 °F |
| Storage Temperature | -20 °C ~ 80 °C / -4 °F ~ 176 °F |
| Humidity | 0 % ~ 95 % |
| Compliance | CE Class B, FCC Class B, ICES Class B, UKCA |
