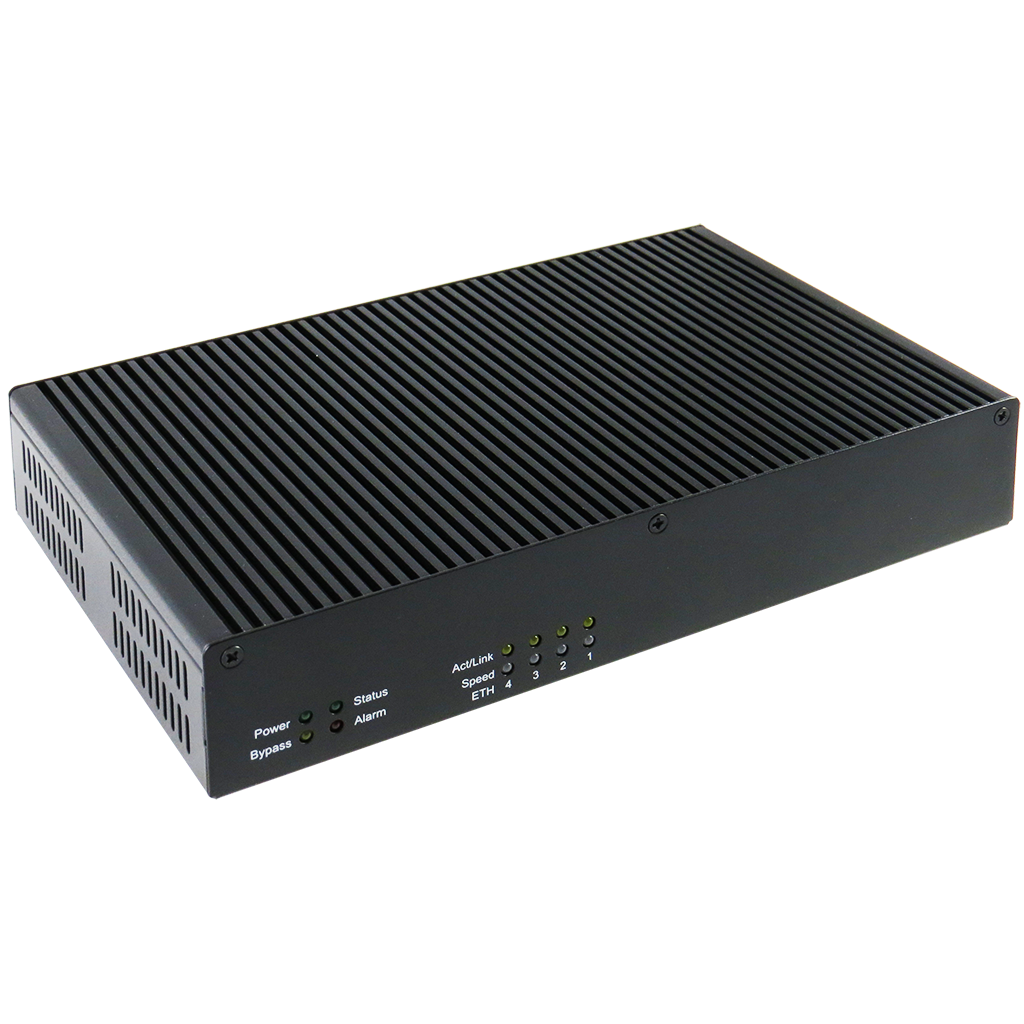

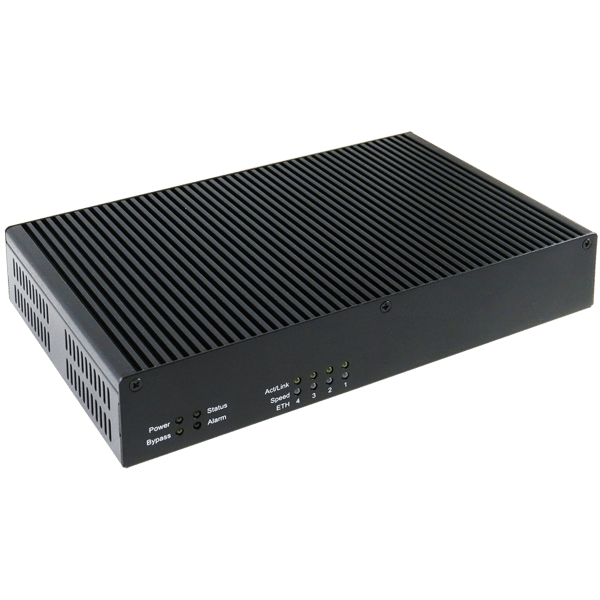

KBox N-10x
Fanless Network Security Appliance with Intel® Bay Trail SoC Processor
KBox N-10x Network Security Appliance Datasheet
2.95 MB | 26. März 2026
KBox N-10x
Fanless Network Security Appliance with Intel® Bay Trail SoC Processor
- 1x VGA for display output
- 4x GbE LAN for Ethernet (2 ports with bypass function)
- 1x USB 3.0, 2x USB 2.0, 1x RS232 for peripheral connection
- 1x 2.5” SATA HDD / SSD, 1x mSATA for storage
- Passive cooling design
LAN Bypass Function Support
Kontron's KBox N-10x is a network device distinguishing itself for its bypass function and designed for high availability of network connectivity.
Network Redundancy
Equipped with four GbE LAN ports of which two support LAN bypass function, it can instantly pass the link to the next available paths in case of a single point of network failure. Also, a flexible software-controlled configuration is provided to easily initiate the function. On the front panel, friendly LED indicators allow users to quickly monitor port / system status and identify possible network failure point(s).
Compact and Energy-efficient
Besides, the KBox N-10x is an energy-efficient platform for its Intel® BayTrail Processor. Enclosed in a compact, rugged and conduction-cooled aluminum housing, it is ideal for quiet fanless operation and space-critical applications.
Technische Daten
| Processor | Intel® Celeron® J1900 (Quad Core, 2M Cache, up to 2.42 GHz, FCBGA1170, 10 W TDP) Intel® Atom® E3825 (Dual Core, 1M Cache, 1.33 GHz, FCBGA1170, 6 W TDP) |
|---|---|
| Main Memory | 2x DDR3L 1333 SO-DIMM up to 8 GByte (Celeron® J1900) 1x DDR3L 1067 SO-DIMM up to 8 GByte (Atom® E3825) |
| Graphics Controller | Intel® HD Graphics |
| Display | 1x VGA (on rear, 2560 x 1600 @ 60 Hz) |
| Ethernet | 4x GbE LAN (RJ45 on rear, Intel® I210-AT, LAN1 & LAN2 Bypass, PXE support) |
