KBox E-100 Series
Fanless Box PC with Intel® Atom® E3800 Series & Celeron® J1900 Processors
- 1x HDMI, 1x VGA for display output
- 2x GbE LAN for Ethernet
- 1x USB 3.2 Gen 1, 4x USB 2.0, 2x RS232/422/485, 2x RS232, 1x DIO for peripherals
- 1x 2.5” SATA 2.0 HDD / SSD Slot, up to 1x mSATA for storage
- Up to 2x mPCIe for expansion
Fanless, Rugged & Extended Temperature
Power-efficient Platform
Kontron's KBox E-100 Series is a fanless box PC powered by Intel® Atom® E3800 Series & Celeron® J1900 SoC Processors which deliver required performance and power efficiency.
Easy to Connect More Serial Devices

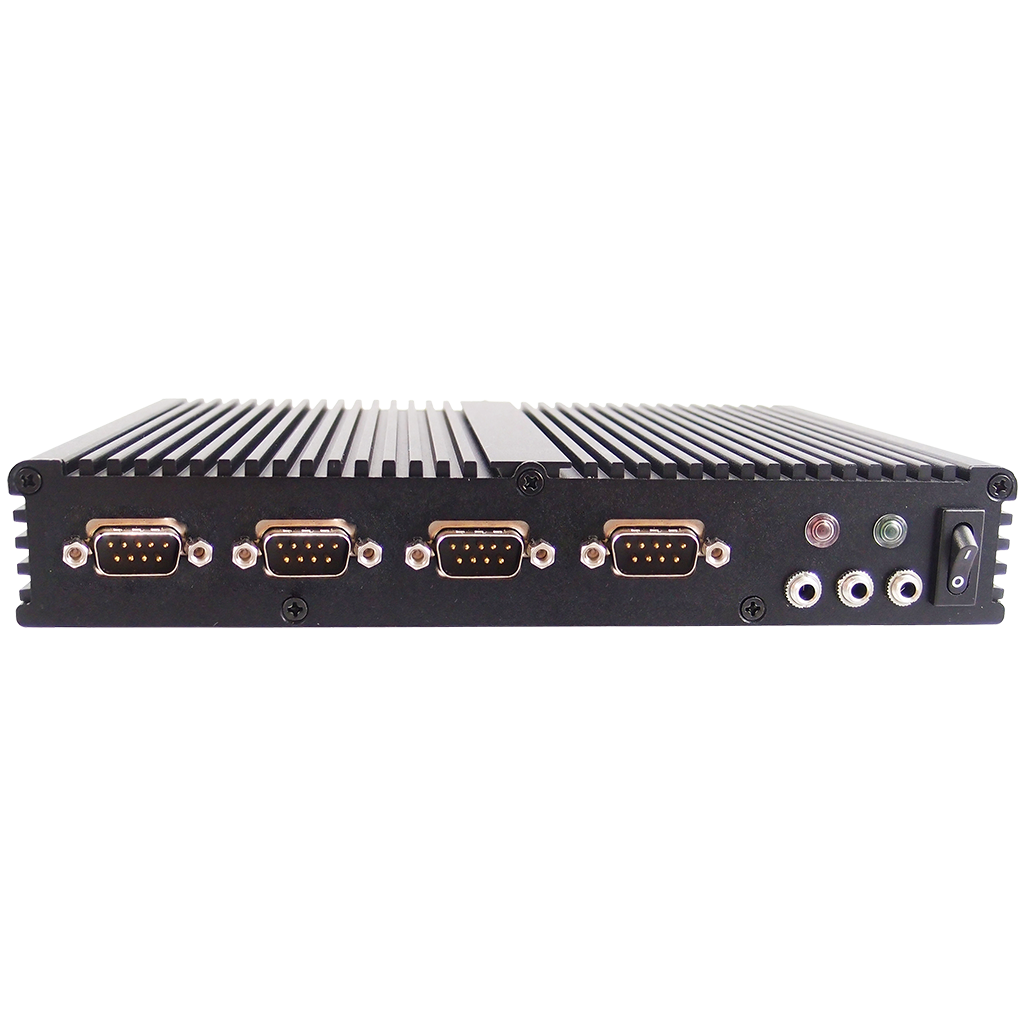

The most eye-catching feature is its four serial ports located on the front I/O panel, which makes easy to connect several serial devices, for example, PLCs, sensors, meters, motors, barcode readers and operator displays in automation application; cameras, sensors and card readers in surveillance application.
Rugged & Fanless
Enclosed within a rugged case, the KBox E-100 Series has great protection against EMI, and ambient temperature. Also it is integrated with passive cooling design for quiet operation. An extended temperature model is available for harsh temperature conditions.
Technische Daten
| Processor | Intel® Atom® E3845 (Quad Core, 2M Cache, 1.91 GHz, FCBGA1170, 10 W TDP) Intel® Celeron® J1900 (Quad Core, 2M Cache, 2.0 / 2.42 GHz, FCBGA1170, 10 W TDP) |
|---|---|
| Main Memory | 1x DDR3L 1333 MT/S SO-DIMM up to 8 GByte |
| Graphics Controller | Intel® HD Graphics |
| Display | 1x HDMI (on rear, 1920 x 1080 @ 60 Hz) 1x VGA (on rear, 2560 x 1600 @ 60 Hz) Dual display support |
| Audio Controller | Realtek ALC888S |
Downloads
Treiber
KBox E-100 Series Chipset Driver for Windows
5.37 MB | 26. März 2026
KBox E-100 Series Graphics Driver for Windows 7
205.63 MB | 26. März 2026
KBox E-100 Series Graphics Driver for Windows 8
223.54 MB | 26. März 2026
KBox E-100 Series Graphics Driver for Windows 10
200.73 MB | 26. März 2026
KBox E-100 Series TXE Driver for Windows
100.43 MB | 26. März 2026
KBox E-100 Series HDA Driver for Windows
236.05 MB | 26. März 2026
KBox E-100 Series LAN Driver for Windows
22 MB | 26. März 2026
KBox E-100 Series USB 3.0 Driver for Windows 7
6.78 MB | 26. März 2026
KBox E-100 Series Serial IO Driver for Windows
1.9 MB | 26. März 2026
KBox E-100 Series COM Patch File
4.72 MB | 26. März 2026
Services & Add-ons
Advantages of Kontron Industrial Computers
Better overall specifications than competitions
One-stop-shop integration service
Stable long-term availability
Flexible customization
Quick lead time
