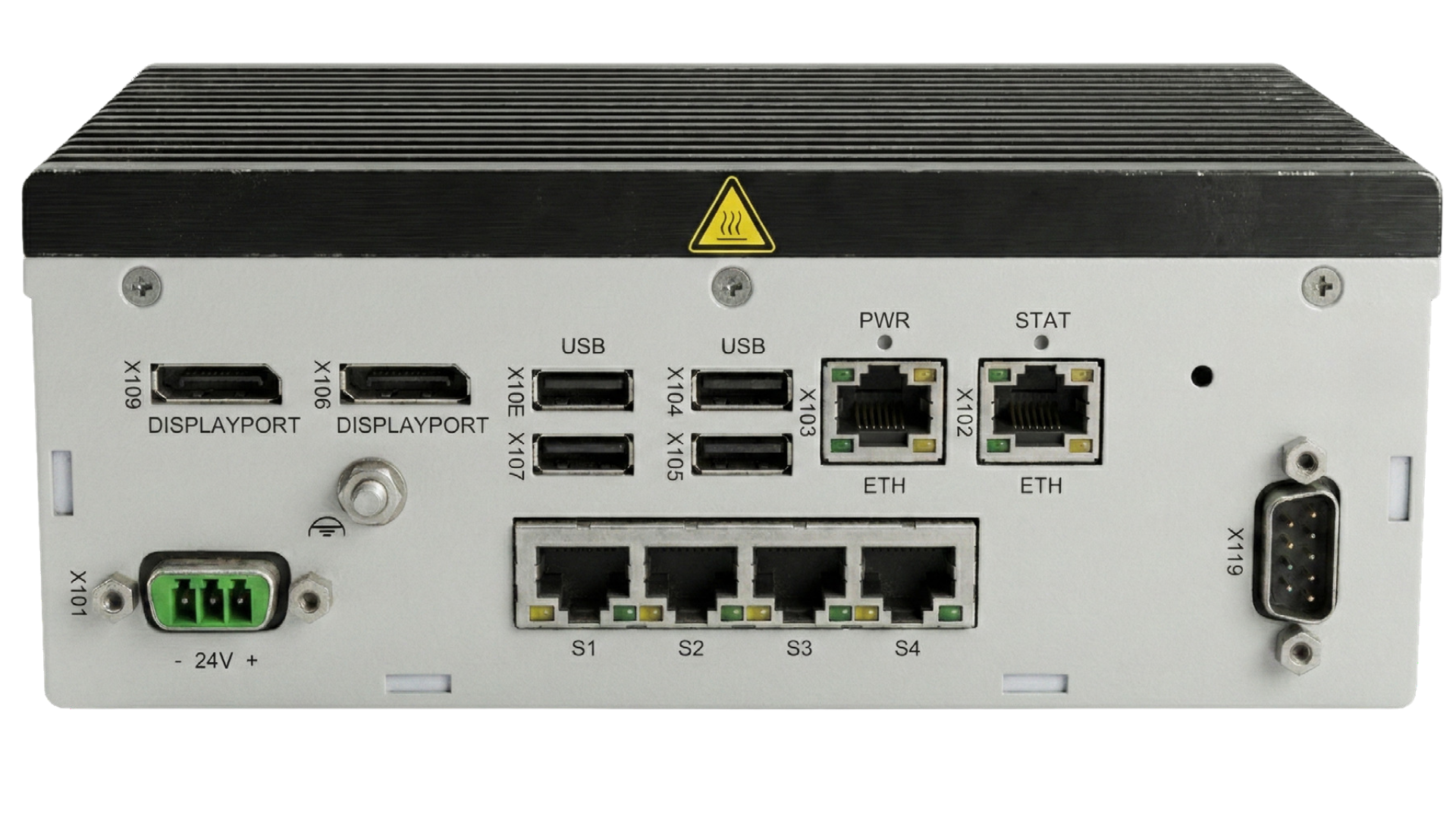

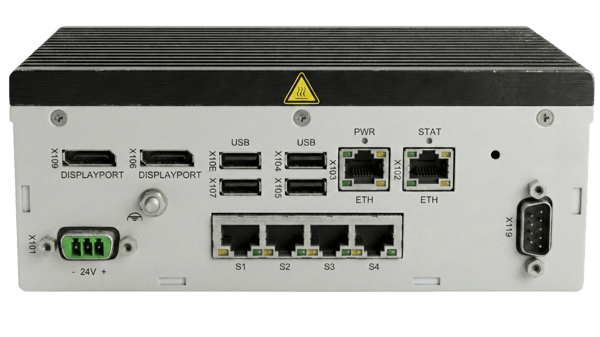

KBox A-151 EAI
Industrial Edge AI Platform with Integrated SiMa.ai Acceleration
Spezifikationen
- Physical AI Focused: Built for real-time, multimodal interaction with the physical world.
- Integrated SiMa.ai MLSoC™ Modalix: 50+ TOPS of dedicated hardware AI acceleration
- Scalable Architecture: Available with 13th Gen Intel® Core™ (RPL) or Intel Atom® (EKL)
- Secure & Hardened: Fully integrated design with passive cooling for mission-critical reliability and Palette SDK and Edgematic™ Ready: Seamless deployment of complex, multi-sensor ML models for edge inference.
High-Performance Edge AI Computer for Multimodal Control & Autonomous Systems
The KBox A-151 EAI Series is a high-performance industrial edge AI platform engineered for multimodal control and autonomous systems. Built around the integrated SiMa.ai MLSoC™ Modalix, it delivers 50+ TOPS of dedicated AI acceleration for real-time video analytics, GenAI, LLM, LMM, and CNN workloads.
Its dual-processor architecture combines Intel® Core™ or Intel Atom® performance with deterministic AI inference, ensuring reliable separation of business logic and edge intelligence. Designed for mission-critical environments, the fanless, passively cooled chassis maximizes power efficiency without thermal throttling.
With support for multi-camera 4K video processing and a complete end-to-end vision pipeline, it enables high-fidelity analytics at the edge. Seamless deployment through the Palette™ SDK accelerates development using standard ML frameworks. Scalable memory, flexible I/O, and robust industrial certifications make it ideal for demanding edge applications.
Eigenschaften
| AI Accelerator | MLSoC - Modalix™ AI Performance - 50 TOPS (BF16), INT8, INT16 CPU / APU - 8‑Core ARM Cortex‑A65 @ 1.4GHz CVU - 4‑Core Synopsys ARC EV74 video processor (up to 720 16‑bit GOPS) ISP - ARM Mali-C71AE (supports 8-24 bit RGB/RGB-IR) Video - Encode 4K@60fps (H.264, H.265, MJPEG); Decode 4K@60fps (H.264, H.265, MJPEG, AV1) Memory - 32GB LPDDR5 Storage - 32GB eMMC |
| Processor | RPL Series - Processor: Intel® Core™ i7‑1365UE / i5‑1345UE / i3‑1315UE RPL Series - Graphics: Intel® Iris® Xe Graphics or Intel® UHD Graphics 7680 × 4320 @ 60Hz EKL Series - Processor: Intel® Atom™ x6425RE / x6211E / Celeron® J6413 EKL Series - Graphics: Intel® UHD Graphics 4096 × 2160 @ 60Hz BIOS - AMI® Aptio® V5 |
| Memory | RPL - Up to 64GB DDR5 (2× SO‑DIMM) RPL - Up to 32GB DDR4 (2× SO‑DIMM) |
| Interface | EKL - 6× RJ45 ports Ethernet - Direct‑to‑CPU: 2× 2.5GbE Ethernet - Direct‑to‑Modalix: 4× 1.0GbE USB - 4× USB (RPL Series: USB 3.2 Gen 2 | EKL Series: 2× USB 3.2 + 2× USB 2.0) DisplayPort - 2× DisplayPort Serial - 2× RS232 / 422 / 485 (via D‑Sub 9) LED - Power On Power Input - 3‑pin Phoenix connector |
| Storage | Processor to M.2 SSD - Up to 1TB (128GB, 256GB, 512GB, 1TB) Processor to M.2 SSD - 1× M.2 2280 Key M (PCIe x4 NVMe) |
| Power | - 24 VDC (10–30 VDC input range) |
| Software Support | OS - Debian Linux, KontronOS, Windows 10 / 11 IoT Enterprise SDK - SiMa.ai Palette™ SDK (C++ / Python / GStreamer) & LLiMA™ (GenAI Framework) |
| Mechanical | Chassis - Steel / Aluminum, Fanless design Mounting - DIN Rail (Wallmount, Bookmount) Dimensions - 7.09″ × 2.76″ × 4.84″ (180 × 70 × 123 mm) Weight - Approx. 5 lbs (2.3 kg) |
| Environmental | Operating Temp - 0°C to +50°C (Standard), ‑40°C to +60°C (Extended) Certifications - CE, UL 61010, FCC, CB, RoHS, REACH |
