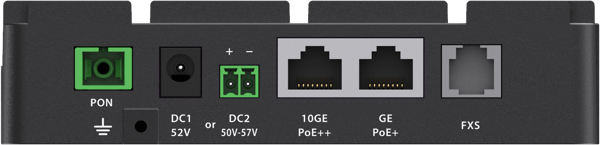

Innbox X24RP
Robust, temperature-hardened, and remotely-powered XGS-PON ONT for indoor or outdoor use
Produktinformationen
Innbox X24RP solves a practical FTTH problem: the best location for the fibre is not always where local power is available. Passive PoE lets the operator position and protect the ONT appropriately, then carry both power and Ethernet over the copper connection.
The temperature-hardened design supports indoor and protected outdoor installations on DIN rail, wall, desktop or within a third-party enclosure. Symmetrical 10 Gbps XGS-PON and multi-gigabit Ethernet preserve premium service performance, while an additional GE port and FXS interface support data and voice use cases. Remote diagnostics and integrated testing provide the operational visibility expected from the Innbox range.
Technische Daten
| WAN | XGS-PON ITU-T G.9807, Class N1/N2/E1; SC/APC; 10 Gbps downstream/upstream; AES-128; FEC; multiple T-CONTs and GEM ports |
|---|---|
| LAN and PoE | 1 x 100/1000/2.5G/5G/10GBase-T RJ-45 with passive PoE PD; 1 x GE RJ-45 |
| Fibre | SC/APC connector; integrated FTU not specified in the datasheet |
| Bridging | IEEE 802.1D/802.1Q; traffic management; IEEE 802.1p and DSCP QoS; VLAN processing/tagging; IGMP v2/v3 snooping; MAC learning/aging; broadcast storm control |
| Voice | 1 x FXS RJ-11 for POTS; SIP-compatible VoIP described |
