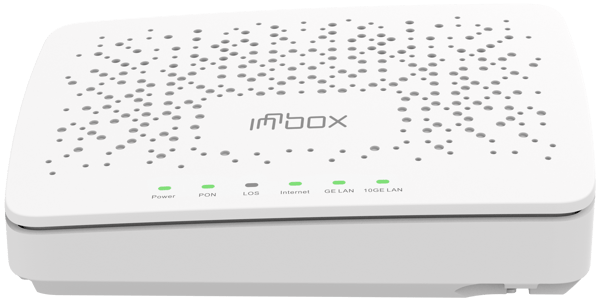

Innbox X24
Standardised 10 Gigabit access, personalised for operator architectures and easier assurance.
Produktinformationen
Innbox X24 is more than a compact 10 Gigabit ONT. It is designed to make premium FTTH services easier to install, operate and troubleshoot while preserving freedom in the choice of home gateway and Wi-Fi architecture.
The integrated fibre-termination unit protects the connector, splice and fibre storage, reducing exposure to accidental handling. A 10/5/2.5/1GE LAN port supports multi-gigabit service tiers, while a dedicated version adds a second GE port for an additional service or hand-off. Integrated speed testing and remote diagnostic functions give the operator visibility at the fibre endpoint, helping determine whether a performance issue is in the access network or downstream in the customer’s router or Wi-Fi environment.
Technische Daten
| WAN | XGS-PON ITU-T G.9807, Class N1/N2/E1; 10 Gbps downstream and upstream |
|---|---|
| LAN | 1 x 10/5/2.5/1GE; optional 1 x GE in dedicated version |
| Fibre | SC/APC; integrated FTU; AES-128, FEC, multiple T-CONTs and GEM ports |
| Bridging | IEEE 802.1D/.1Q, VLAN processing, QoS, IGMP v2/v3 snooping, 4,096 RG MAC entries |
| Management and Diagnostics | OMCI, UPnP, Web, TR-069, TR-143, integrated speed test; optional IPERF and TCP dump |
