Innbox G93 datasheet EN 160
377.6 KB | 29. Oktober 2026
Innbox G93
GPON access, routing, voice, and Wi-Fi 6 in one operator-managed home gateway
Produktinformationen
Innbox G93 combines GPON access, routing, voice and Wi-Fi 6 in one operator-managed home gateway. It is designed to translate gigabit fibre into reliable wired and wireless services across the home, including multiple UHD video streams.
The embedded EasyMesh controller works with compatible agent access points to extend coverage and support roaming without service interruption. Four GE LAN interfaces serve wired devices, while the G93T version adds a 2.5GE LAN interface. Two FXS ports support voice services, and USB can be used for backup connectivity or selected local applications. The integrated FTU protects the fibre endpoint, while TR-143 and integrated speed testing improve support visibility.
Technische Daten
| WAN | GPON ITU-T G.984.5, Class B+; SC/APC; 2.5 Gbps downstream / 1.25 Gbps upstream; AES-128; FEC |
|---|---|

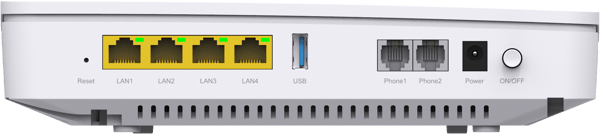

| LAN and PoE | 4 x GE RJ-45; optional 1 x 2.5GE RJ-45 on G93T; 1 x USB 2.0; no PoE specified |
| Fibre | Integrated FTU; SC/APC; protects fibre termination, coiling and splice |
| Bridging | IEEE 802.1D/802.1Q; traffic management; IEEE 802.1p and DSCP QoS; VLAN processing/tagging; IGMP v2/v3 snooping; MAC learning/aging; broadcast storm control |
| Voice | 2 x FXS RJ-11; G.711, optional G.729ab; SIPv2/RTP; caller ID; T.38 fax |
Downloads
Handbücher
General Safety Instruction
582.34 KB | 6. Juli 2026
Technische Spezifikation
Innbox CPE leaflet EN
381.96 KB | 29. Oktober 2026
