Innbox G104
Wi-Fi 7, multi-gigabit Ethernet, and EasyMesh control in one integrated GPON home gateway
Produktinformationen
Innbox G104 brings Wi-Fi 7, multi-gigabit Ethernet and EasyMesh control to an integrated GPON home gateway. It enables operators to modernise the in-home experience without changing the underlying GPON access network.
The dual-band Wi-Fi 7 access point delivers a cumulative data rate up to 3,600 Mbps and works with compatible EasyMesh agents for extended whole-home coverage and roaming. A 2.5GE LAN port and four GE ports provide flexible wired connectivity, while FXS and USB support voice and additional applications. The integrated FTU protects fibre termination, and tactile markings help make the physical interface more accessible.
Technische Daten
| WAN | GPON ITU-T G.984.5, Class B+; SC/APC; 2.5 Gbps downstream / 1.25 Gbps upstream; AES-128; FEC |
|---|---|

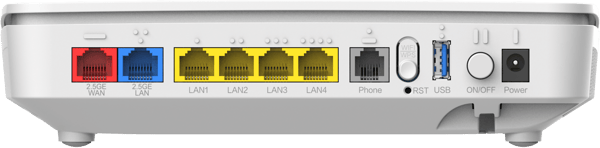

| LAN and PoE | 1 x 2.5GE RJ-45; 4 x GE RJ-45; 1 x USB 3.0; no PoE specified |
| Fibre | Integrated FTU; SC/APC; protects fibre termination, coiling and splice |
| Bridging | IEEE 802.1D/802.1Q; traffic management; IEEE 802.1p and DSCP QoS; VLAN processing/tagging; IGMP v2/v3 snooping; MAC learning/aging; broadcast storm control |
| Voice | 1 x FXS RJ-11; G.711, optional G.729ab; SIPv2/RTP; caller ID; T.38 fax |
