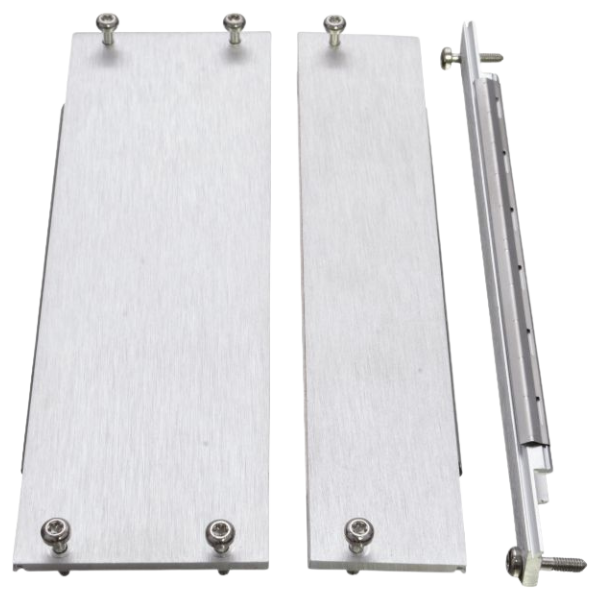

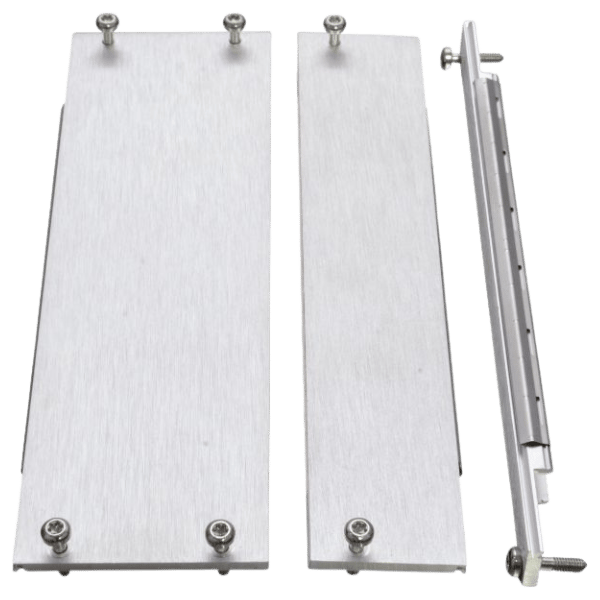

Front Panels

Hartmann Electronic provides a wide selection of front panels compliant with IEC and IEEE standards.
Spezifikationen
  • Compliant with IEC and IEEE standards
  • Available in various sizes and configurations
  • Made of durable chromated aluminum
  • Equipped with EMC spring gasket for shielding
  • Includes M2.5 neck collar screws for easy installation

These panels are designed for various modular systems, including CompactPCI, cPCI Serial, and VPX, offering flexibility in system integration.

Hartmann Electronic's front panels are designed to meet international standards, ensuring compatibility and reliability in various modular systems. The panels are available in different sizes and configurations to suit specific system requirements.

Eigenschaften

Features Form Factors: 3U and 6U

Widths: 2HP to 84HP

Material: Chromated aluminum, 2.5 mm thickness

Standards Compliance: IEC 60297-3-101, -102, -103; IEEE 1101.1 and 1101.10/11

Surface Finish: Various options available

Additional Features:
• EMC spring gasket for shielding
• M2.5 neck collar screws (self-retaining) installed

Part Numbers:
• C100.63022: Front panel 3U/2HP
• C100.66022: Front panel 6U/2HP
• C100.63842: Front panel 3U/84HP
• C100.66122: Front panel 6U/12HP"
