EvoTRAC-P101

Rugged Compact System

Produkt Vorschaubild

Produktinformationen

The EvoTRAC-P101 is a highly versitale compact platform featuring the Intel i7-5650U Dual-Core Processor, with four RJ45 Ethernet interfaces, dual USB 3.0, dual USB 2.0, and dual DVI video ports. The system is designed to fit in small spaces (such as the glove compartment box) and includes a removable 2.5" SSD holder for quick access to the data. An integrated in-vehicle power supply is included along with GPIO and RS232 serial ports. Configured with Ubuntu 16.04 LTS, the platform is ready to use for your application requirements.

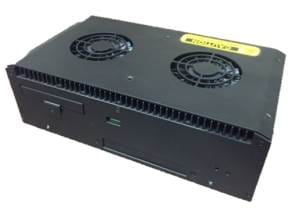

Product Image 1

Technische Daten

Dimensions (H x W x D)10.00”W x 5.75“D x 3.00”H
CoolingForced Air Cooled
ProcessorCOMe-cBL6 i7-5650U (2C 2.2GHz, 15W)
8GB RAM
I/Os4x GbE
2x USB 2.0
2x USB 3.0
2x DVI
2x RS232
1x GPIO
1x Power Input (removable fuse)
Temperature-20°C to +70°C (operating)

Downloads

Datenblatt

PDF

EvoTRAC-P101

355.39 KB | 14. Oktober 2026

Handbücher

PDF

General Safety Instruction

582.34 KB | 6. Juli 2026

Service

PDF

Kontron Services Brochure

476.99 KB | 6. Juli 2026

Use Case

EvoTrac-S1901

Kundenportal

Dieser Bereich ist exklusiv für Kontron-Kunden. Nach der Registrierung erhalten Sie Zugang zu BIOS-Images, Product Change Notifications (PCNs), 3D-Modellen für CAD und Software-Entwicklungstools.

Anmeldung im Kundenportal
