Ethernet Option

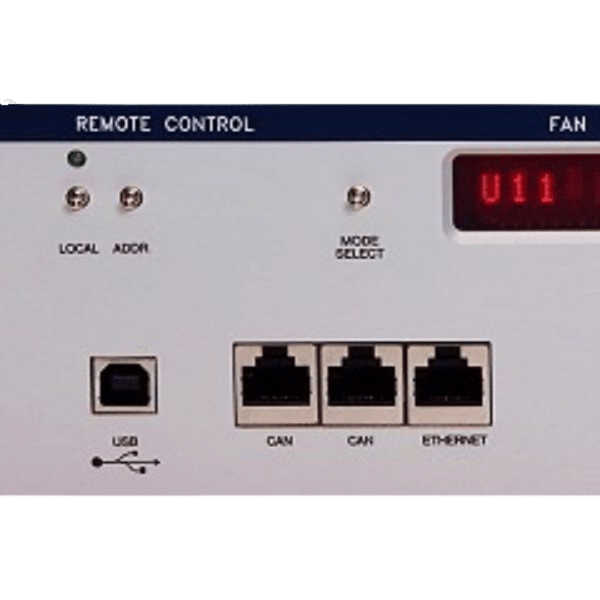

The Ethernet Option is a “combo interface” add-on for Wiener chassis, crates, and power supplies that enables remote monitoring and control via standard Ethernet networks.
- Easy integration into standard LANs
- Auto 10/100 Mbps Ethernet
- Embedded web server for browser-based control and monitoring
- SNMP v2c interface for full remote access
- Combined interface versions with CAN-bus / RS232 / USB
Produktinformationen
The Ethernet Option allows Wiener crates and power supplies to be controlled and monitored over a LAN. Using standard Ethernet and TCP/IP protocols, the interface provides a web GUI and SNMP access to retrieve real-time information (voltages, currents, temperatures, fan speeds), issue control commands (ON/OFF, reset, fan speed), and integrate into networked monitoring systems. This simplifies remote operation and supervision of experimental setups or distributed instrumentation.
Technische Daten
| System | WIENER VME / VME64x / VXI crates (4000 and 6000 families); PL5xx power supplies |
|---|---|
| Interfaces & Protocols | Ethernet (TCP/IP), CAN-bus and RS232 / USB in combo interface versions |
| Ethernet | Auto-switching between 10 Mbps and 100 Mbps |
| Control & Monitoring | Embedded WWW server (port 80) for basic browser-based control: status, voltages, currents, temperature, fan speeds, ON/OFF and SYSRES |
| Management & Control | SNMP v2c over TCP/IP (port 69) for full parameter access to chassis, bin and power supplies |
