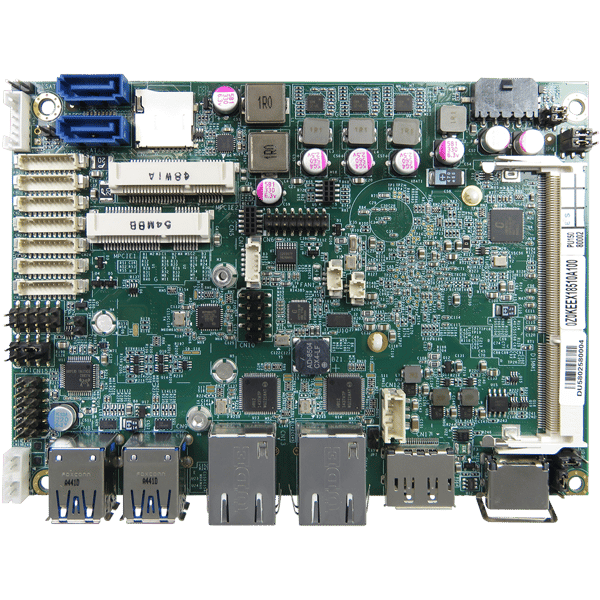

ECX-BSW
3.5” Single Board Computer with Intel® Celeron® N3160 SoC Processor
- 1x LVDS / VGA, 1x DP, 1x HDMI for triple display support
- 2x GbE LAN for Ethernet
- 4x USB 3.2 Gen 1, 2x USB 2.0, 2x RS232/422/485, 4x RS232, 8x DIO for peripherals
- Up to 2x SATA 3.0, up to 1x mSATA, 1x Micro-SD Cage for storage
- Up to 2x mPCIe for expansion
Extended Temperature Support
ECX-BSW is a 3.5" single board computer equipped with Intel® Celeron® N3160 SoC Processor and offering a performance-improved option and cost-efficient solution.
Variety of Peripheral Application Support
ECX-BSW supports a variety of I/O interfaces and storage / expansion slots, allowing system integrators to easily develop an appropriate system based on possible application scenarios. The ECX-BSW features 1x DP, 1x HDMI, 1x VGA / 1x LVDS for triple display support, 4x USB 3.2 Gen 1, 2x USB 2.0, 6x COM, 8x DIO for peripheral applications, 2x GbE LAN, up to 2x mPCIe expansion slots for wired / wireless connectivity, and up to 2x SATA, up to 1x mSATA and 1x micro SD card cage for storage support.
Extended Temperature Application Possible
An extended temperature model is available allowing for operation under extreme high, low or radically fluctuating temperatures, which is common in industrial environments.
Technische Daten
| Processor | Intel® Celeron® N3160 (Quad Core, 2M Cache, 1.60 / 2.24 GHz, FCBGA1170, 6 W TDP) |
|---|---|
| Main Memory | 1x DDR3L 1600 SO-DIMM Socket up to 8 GByte |
| Graphics Controller | Intel® HD Graphics 400 |
| Display | 1x LVDS (24-bit, 2-ch, 1920 x 1200 @ 60 Hz) 1x DP (on rear, 3840 x 2160 @ 30 Hz / 2560 x 1600 @ 60 Hz) 1x HDMI (on rear, 2560 x 1600 @ 60 Hz) 1x VGA (by header, 1920 x 1200 @ 60 Hz) Triple display support (LVDS + HDMI + DP or VGA + HDMI + DP) |
| Audio Controller | Realtek ALC888S |
