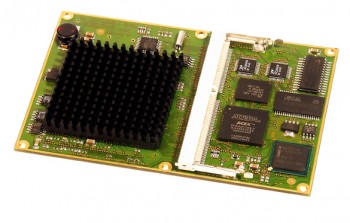

EB8245

Freescale PowerPC MPC8245 based Computer-On-Module. Performant low power computing core.

PCI 32bit/33MHz
Up to 512MB SDRAM, 32MB Flash, 1MB SRAM
Fast Ethernet 10/100Base-Tx
Extended temperature range -40 to +85°C (optional)
2 Terminal ports (Rx/Tx)

Produkt anfragen Datenblatt herunterladen

Produktinformationen

Featuring the highly integrated Freescale PowerPC MPC8245, the EB8245 E²Brain module delivers number cruncher performance and a comprehensive set of features at a remarkably low power consumption for all kind of embedded applications.

Optional with BrainCAP heat sink and EMI protection device.

Comprehensive board support packages (BSP) are available for Linux and VxWorks.

More information can be found at the E²Brain homepage: www.e²brain.com

Technischer Support

Technische Daten

CPU	Freescale MPC8245
CPU Clock	330 MHz
Cache	16 kByte instruction, 16 kByte data
BIOS	Bootloader with Ethernet support
DRAM	Up to 512 MByte/SDRAM
