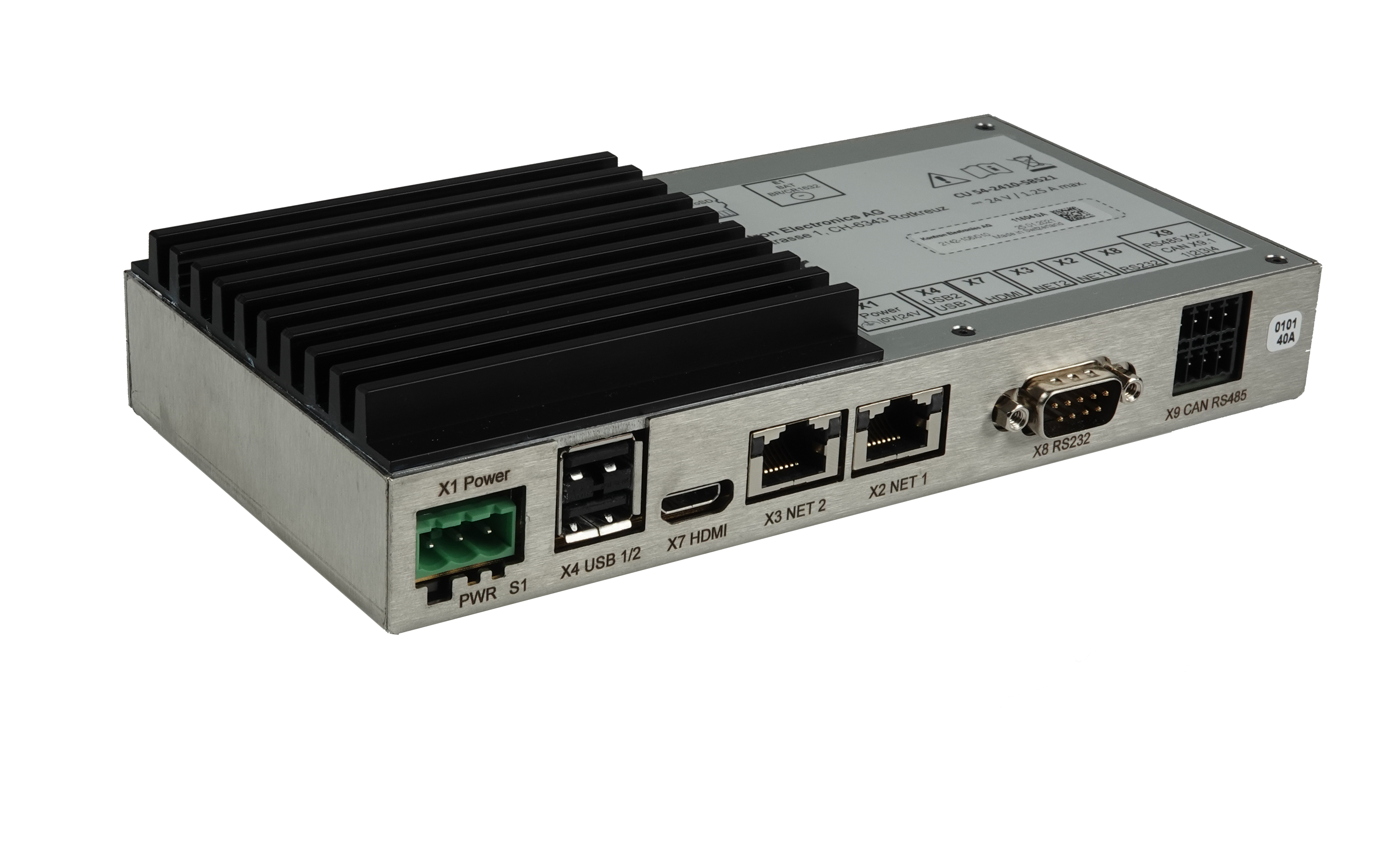

CU Control Unit 5x
Robuster Industrie-PC mit skalierbarer Leistung basierend auf Intel Atom®
Spezifikationen
- Intel Atom® E3800, 2 Core™ 1,33 GHz, 4 Core™ 1,91 GHz
- Erweiterungsstecker für die Realisierung von Zusatzmodulen
- Betriebssystem: Linux Debian, Microsoft Windows 10, IoT Enterprise
Eigenschaften
| CPU | Intel Atom® E3800 2-4 Cores™ 2 Core™ 1.33 GHz /4 Core™ 1.91 GHz |
| DRAM DDR3L | 2/4 GByte, SO-DIMM slot |
| eMMC | 16/32 GByte |
| SRAM/FRAM | -/128 kByte |
| SD CARD | microSD-slot (up to SDXC-format) |
| USB | 2x USB 2.0 (Host) |
| Ethernet | 2x Ethernet (10/100/1000) independent |
| HDMI | 1x HDMI Type C |
| CAN | 1x CAN (isol.) |
| Serial Ports | 1x RS232, 1x RS485 (isol.), Profibus |
| Control | Power button, programmable status LED |
| Watchdog | External Watchdog, programmable |
| RTC | Battery buffered RTC |
| BIOS | UEFI BIOS |
| Construction | IP20, stainless steel |
| Cooling | Fanless |
| Dimensions (H x W x D) | 185.6 x 92 x 38.2 mm (without connectors and rail clamp) |
| Weight | 0.66 kg |
| Mounting | For mounting on 35 mm mounting rail acc. To EN 60715 |
| Power | 24 VDC ±20 % |
| Power Consumption | Typ. 3.6 W to 30 W (depending on processor load and interface activity) EN 61000-6-2 (immunity) EN 61000-6-4 (emission) |
| Operating Temperature | 0 °C ... +55 °C |
| Storage Temperature | -20 °C ... +70 °C |
| Humidity | 10 %-90 % @ 39 °C, non-condensing |
| Altitude | Up to 9.800 ft (3000 m) |
| Operating System | Linux Debian Microsoft Windows 10 IoT Enterprise |
| SoftPLC (Option) | CODESYS V3, Target Visu, Web Visu |
| Protocols (Option) | EtherCAT, Modbus TCP/RTU, Profinet, Profibus, Ethernet IP, CANopen, OPC UA, IIoT Libraries (MQTT, HTTPS; Azure, AWS, Google..) |
| Certifications | CE, UL 61010-1 & UL 61010-2-201 |
