CPS3003-SA Dieses Produkt ist Legacy
3rd Gen. Intel® Core™ i7 3U CPCI-S.0 CPU Board
Mouseover Zoom loading...
Spezifikationen
- Latest Intel® Core™ technology, quad- and dual-core processors
- Up to 16 GB DDR3 memory with ECC
- Up to 32 GB SATA NAND Flash
- SATA 6Gb/s, USB3.0 and PCI Express® 3.0
- Up to 3x independent graphics outputs
- TPM support
- Version for extended temp. E2 (-40°C up to +85°C)
- Broad range of software support: Linux, VxWorks, Windows XP, Windows 7, Windows Embbeded Standard 7 ...

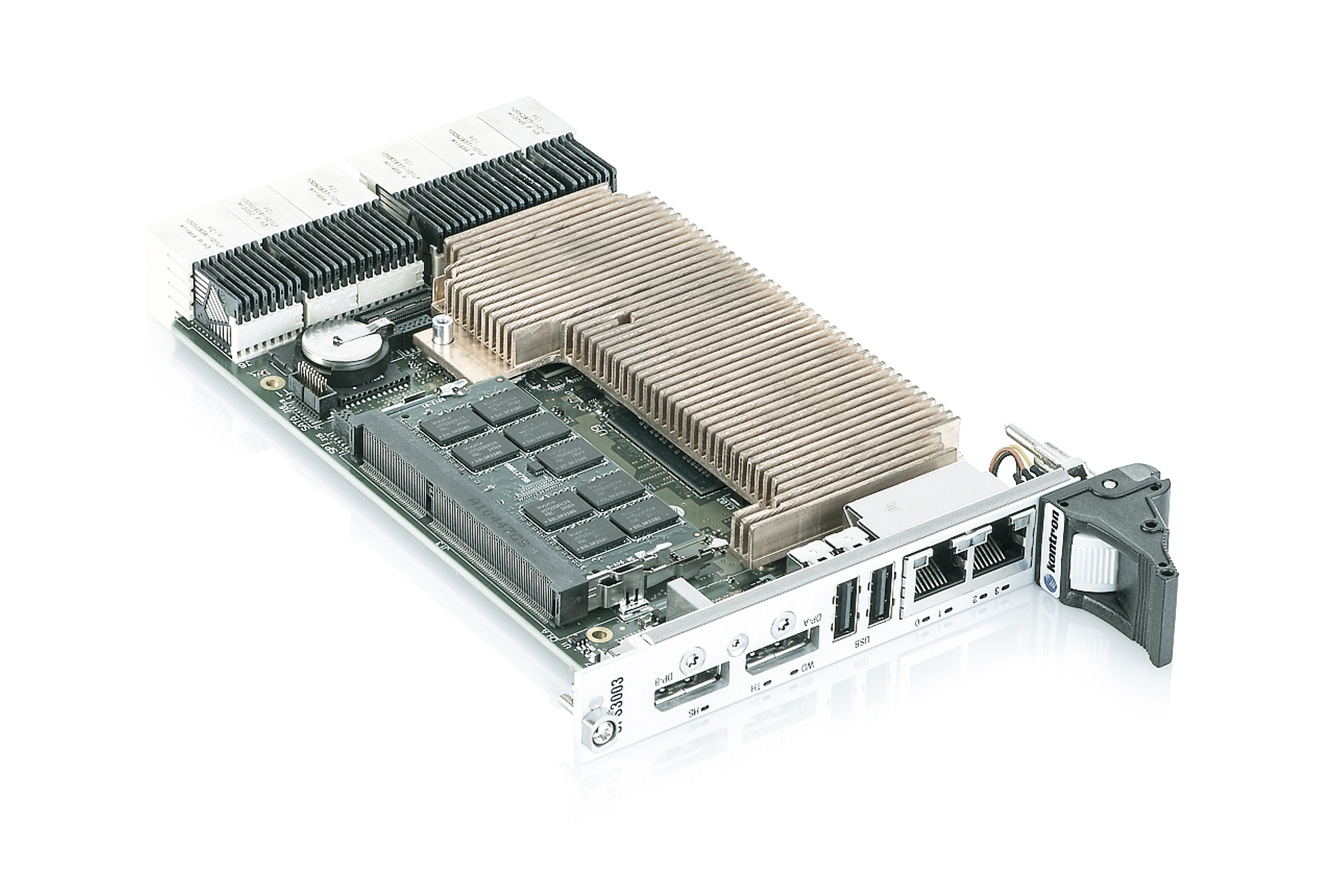

The CPS3003-SA is a highly integrated 3U CPCI-S.0 CPU board based on Intel®’s 3rd Generation Core™ i7 technology. The CPU board comes with a multi-core CPU package scalable from the dual-core ULV 1.7 GHz Intel® Core™ i7-3517UE up to the quad-core 2.1 GHz i7-3612QE processor.
The powerful PCH Intel® QM77 provides a huge number of interfaces which are either routed to front, onboard or backplane connectors. Memory-demanding applications can make use of up to 16GB 1600MHz DDR3 SDRAM with Error Checking and Correction (ECC). As another security feature the CPS3003-SA provides a Trusted Platform Module (TPM).
For graphics intensive applications the CPS3003-SA offers an excellent graphics performance with integrated DirectX®11, OpenGL 3.1 and OpenCL 1.1 support. Additionally, now three independent graphics outputs are supported.
At the front panel the CPU board offers communication interfaces such as two DisplayPort, two USB 2.0 and two Gigabit Ethernet ports. Serial interfaces available via the backplane connectors P1 to P5 are ten USB ports, four SATA interfaces, one DisplayPort, 17x PCI Express® links and two Gigabit Ethernet interfaces. Optionally, via the P6 backplane connector, the CPS3003-SA is able to offer Rear I/O functionality.
Eigenschaften
| Processor | 3rd Generation Intel® Core™ i7 processor (22nm technology): - i7-3612QE: Quad-Core 2.1 GHz, SV, 6MB L3 cache (shared instruction/data cache, shared among all cores) - i7-3555LE: Dual-Core 2.5 GHz, LV, 4MB L3 cache (shared instruction/data cache, shared among all cores) - i7-3517UE: Dual-Core 1.7 GHz, ULV, 4MB L3 cache (shared instruction/data cache, shared among all cores) |
| Main Memory | Up to 16GB dual-channel DDR3 SDRAM running at 1600 MHz, with ECC, via two SODIMM sockets |
| Graphics | High-performance 3D graphics controller integrated in the processor: - Support for up to three independent graphics outputs - Supports digital display resolutions up to 2560 x 1600 pixels @ 60 Hz - Dynamic Video Memory Technology (DVMT) |
| Watchdog | FPGA-based, timeout ranging from 125ms to 4096s programmable in 16 steps, IRQ, Reset, dual-stage confi guration |
| USB | 2x USB 2.0 ports, 4-pin standard USB connectors |
| Ethernet | 2x RJ-45 with integrated LEDs (ACT, SPEED) |
| Compliance | Compliant to: Safety: IEC60950-1, EN60950-1, UL94-V0 EMC: EN55022 Class B, EN55024, EN61000-6-1 / -2 / -3 / -4, EN50121-3-2 (Railway) Designed to meet or exceed: Safety: UL60950-1, CSA 22.2 No. 60950-1 EMC: FCC, VCCI, BSM |
| Dimensions (H x W x D) | 3U 4HP/8HP/9HP, 100 x 160 mm |
| Weight | CPS3003-SA with copper heat sink: 530 g CPS3003-SA with aluminium heat sink: 330 g |
| MTBF | 281,447 h acc. to MIL-HDBK-217 FN2, Ground Benign, controlled at 30°C |
| Power Consumption | CPS3003-SA with i7-3555LE dual-core 2.5 GHz typ. 21W CPS3003-SA with i7-3612QE quad-core 2.1 GHz typ. 29W |
| Operation Temperature | 0°C to +60°C standard -40°C to +85°C extended temperature E2 (with ULV processor) |
| Humidity | 93% RH at 40°C, non-condensing (acc. to IEC 60068-2-78) |
