cPCI 6U AC 500W Datasheet
1.45 MB | 26. März 2026

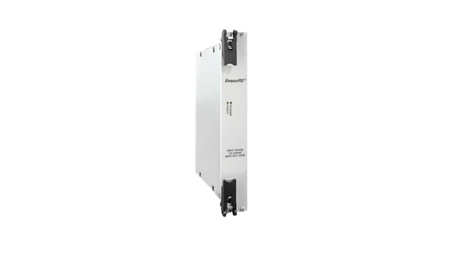

cPCI 6U AC 500W
The cPCI 6U AC 500W is a CompactPCI (cPCI) power supply module with wide-range AC input, delivering up to 500 W in a 6U form factor.
- Hot-swap capable, redundancy and current share support
- Wide AC input (90–264 VAC) with PFC
- Four output rails with high current capacity (+5 V/60 A, +3.3 V/60 A, +12 V/14 A, –12 V/4 A)
- Minimum load requirement on +5 V (4 A)
- Efficiency ~77 % typical
Produktinformationen
It supports hot-swap and redundancy and is compliant with the PICMG power interface specification.
The cPCI 6U AC 500W module offers a robust AC-input power solution for CompactPCI systems in demanding industrial, telecom or defence applications. Its wide input voltage range and strong output currents enable use in redundant and fault-tolerant configurations, while the integrated protections and hot-swap capability enhance system availability and safety.
Technische Daten
| Features | Form Factor: 6U × 8HP, CompactPCI format, 160 mm deep Input: 90-264 VAC wide range with PFC. Outputs: +5 V/60 A, +3.3 V/60 A, +12 V/14 A, –12 V/4 A; Minimum load on +5 V: 4 A. Efficiency: ~77 % typical. Operating Temperature: –30 °C to +70 °C (derated to 50 %). Storage Temperature: –40 °C to +85 °C. Cooling: Air cooling, at least 800 LFM airflow. Connector: P47 (47-pin) for outputs/management. Fully PICMG compliant |
|---|
