cPCI 3U DC 250W Datasheet
1.87 MB | 26. März 2026

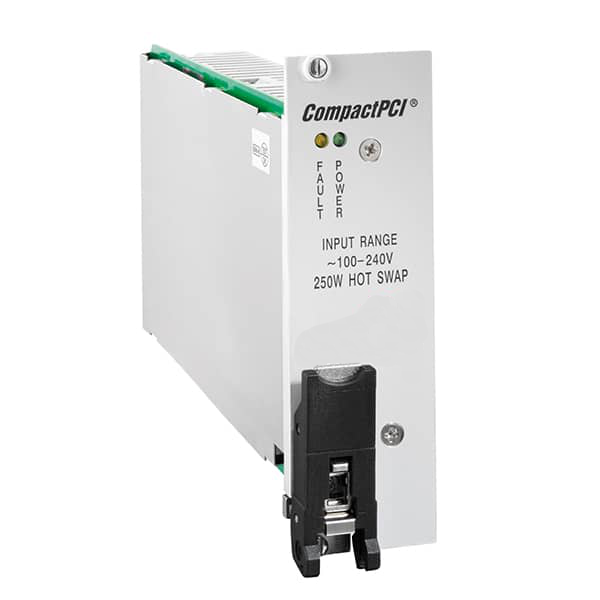

cPCI 3U DC 250W
The cPCI 3U DC 250W is a CompactPCI (cPCI) power supply module for DC-input operation, delivering up to 250 W in a 3U form factor with 8HP width, including hot-swap, redundancy support & current share bus, fully compliant with PICMG power supply standards
- Hot-swap capable, redundancy and current share support
- Wide DC input (18–36 VDC)
- Four output rails with significant current on +5 V and +3.3 V
- Minimum load requirement on +5 V (2 A)
- Efficiency ~74–77 % typical
Produktinformationen
The cPCI 3U DC 250W module provides a compact, robust DC power supply solution for CompactPCI systems in demanding industrial, telecom or defence applications. With a wide input voltage range of 18-36 VDC, it is suitable for many DC-bus environments. Its strong output rails, hot-swap and redundancy capabilities, combined with a bi-colour status LED, make it ideal for high-availability systems requiring modular power components.
Technische Daten
| Features | Form Factor: 3U × 8HP, CompactPCI format, 160 mm deep Input: 18-36 VDC wide range, nominal 24 VDC Output Rails & Currents: +5 V/33 A, +3.3 V/33 A, +12 V/5.5 A, –12 V/1 A; Minimum load on +5 V: 2 A Efficiency: Typical 74-77 % Operating Temperature: –40 °C … +70 °C (derated to 60 %) Storage Temperature: –40 °C … +85 °C Cooling: Air cooled, at least 600 LFM airflow Connectors: P47 (47-pin) for outputs/management Protection & Control: Hot-swap capable, redundancy support, current share bus, status LED (bi-colour) |
|---|
