CP348 Neu

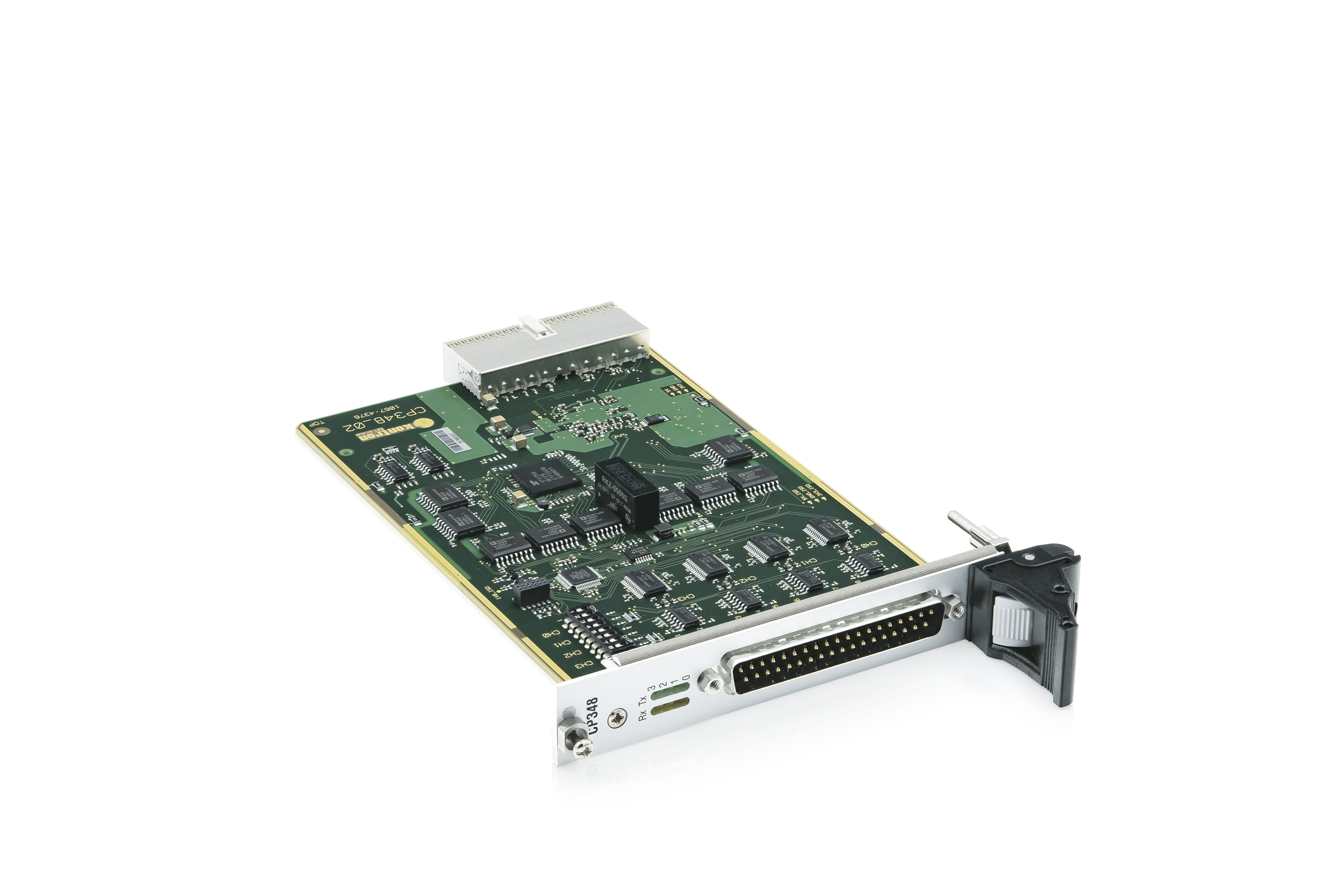

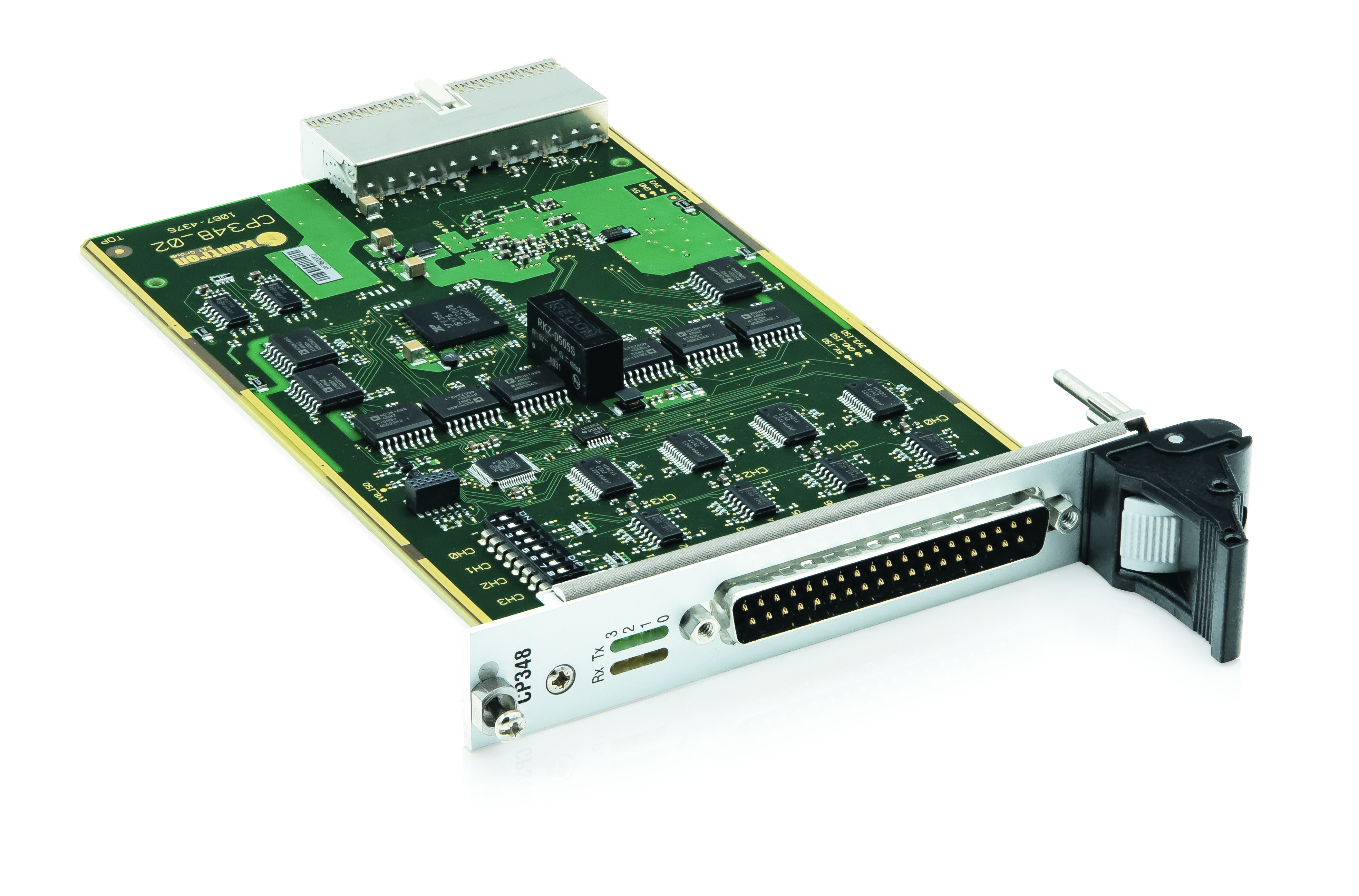

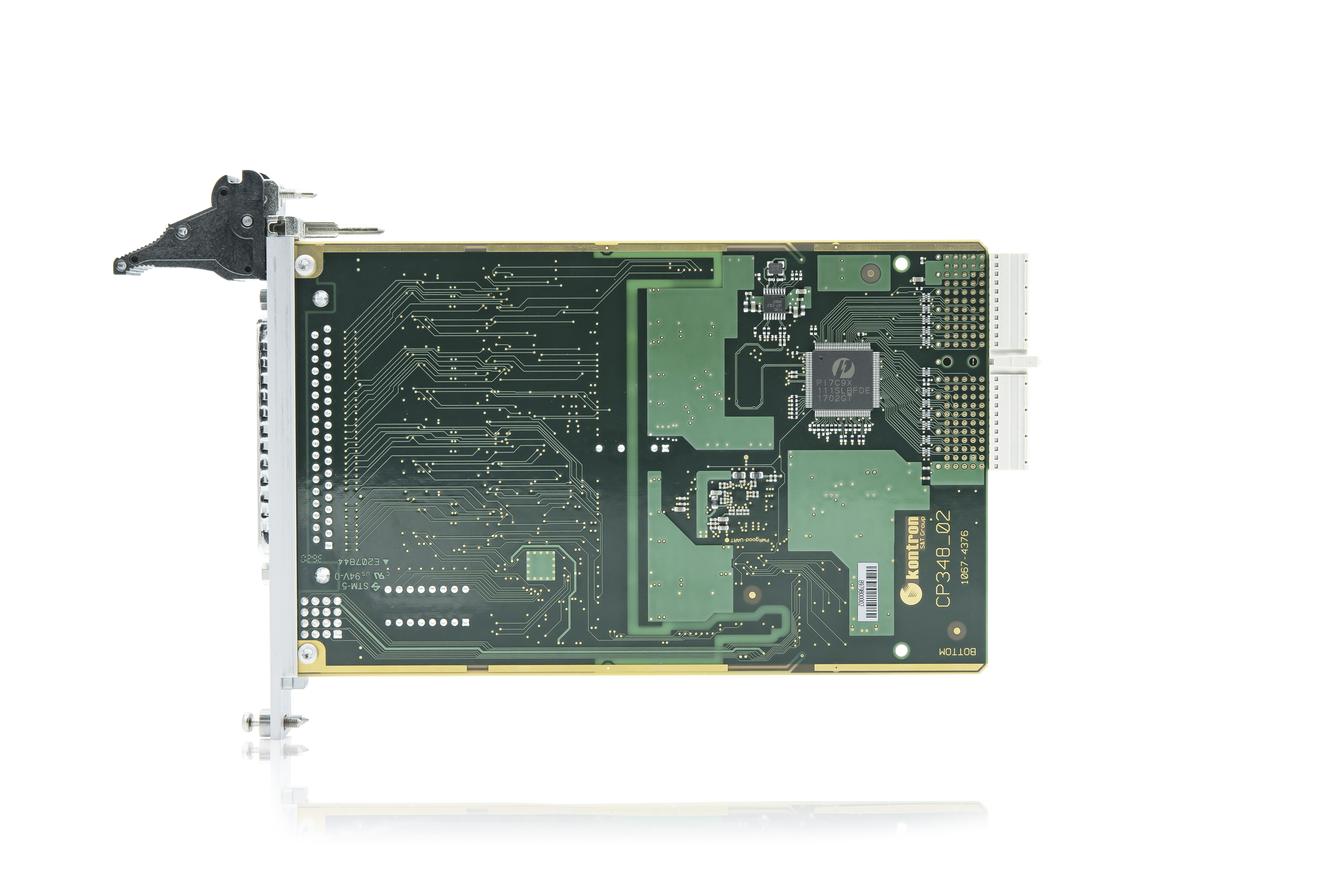

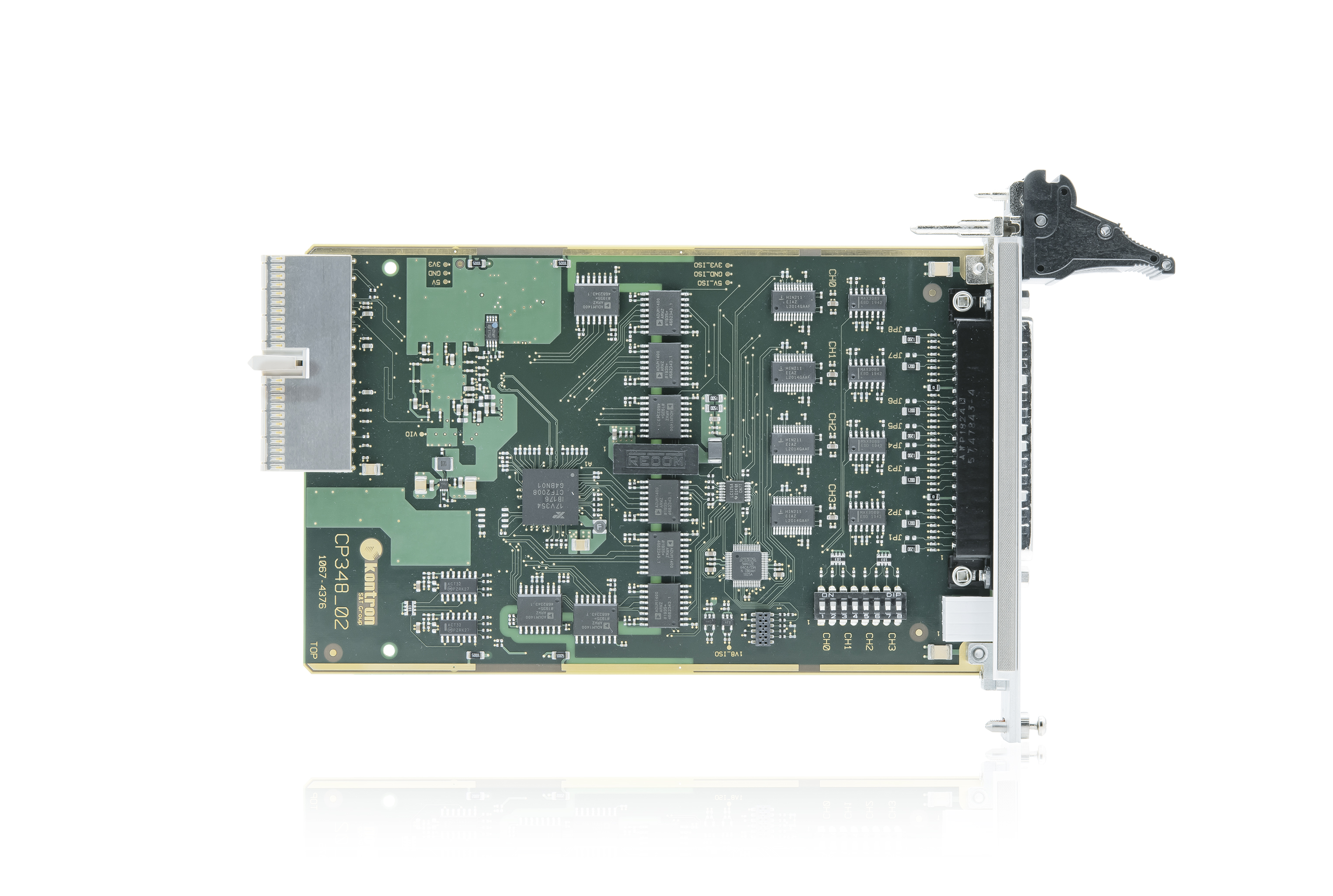

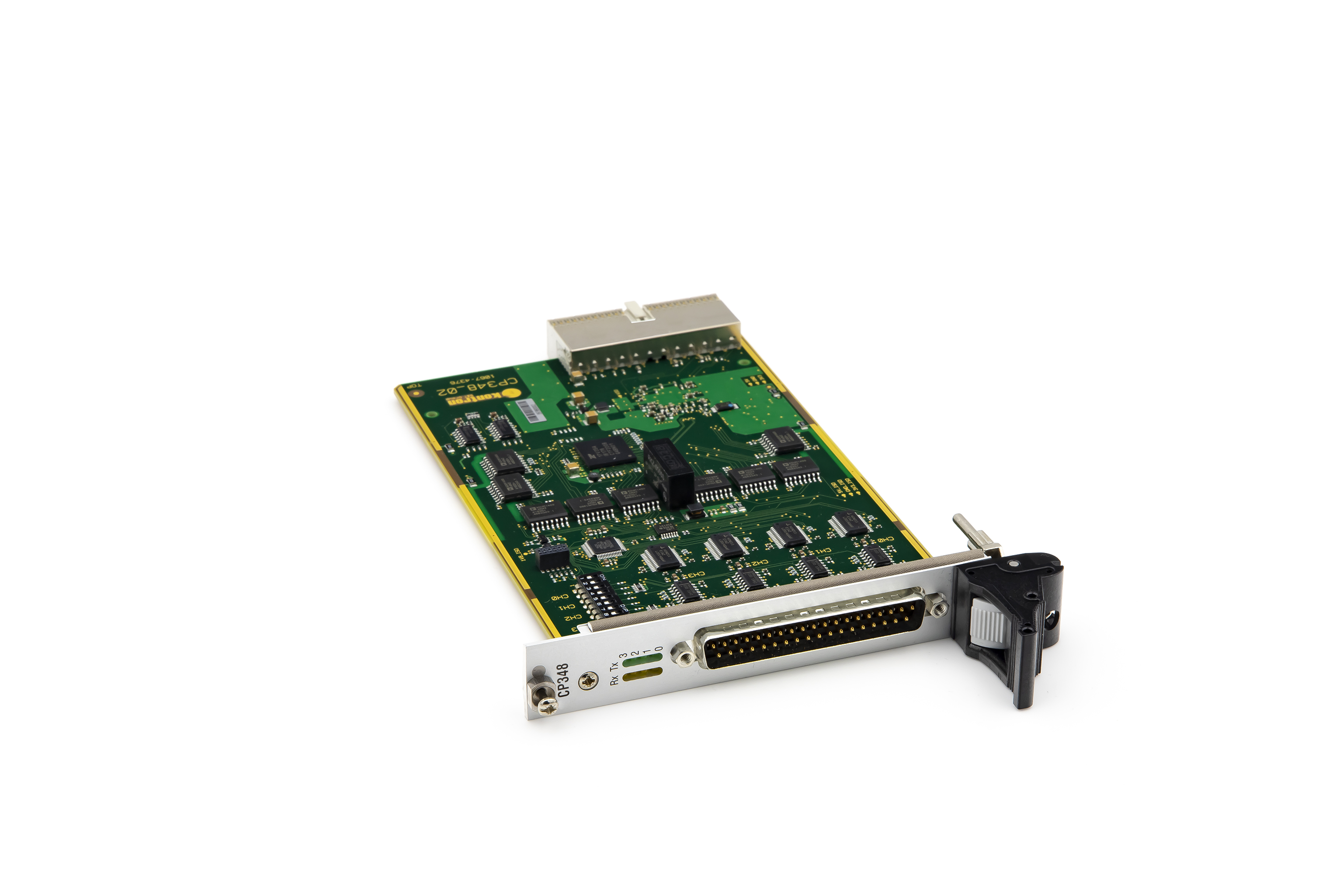

Quad serial 3U CompactPCI controller board
Mouseover Zoom loading...
Spezifikationen
  • Exar Quad UART with broad OS support
  • RS232, RS422, RS485, per channel configurable
  • Isolated
  • Widely compatible to CP347
Datenblatt herunterladen

4 channels, UART 16550 compatible

CP348 is optimized for plug&play use, based on Exar's fully UART compatible low power chip.

►High Performance Quad UART XR17V354
►4 independently implemented serial channels
►RS232, RS422 full duplex, RS485 half duplex, per channel configurable

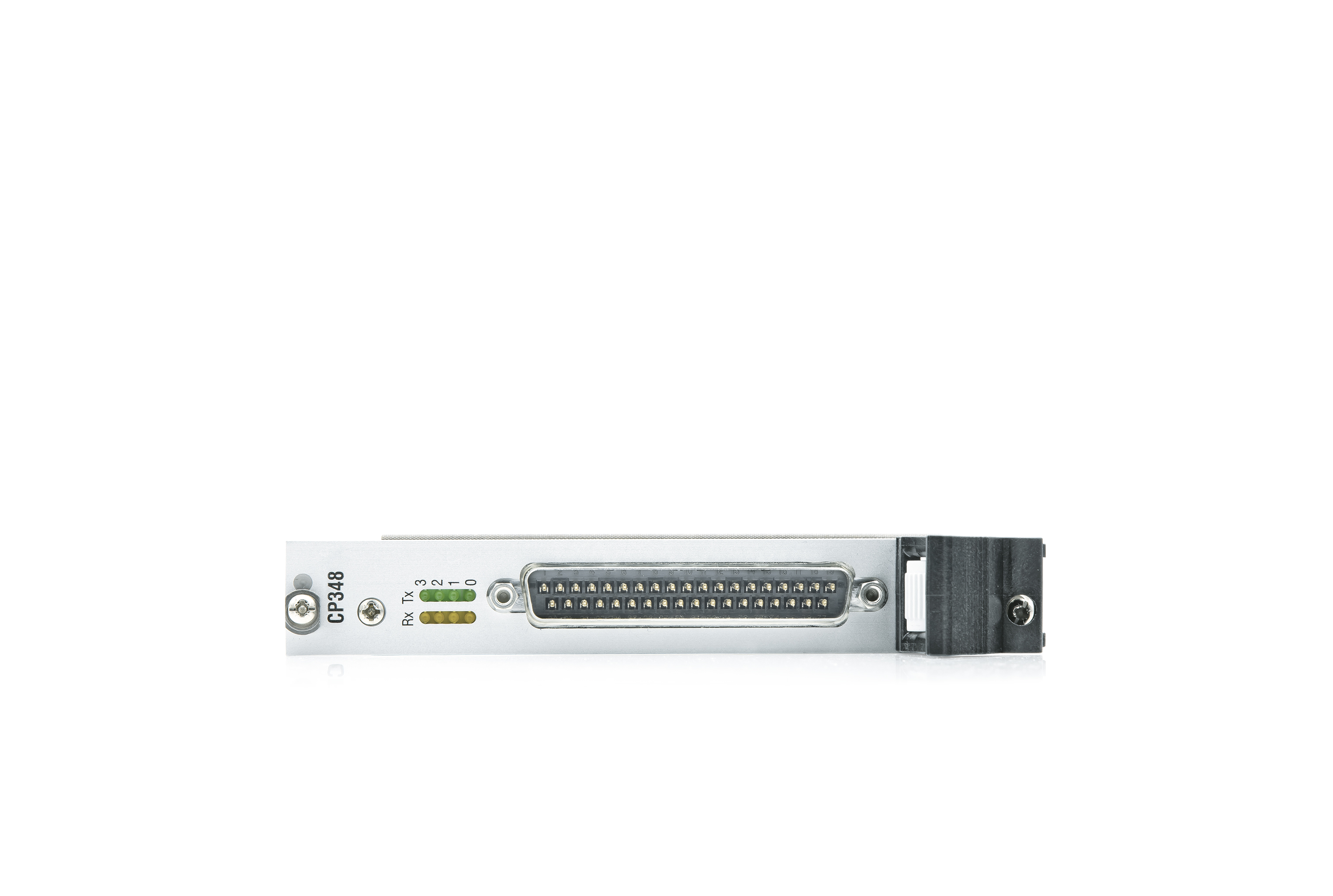

►37PIN DSUB connector
►Isolation 2 kV between I/O and system
►Windows® 10, Linux®, VxWorks®, other OS on request

Standard and extended temperature versions are available. A serial port adapter cable DSUB37 to 4x DSUB 9 is provided as accessory.

CP348 connectors and API are compatible to CP347, just a driver update is needed.

Eigenschaften

Controller Quad UART XR17V354
Characteristics 16550 UART compatible
Channels 4 independently controlled
Function RS232, RS422, RS485
Frontpanel 37-pin DSUB connector
