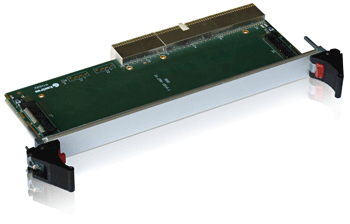

CP-RIO6-M
4TE Rear I/O Interface für eine 6HE CompactPCI Karte (CP6002 & CP6016)
Spezifikationen
- Single Slot (4HP) # Konnektoren für 2 lokale SATA Medien # Von -40 bis +85° C, abhängig vom Festplattentyp
Das CP-RIO6-M ist ein 4TE Rear I/O Modul für Kontrons CompactPCI Prozessorboards CP6001, CP6002 & CP6016. Es entspricht Kontrons RTM Pinout Spezifikation. Das RTM bietet 2 SATA Disk Sockel für RAID0- und RAID1-Betrieb.
Eigenschaften
| Additional | Two SATA disk sockets for RAID0 and RAID1 |
| Ethernet | n/a |
| Flash Disk | CompactFlash possible with SATA-CF converter |
| Hard Disk | Max. two local SATA drives |
| Keyboard | n/a |
| Mouse | n/a |
| SATA | Two SATA connectors for local disks |
| Serial | n/a |
| Temperature/Humidity | up to -40 to +85°C (depending on hard disk), 93% rel. humidity |
| USB | n/a |
| Video Output | n/a |
Downloads
Manuals
CP-RIO6-M Introduction Manual
[ 1031-2494_20_sk-man-cp-rio6-m_introduction.pdf, 98.45 KB, Sep.11.2017 ]
CP-RIO6-M Users Manual
[ 1031-2494_20_sk-man-cp-rio6-m.pdf, 206.7 KB, Sep.11.2017 ]
General Safety Instruction
[ general-safety-instructions.pdf, 560.72 KB, Jan.04.2021 ]
Technical Info
ESD Protection Guidelines
[ 29789_02_sk-man-esd_protection.pdf, 134.59 KB, Nov.27.2013 ]
Services
Kontron Services Brochure
[ kontron-services-brochure.pdf, 8.9 MB, Dec.17.2020 ]
