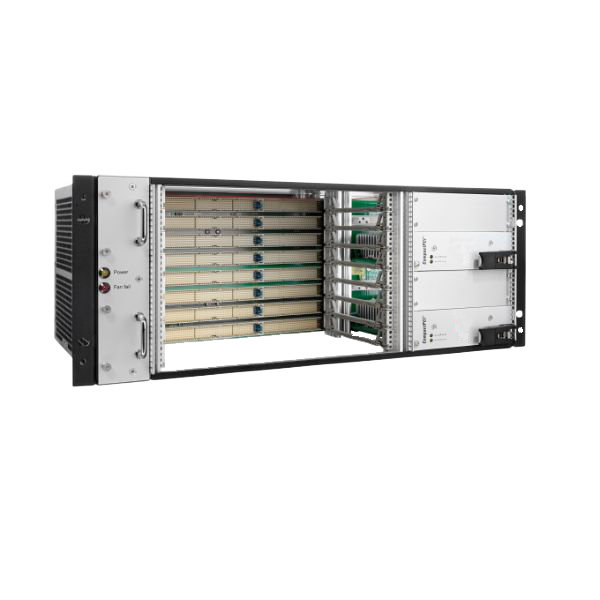

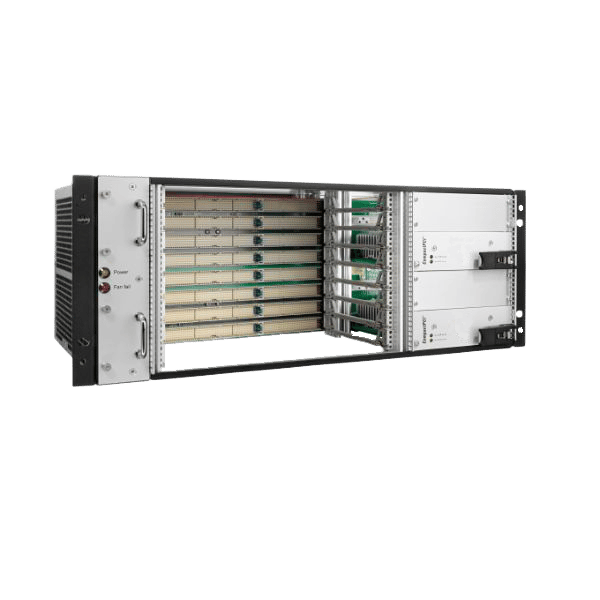

CompactPCI 4U 84HP 8 Slots

High-density 4U CompactPCI rack chassis offering eight slots with dual hot-swap power supplies and robust EMC design—ideal for demanding industrial and data center applications.

8-slot, 64-bit / 33 MHz, system slot left, rear I/O
Dual 300 W hot-swappable PSUs, 90–264 VAC
Outputs: 3.3 V/40 A, 5 V/40 A, +12 V/10 A, –12 V/2 A (max 300 W)
Removable fan tray, 6 fans (36.4 CFM each), dust filter, LEDs
4U × 84HP × 283 mm, 19″ rack-mount

Produkt anfragen Datenblatt herunterladen

Produktinformationen

This full-width 4U 84HP chassis brings large card capacity and industrial-grade reliability to CompactPCI systems. With redundant power, advanced cooling, and robust construction suited for harsh environments, it's a top choice for demanding mission-critical installations.

Technischer Support

Technische Daten

Features	8-slot, 64-bit CompactPCI backplane with rear I/O and dual P47 connectors for high connectivity. Redundant dual 300 W hot-swap power supplies ensure maximum uptime. Efficient removable fan tray with dust filter and monitoring LEDs for easy maintenance. Quiet operation via six low-noise fans (29 dB(A)). Ultra-rugged design, fully tested and compliant with military and railway standards.
