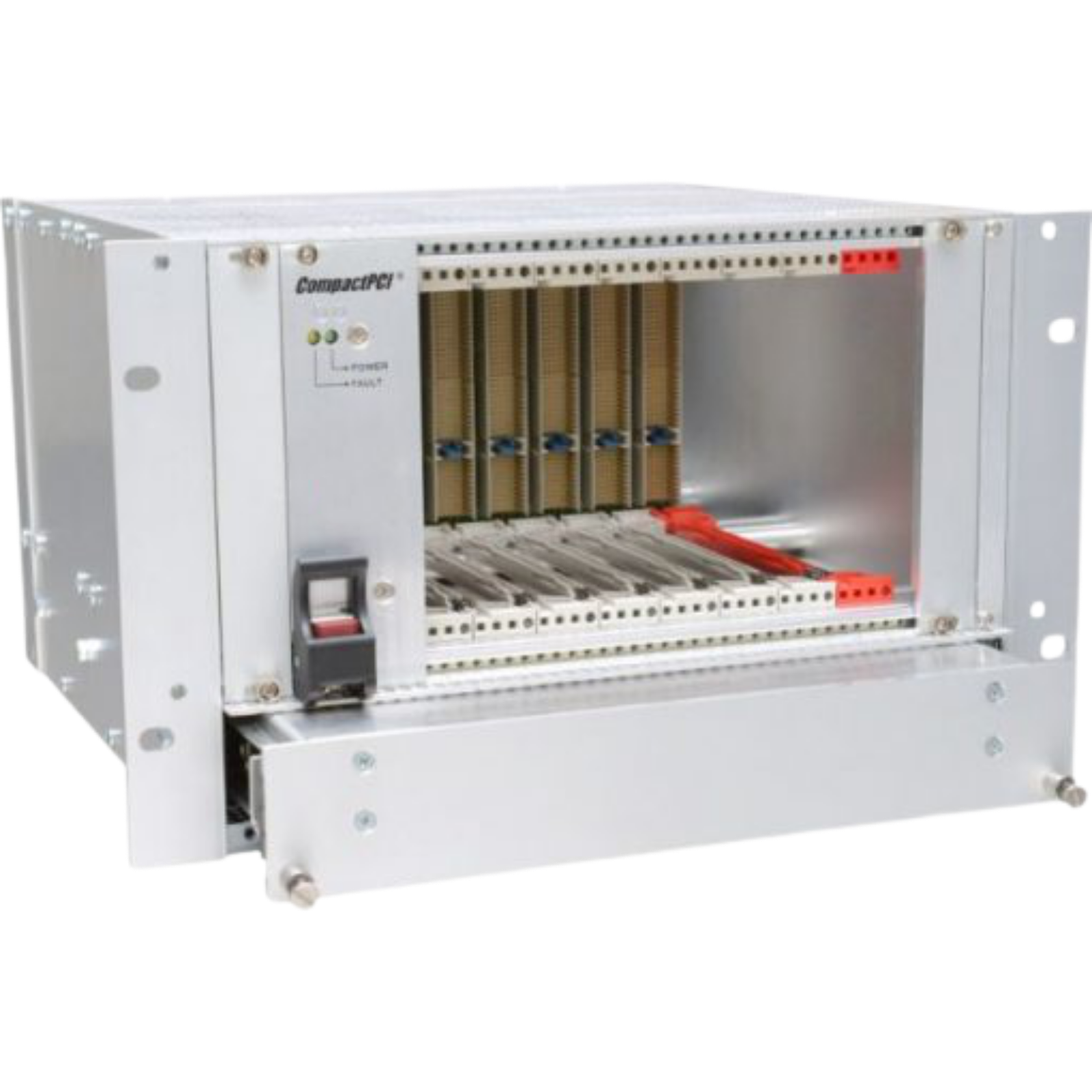

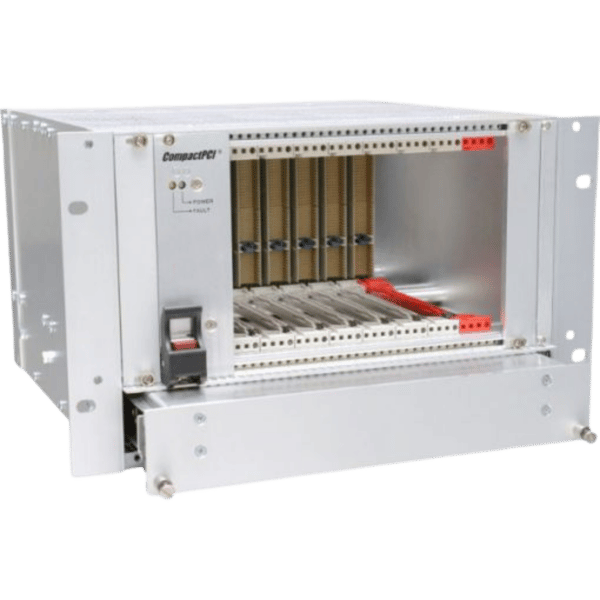

CompactPCI 4U 50HP 8 Slots

High-performance 4U CompactPCI rack-mount chassis featuring an 8-slot 3U backplane (5 V I/O), optimized for rugged, EMC-sensitive environments in industrial or embedded use cases.

8 slots, 32-bit / 33 MHz, system slot right, rear I/O
300 W PSU, 90–264 VAC
Outputs: 3.3 V/40 A, 5 V/40 A, +12 V/10 A, –12 V/2 A
Removable 1U fan tray, 2 × 92 mm fans, bottom-to-top airflow
4U × 50HP × ~283 mm, rack-mount

Produkt anfragen Datenblatt herunterladen

Produktinformationen

This CompactPCI system platform delivers high-density card performance in a 4U rack-mount format with a reliable 300 W power source and effective thermal management. Rugged and EMC-optimized, it’s tailored for mission-critical industrial and embedded applications where durability and reliability are paramount.

Technischer Support

Technische Daten

Features	Eight-slot backplane with 5 V I/O for maximum card density. Robust 300 W cPCI power supply, wide-range AC input. Optimized cooling via a 1U, bottom-to-top airflow fan tray. Designed for harsh environments, with industrial IEEE/IEC compliance and EMC enhancements. Ready to use out of the box, fully assembled, wired, and tested
